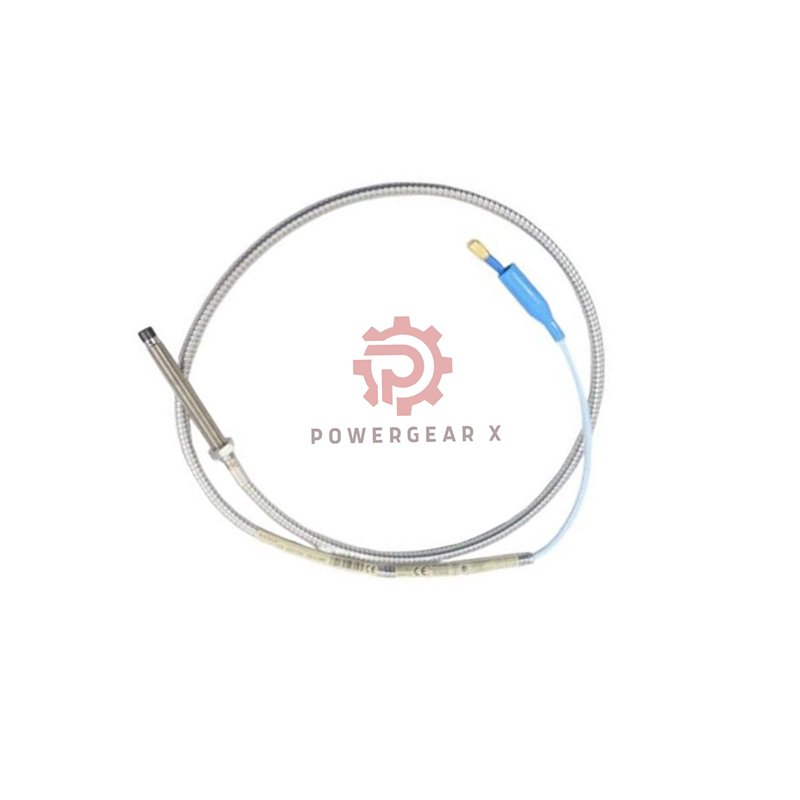

Bently Nevada 330102-00-48-10-02-05 | Armored 8mm Vibration Probe 3/8-24 UNF

Heavy-Duty Armored Vibration Sensor

This Bently Nevada 3300 XL 8mm Proximity Probe is built for tough conditions. It features a protective armored case and a 3/8-24 UNF thread. This model is ideal for environments with physical risk. It comes with global hazardous area certifications. Protect your machinery with this robust sensor.

Superior Protection & Reliability

• Armored Defense: External armor guards against impact and abrasion.
• Imperial Thread: 3/8-24 UNF thread for compatibility with many machines.
• Global Safety Certs: Pre-approved for CSA, ATEX, and IECEx zones.
• Trusted Accuracy: Delivers precise vibration data for critical analysis.
• Durable Build: Full stainless steel construction ensures long-term operation.

Complete Model Specification: 330102-00-48-10-02-05

• Brand: Bently Nevada
• Core Type: 330102 (3300 XL 8mm Probe, with Armor, 3/8-24 UNF)
• Detailed Configuration:
  • -00: Unthreaded Length = 0.0 inch
  • -48: Case Length = 4.8 inch (122 mm)
  • -10: Cable Length = 1.0 Meter
  • -02: Connector = Standard ClickLoc
  • -05: Approvals = CSA, ATEX, IECEx

Key Technical Performance Data

• Measurement Range: Linear range of 2.0 mm (80 mils).
• Optimal Gap: Set to 1.27 mm (50 mils) from the target shaft.
• Electrical Property: DC Resistance: 7.59 Ω ± 0.5 Ω.
• Temperature Limits: Standard operation from -52°C to +177°C.
• Construction: Armored SST case, PPS tip, Viton® seal.
• Mounting: 3/8-24 UNF thread. Max engagement 0.563 inch.
• Environmental: Resistant to humidity and moisture.

Certified for Global Hazardous Areas

This armored probe carries full international certifications. It is approved for Class I, Zone 0/2 and Division 2 areas. Suitable for Groups A, B, C, D. This allows installation in oil & gas, chemical, and other high-risk plants.

Package & Guarantee

• One Bently Nevada 330102-00-48-10-02-05 armored probe.
• Supplied in original factory condition.
• Covered by a Comprehensive 12-Month Warranty.
• Fast global delivery via FedEx, UPS, or DHL.

Expert FAQ & Selection Advice

Product Differences

• Q: What is the main difference between 330102 and 330103?
• A: The 330102 model has an external armored sleeve for physical protection and uses a 3/8-24 UNF thread. The 330103 has a standard case and an M10x1 metric thread.
• Q: What does “with armor” mean for installation?
• A: The armor is a tough outer shell. It does not change the electrical function. It protects the probe body from being hit, scratched, or crushed during operation or maintenance nearby.

Application & Compatibility

• Q: My machine has an M10 hole. Can I use this 3/8-24 probe?
• A: No, the threads are different. You need an adapter or must re-tap the hole. It is easier to select the correct M10x1 threaded probe model from our range.
• Q: Is the 4.8-inch case a common size?
• A: Yes, 4.8 inches (122mm) is a standard length for many Bently Nevada installations. It provides a good balance between strength and fitting into common mounting spaces.

Ordering & Logistics

• Q: How do I order and what are the delivery times?
• A: For the 330102-00-48-10-02-05, contact us for stock. We offer a 12-month warranty and ship worldwide with FedEx, DHL, and UPS. Email sales@powergearx.com or message on WhatsApp (+86 18030005825) for a quick quote and lead time.
