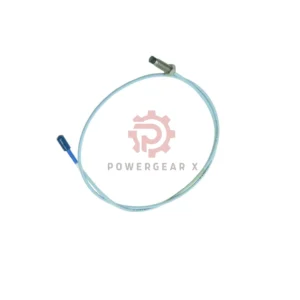

Bently Nevada 330102-00-40-50-02-00 – 3300 XL 8 mm Proximity Probe with 5m Cable

Bently Nevada 330102-00-40-50-02-00 – 3300 XL 8 mm Proximity Probe

Manufacturer: Bently Nevada

Product Type: 3300 XL 8 mm Probe

Warranty: 12 Months | Shipping: FedEx / UPS / DHL

Inquiries:
sales@powergearx.com |
+86 18030005825

Key Highlights

• High-precision 8 mm proximity probe
• Reliable performance up to +177°C (standard)
• Extended version up to +218°C for tip and +260°C for cable
• 5-meter armored cable for harsh industrial environments
• Viton® O-ring pressure seal for reliable operation

Model Breakdown

• 330102 → 3300 XL 8 mm Probe
• Thread: 3/8-24 UNF, armored
• 00 → 0 in unthreaded length
• 40 → 4.0 in case length
• 50 → 5.0 m total length
• 02 → Miniature ClickLoc connector
• 00 → No agency approval

Technical Data

• Probe Resistance: 8.73 ± 0.50 Ω (5 m)
• Gap Range: 0.25–2.3 mm (–1 to –17 Vdc)
• Recommended Gap: –9 Vdc ≈ 1.27 mm
• Linear Range: 2 mm (80 mils)
• Field Wiring: up to 305 m (1000 ft)

Material & Build

• Tip: Polyphenylene Sulfide (PPS)
• Case: AISI 303 / 304 Stainless Steel
• Thread: 3/8-24 UNF, 0.563 in engagement
• Weight: 323 g/m (11.4 oz)

Operating Conditions

• Temperature (Standard): –52°C to +177°C
• Temperature (Extended): –52°C to +218°C (tip), +260°C (cable)
• Humidity: 93% RH, <3% change in ASF
• Pressure Seal: Viton® O-ring, differential type

Compliance & Safety

• Intrinsically Safe: Class I, Zone 0 (AEx/Ex ia IIC T5–T1)
• Non-incendive: Class I, Zone 2 (AEx/Ex nA IIC T5–T1)
• Compatible with zener barriers and galvanic isolators

Product Advantages

• Accurate vibration and displacement sensing
• Stable output across extreme temperatures
• Durable PPS tip and stainless-steel housing
• Compact design for limited-space installations
• Compatible with 3300 XL Proximitor sensors

Professional FAQ

• Q1: Can this probe work with other sensor lengths?
• A1: The 5 m version is matched to the 5 m Proximitor sensor for precise calibration.
• Q2: What happens if the gap exceeds 2.3 mm?
• A2: The output becomes nonlinear, affecting accuracy. Always maintain within the specified range.
• Q3: How to ensure seal reliability in high pressure?
• A3: Use the Viton® O-ring design and avoid over-tightening; contact us for pressure testing if required.
• Q4: Does temperature affect accuracy?
• A4: Minimal effect within rated limits; extended models handle up to 260°C safely.
• Q5: What cable type is best for long runs?
• A5: Use shielded triad cable (16–24 AWG) to reduce signal loss and noise interference.
