Bently Nevada – 330102-00-32-10-01-05 – Proximity Probes

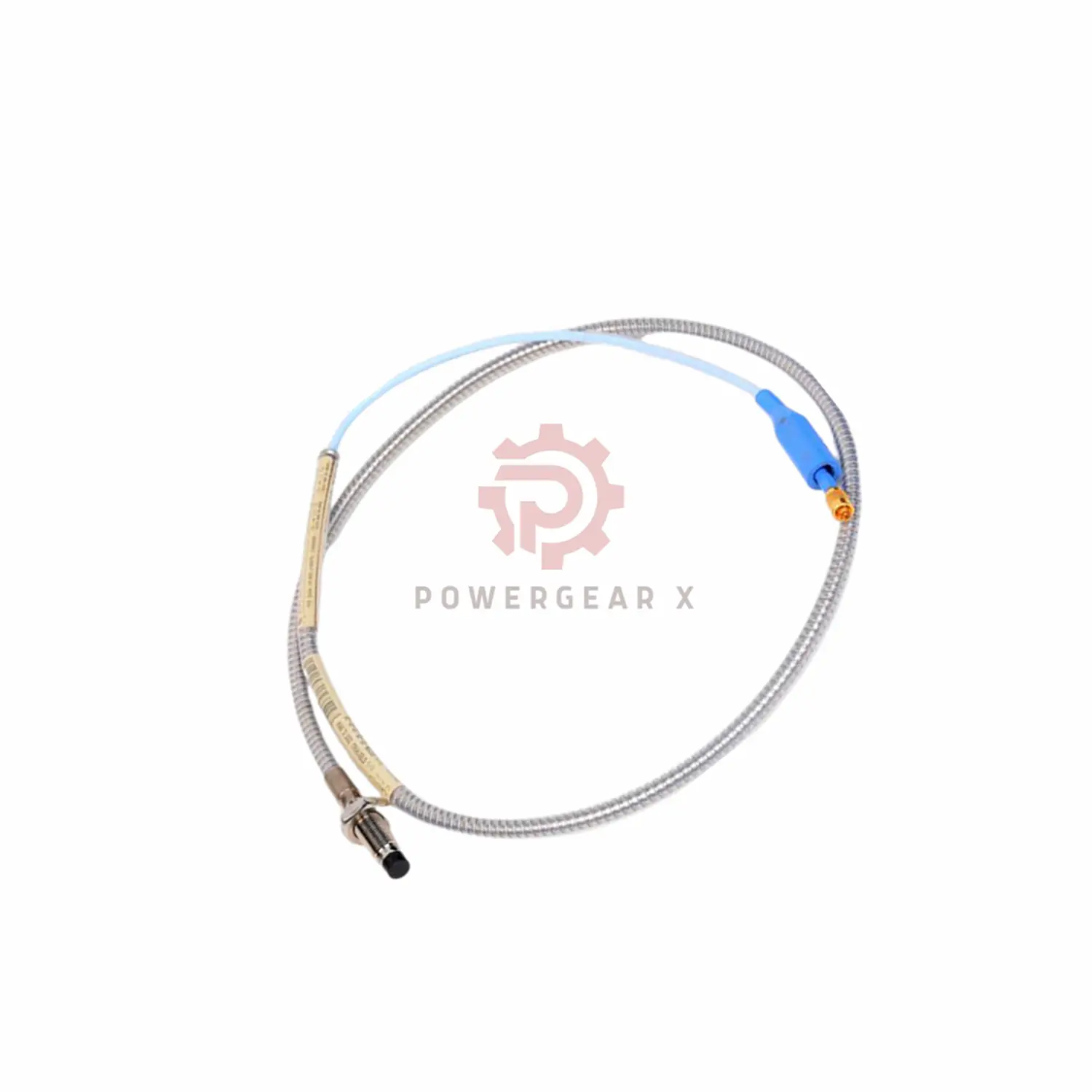

Bently Nevada 3300 XL 8mm Proximity Probe 330102-00-32-10-01-05

Key Specifications

Measuring Range: 0.25-2.3mm (10-90 mils)

Output Signal: -1V to -17V DC linear range

Tip Material: PPS polymer for chemical resistance

Accuracy: ±1% full scale at 25°C

Frequency Response: 0-10kHz (±3dB)

Ingress Protection: IP67 rated

Vibration Resistance: 20g peak (10-2000Hz)

Model Breakdown (330102-00-32-10-01-05)

330102: 8mm probe with armor

00: Unthreaded length 0 inch

32: Case length 3.2 inch

10: Cable length 1.0 meter

01: ClickLoc connector

05: CSA/ATEX/IECEx certified

Industrial Solutions

Prevent turbine failures in power plants

Monitor pump vibrations in oil refineries

Detect compressor misalignment

Predict bearing wear in paper mills

Measure shaft displacement offshore

Installation Guide

Mount with 3/8-24 UNF thread

Set gap at 1.27mm for -9V output

Use shielded triad cable (24 AWG max)

Max wiring distance: 305 meters

Seal with Viton O-ring

Shipping & Packaging

Includes probe and connector protector

Global delivery via FedEx/UPS/DHL

12-month manufacturer warranty
