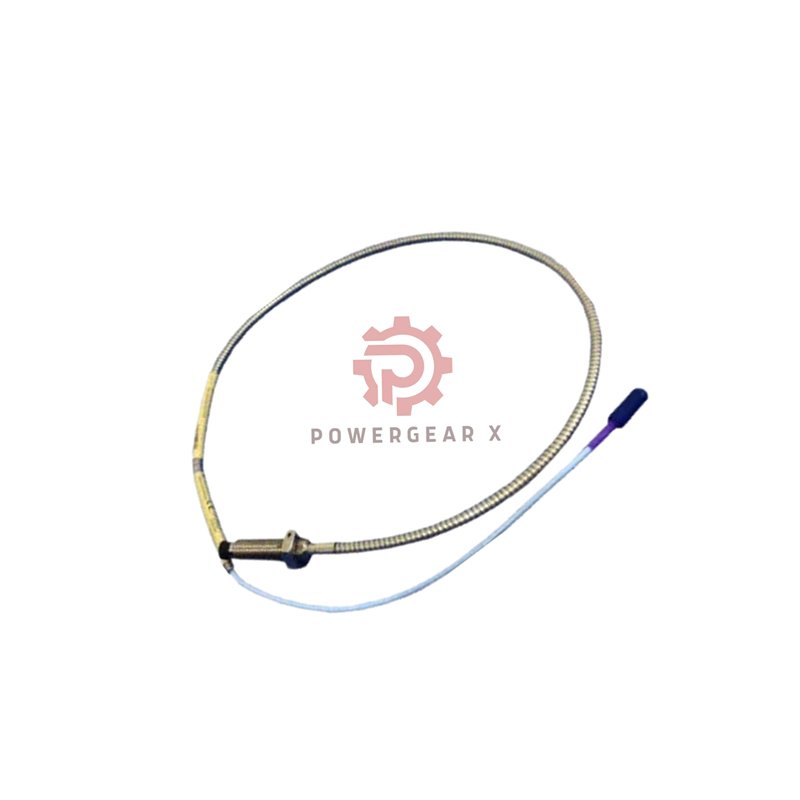

Compact 8mm Probe with Extra-Long 9-Meter Cable
The Bently Nevada 330102-00-12-90-02-05 offers unique versatility. It combines a short 1.2-inch case with a very long 9-meter armored cable. This 8mm probe is perfect for applications where the monitoring point is far from the sensor. It delivers precise vibration data for large machinery and complex installations.
Key Features
- Extra-Long Reach: 9-meter armored cable for distant monitoring points.
- Compact Case: Short 1.2-inch body fits tight spaces easily.
- Global Certifications: CSA, ATEX, and IECEx approvals for worldwide use.
- Small 8mm Tip: Ideal for monitoring various shaft sizes accurately.
- Robust Design: Stainless steel construction with armored cable protection.
Product Configuration Details
Manufacturer Details
- Brand: Bently Nevada
- Series: 3300 XL Monitoring System
- Full Model Number: 330102-00-12-90-02-05
Model Number Breakdown
- 330102: 8mm Armored Probe, 3/8-24 UNF Thread
- -00: Unthreaded Length = 0.0 inches
- -12: Case Length = 1.2 inches
- -90: Cable Length = 9.0 meters (29.5 feet)
- -02: Connection = ClickLoc, Standard Cable
- -05: Approvals = CSA, ATEX, IECEx
Technical Specifications
Electrical Performance
- Probe Size: 8mm Diameter
- Thread Type: 3/8-24 UNF
- DC Resistance: 9.87 ± 0.50 Ω (9m length)
- Power Supply: -17.5 Vdc to -26 Vdc required
- Output Resistance: 50 Ω
- Current Draw: 12 mA maximum
Mechanical & Environmental
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Pressure Seal: Viton O-ring design
- Temperature Classes: T1 to T5 available
- Hazardous Area: Certified for Zone 0/1/2 with barriers
Service & Support
- Warranty Coverage: Full 12-month manufacturer warranty
- Shipping Methods: Fast delivery via FedEx, UPS, or DHL
- Certifications: CSA, ATEX, IECEx international approvals
Expert Questions & Answers
Product Selection
Q: Why would I choose a short case with a very long cable?
A: This configuration is ideal when mounting space is limited but the monitor is far away. Common in large turbines, generators, or complex machinery layouts.
Q: What do the CSA, ATEX, and IECEx approvals mean?
A: These are major international safety certifications. CSA is for North America, ATEX for Europe, and IECEx for global hazardous location use.
Installation & Use
Q: How do I handle 9 meters of armored cable during installation?
A: Route carefully using cable trays. Coil excess loosely in a protected location. Maintain minimum bend radius and avoid sharp edges.
Q: What power supply voltage is best for this probe system?
A: For best performance, use -23 Vdc to -26 Vdc. Avoid voltages more positive than -23.5 Vdc to prevent reduced measurement range.
Compatibility & Support
Q: Is this 9-meter probe compatible with all 3300 XL monitors?
A: It requires matching with the appropriate Proximitor sensor. Consult your monitor manual or contact us for specific compatibility guidance.
Order with Confidence Today
Contact our team for pricing, stock availability, and technical specifications.
