Product details
Product Description

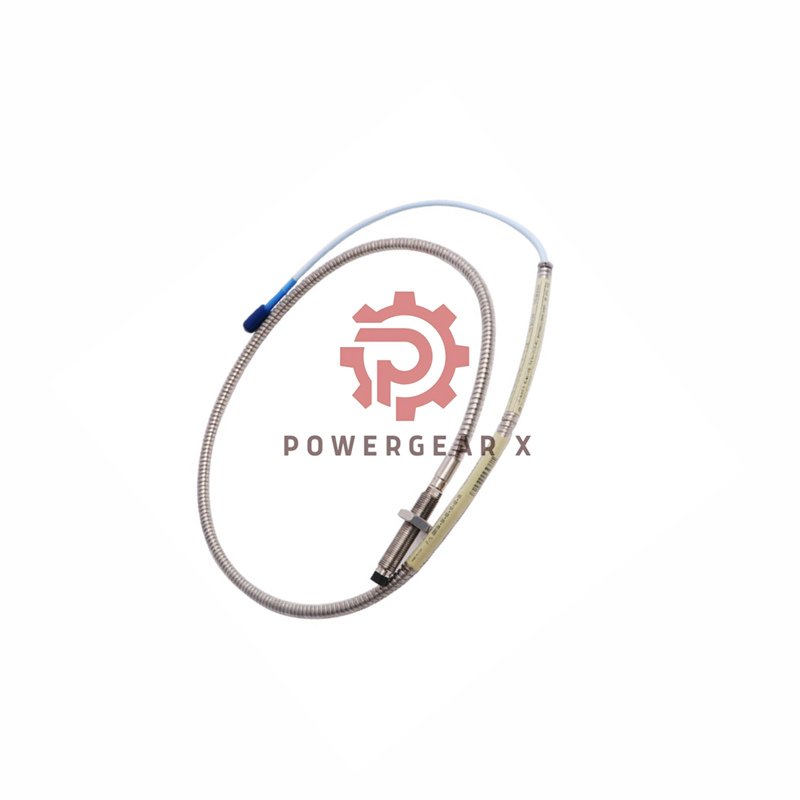

This is the Bently Nevada 330102-00-10-10-01-05. It is an 8mm proximity probe. It has protective armor covering. This probe measures machine vibration and position. It is built for tough industrial environments. The probe comes with important safety approvals.
Main Features
- Protective Armor: Metal armor protects the cable from damage.
- Hazardous Area Approval: Includes ATEX, IECEx, and CSA certifications.
- Rugged Construction: Made with stainless steel and PPS plastic.
- Secure Connection: Uses ClickLoc connector with a protective cover.
- Wide Temperature Range: Works from -52°C to +177°C.
- Pressure Sealed: Viton O-ring seals against pressure differences.
- Easy Installation: Standard 3/8-24 UNF thread for simple mounting.
Technical Specifications
- Brand & Model: Bently Nevada 330102-00-10-10-01-05
- 330102: 3300 XL 8mm Probe with Armor
- -00: Unthreaded Length = 0 inch
- -10: Case Length = 1.0 inch
- -10: Cable Length = 1.0 meter
- -01: Connector = ClickLoc with protector
- -05: Approvals = CSA, ATEX, IECEx
- Electrical Data:
- Probe Resistance: 7.59 Ω ± 0.50 Ω
- Linear Range: 0.25 to 2.3 mm
- Recommended Gap: 1.27 mm (50 mils)
- Output: -1 to -17 Vdc
- Mechanical Data:
- Thread: 3/8-24 UNF
- Max Thread Engagement: 0.563 inch
- Weight: 323 g/m
- Tip Material: PPS Plastic
- Case Material: Stainless Steel
- Environmental Ratings:
- Temperature: -52°C to +177°C
- Extended Range: Up to +218°C
- Humidity: < 3% change at 93% RH
- Pressure Seal: Viton O-ring
- Certifications:
- ATEX / IECEx Certified
- CSA Approved
- Class I, Zone 0 & 2
- Hazardous Area Compliant
Package Contents
- One Bently Nevada 330102-00-10-10-01-05 probe
- 12-month manufacturer warranty
- Worldwide shipping via FedEx, UPS, DHL
Frequently Asked Questions
What does “with armor” mean?
It means the probe cable has a metal braid or tube covering. This protects against physical damage.
Where is this probe typically used?
In hazardous areas like oil refineries, chemical plants, and gas processing facilities.
Can I cut the cable to a shorter length?
No. The probe is calibrated for its specific 1-meter length. Cutting will affect performance.
What is the connector protector for?
It protects the ClickLoc connector from dirt, moisture, and damage during installation.
What’s a good practice for storage?
Store in a dry place at room temperature. Avoid bending the cable sharply.
