Product details
Product Overview

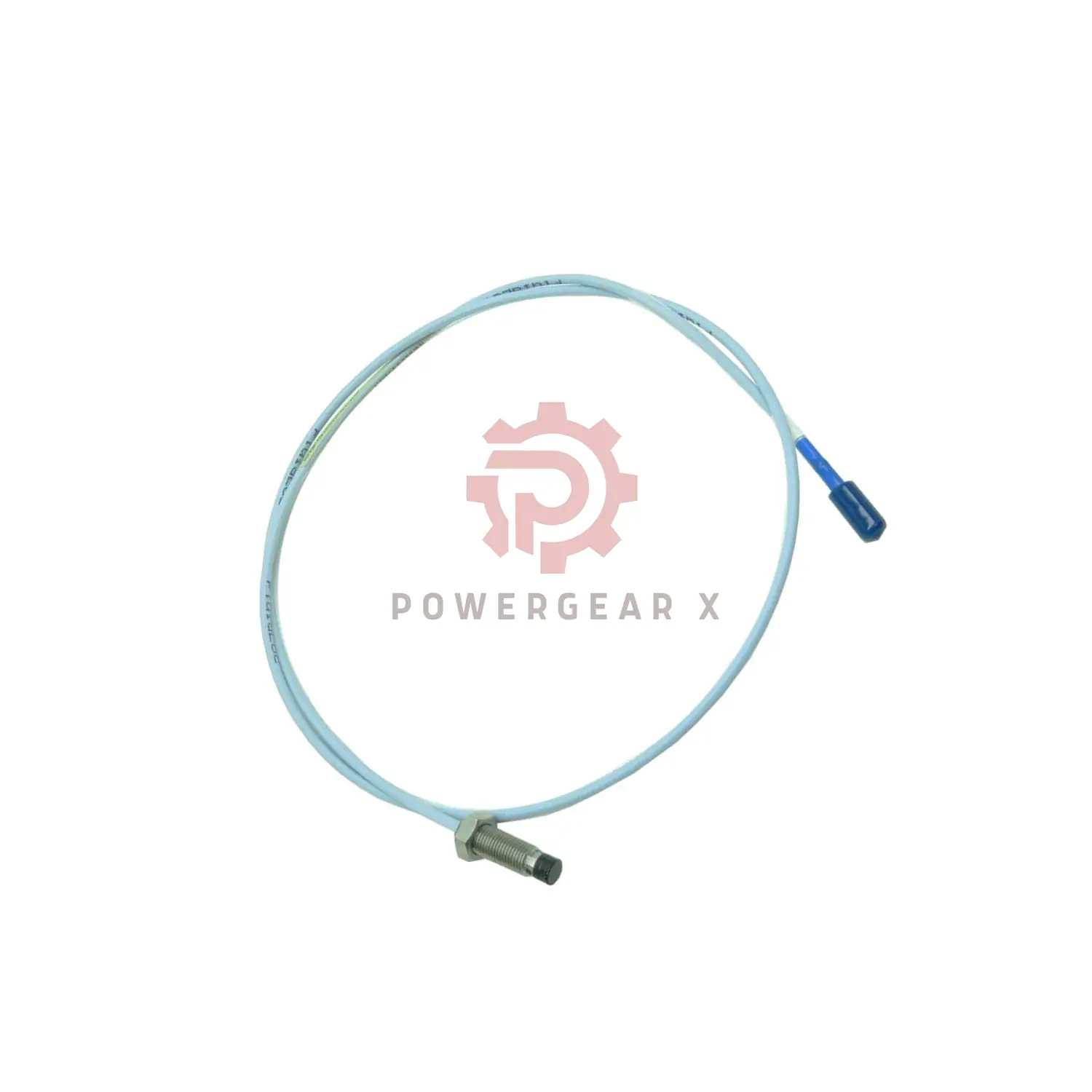

The Bently Nevada 330101-39-63-10-12-05 is an 8mm proximity probe. It is part of the 3300 XL monitoring system. This probe measures vibration and position in machinery. It features durable construction for industrial use. Questions? Contact sales@powergearx.com or +86 18030005825.
Part Number Breakdown
- Base Model: 330101 (3300 XL 8mm Probe)
- Unthreaded Length: 39 = 3.9 inches
- Case Length: 63 = 6.3 inches
- Total Length: 10 = 1.0 meter (3.3 feet)
- Connector Type: 12 = Miniature coaxial ClickLoc
- Cable Type: FluidLoc cable option
- Approvals: 05 = CSA, ATEX, IECEx Certified
Technical Specifications
- Manufacturer: Bently Nevada
- Part Number: 330101-39-63-10-12-05
- Probe Diameter: 8 mm
- Thread Type: 3/8-24 UNF (without armor)
- DC Resistance: 7.59 Ω ± 0.50 Ω (1.0m length)
- Linear Range: 2 mm (80 mils)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Recommended Gap: -9 Vdc (~1.27 mm / 50 mils)
- Cable Capacitance: 69.9 pF/m typical
- Field Wiring: 0.2-1.5 mm² (16-24 AWG)
- Max Wiring Length: 305 meters (1,000 feet)
- Probe Tip Material: PPS Plastic
- Case Material: AISI 303/304 Stainless Steel
- Weight: 323 g/m (11.4 oz/ft)
Temperature & Environmental Ratings
- Standard Operating Temp: -52°C to +177°C
- Extended Temp Range: -52°C to +218°C (tip)
- Cable/Connector Temp: -51°C to +260°C
- Pressure Seal: Viton® O-ring design
- Humidity Effect: <3% ASF change in 93% RH
- Country of Origin: Made in U.S.A.
Key Features & Benefits
- 8mm diameter provides rugged physical protection
- Patented TipLoc molding for strong tip-body bond
- CableLoc design offers 330N (75 lbf) pull strength
- FluidLoc cable prevents internal fluid leakage
- Miniature coaxial ClickLoc connector for secure connection
- Thicker PPS encapsulation protects probe coil
- CSA, ATEX, and IECEx safety approvals included
- Stainless steel case resists corrosion and damage
Accuracy & Performance Data
- Standard System Accuracy: ±5% (5/1m system)
- 9m System Accuracy: ±6.5%
- Extended Temp Accuracy: ±6.5%
- Deviation from Straight Line: <±0.025mm (±1 mil)
- 9m System DSL: <±0.038mm (±1.5 mil)
Shipping & Warranty Information
- Package includes: 1 x 330101-39-63-10-12-05 probe
- 12-month manufacturer warranty coverage
- International shipping via FedEx, UPS, DHL
- Secure packaging with protective materials
- Export documentation provided when needed
Professional FAQ
What is the unthreaded length of this probe?
The unthreaded section measures 3.9 inches (99 mm).
What makes the FluidLoc cable special?
It prevents oil and liquids from leaking through the cable interior.
What is the recommended gap setting?
Set the gap to achieve -9 Vdc (approximately 1.27 mm from target).
Can this probe handle high temperatures?
Yes, the extended range version handles up to 218°C at the tip.
What safety approvals does it have?
It carries CSA, ATEX, and IECEx certifications for hazardous areas.
