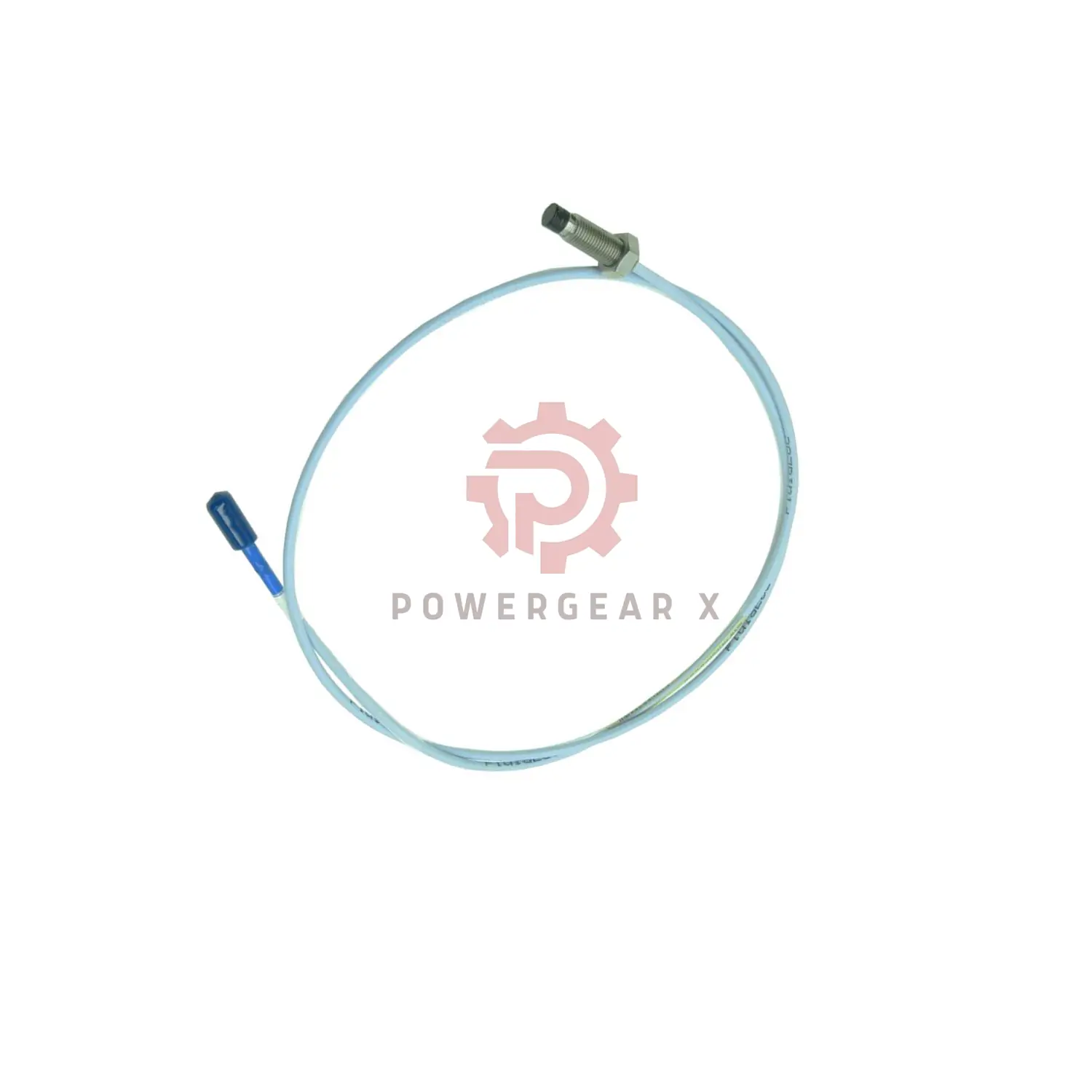

Bently Nevada 330101-33-53-10-12-05 | Industrial Vibration Probe USA

Bently Nevada 330101-33-53-10-12-05 Overview

• Manufacturer: Bently Nevada (Made in U.S.A)
• Model: 330101-33-53-10-12-05 | 3300 XL 8 mm Probe
• Thread: 3/8-24 UNF | No armor build
• Warranty: 12 months standard coverage
• Contact: sales@powergearx.com | +86 18030005825

Suffix Breakdown (Indented Tree Structure)

• 330101-33-53-10-12-05
  • 33 → 3.3 in unthreaded length
  • 53 → 5.3 in case length
  • 10 → 1.0 m total length
  • 12 → ClickLoc Mini Coax + FluidLoc cable
  • 05 → CSA / ATEX / IECEx approvals

Core Mechanical Features

• PPS molded tip for high strength and coil protection
• Stainless steel body (AISI 303 / 304)
• Probe weight: 323 g/m (11.4 oz)
• Cable pull strength: 330 N (75 lbf) with CableLoc system
• Pressure seal with Viton O-ring

Electrical & Signal Data

• DC Resistance: 7.59 Ω ± 0.50 at 1 meter
• Capacitance: 69.9 pF/m (typical)
• Recommended field wiring: 16-24 AWG shielded triad
• Max system wiring length: 305 m (1,000 ft)
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil)

Measurement & Operating Ranges

• Linear Range: 2 mm (80 mils)
• Gap Setup: -9 Vdc for radial vibration
• Temperature Range:
  • Standard: -52°C to +177°C
  • Extended: -52°C to +218°C (probe tip)
  • Cable/Connector: up to +260°C
• Humidity: 93% test limit, minimal ASF drift

Performance Advantages

• TipLoc molding resists impact and vibration shock
• FluidLoc prevents oil migration through cable core
• Improved coil protection for harsh environments
• Built for turbines, compressors, gearboxes, and pumps

Shipping & Delivery

• Carriers: FedEx / UPS / DHL worldwide
• Export rated packing for industrial shipment
• Tracking supplied after dispatch

Five Expert FAQ

How do I avoid signal drift in high temperature zones?

Keep cable runs short and use extended temperature versions above 177°C.

Can I use this probe on an older 3300 system?

Yes. Confirm cable length spec and scale factor match to maintain accuracy.

What improves accuracy in gear-driven equipment?

Mount near the bearing load path and verify the gap at -9Vdc before startup.

How to reduce electrical noise around VFD equipment?

Separate power and signal conduits and apply shield grounding on one side only.

What helps prevent oil intrusion in turbine housings?

Select the FluidLoc suffix and inspect seals during annual machine outages.
