Product details
Overview

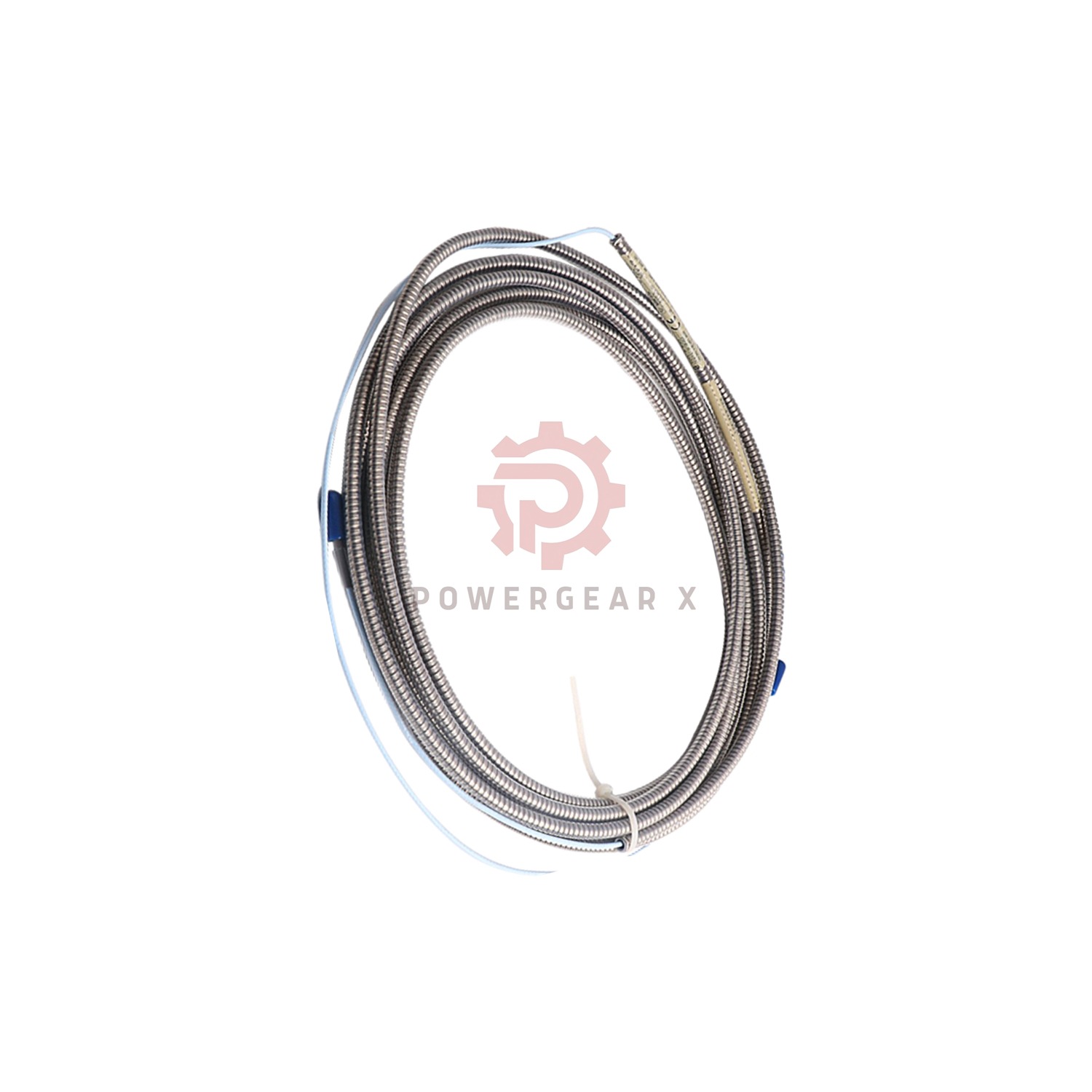

The Bently Nevada 330101-20-35-10-02-CN is a 3300 XL 8 mm probe without armor, made in the U.S.A. It can be accompanied by a Certificate of Origin. The probe and its extension cable feature improvements over previous designs, with a patented TipLoc molding method and CableLoc design. An optional FluidLoc cable can prevent liquid leakage from the machine.
Technical Specification
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330101-20-35-10-02-CN |
| Suffix Meaning | “20”: Unthreaded length of 2.0 in “35”: Overall case length of 3.5 in “10”: Total length of 1.0 meter (3.3 feet) “02”: Miniature coaxial ClickLoc connector with a standard cable “CN”: Country Specific Approval |
| Linear Range | 2 mm (80 mils), starting about 0.25 mm from the target (10 to 90 mils, – 1 to – 17 Vdc) |
| Recommended Gap | – 9 Vdc (approx. 1.27 mm or 50 mils) for radial vibration |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Weight | 323 g/m (11.4 oz) |
| Temperature Range | Standard: – 52°C to + 177°C; Extended: – 52°C to + 218°C (tip), – 51°C to + 260°C (cable and connector) |
| Pressure | Designed to seal differential pressure with a Viton® O – ring |
| Relative Humidity | Less than 3% change in Average Scale Factor (ASF) in 93% humidity for up to 56 days |
Contact Information
For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
