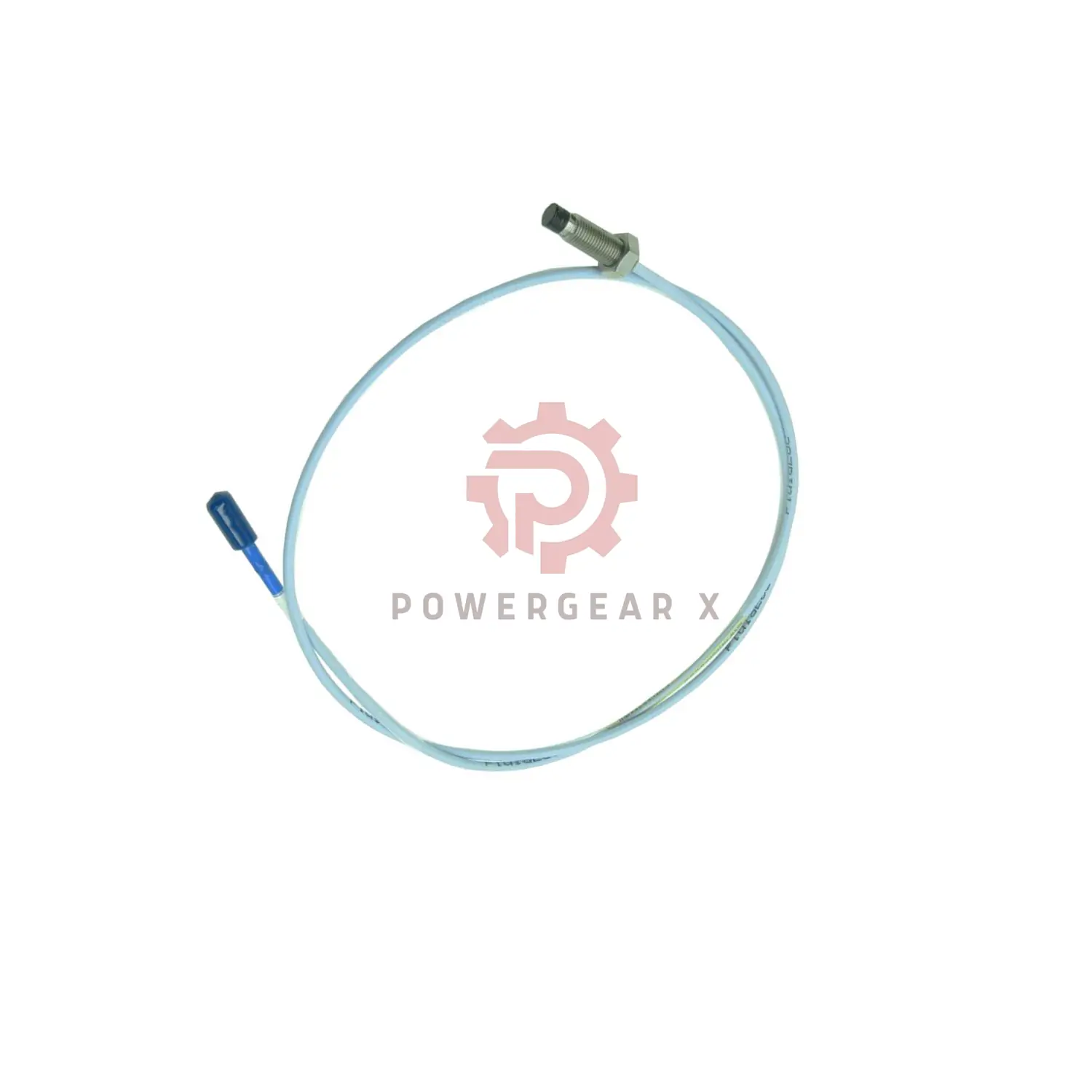

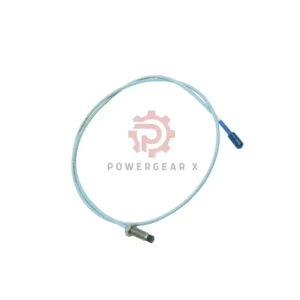

Bently Nevada 330101-00-96-20-02-CN 3300 XL 8mm Probe | USA Made

Product Identity

• Manufacturer: Bently Nevada
• Model: 330101-00-96-20-02-CN
• Series: 3300 XL
• Type: 8 mm Proximity Probe
• Country of origin: United States

Configuration Breakdown

• 330101 – Probe family
  • 8 mm probe diameter
  • 3/8-24 UNF thread
  • No armor
• 00 – Unthreaded length
  • 0.0 inch
• 96 – Case length
  • 9.6 inches
• 20 – Cable length
  • 2.0 meters
  • 6.6 feet
• 02 – Connector type
  • Miniature coaxial ClickLoc
  • Standard cable
• CN – Country specific version

Design Advantages

• Patented TipLoc molding improves probe strength
• CableLoc design resists pull force up to 330 N
• Thick PPS probe tip protects the coil
• Larger body increases impact resistance
• Optional FluidLoc blocks oil migration

Electrical Characteristics

• Nominal probe resistance: 7.88 Ω ± 0.50
• Extension cable capacitance: 69.9 pF per meter
• Recommended field wiring: 16 to 24 AWG
• Maximum field wiring length: 305 meters

Measurement Performance

• Linear measurement range: 0.25 to 2.3 mm
• Total linear span: 2 mm
• Typical output: -1 to -17 VDC
• Recommended radial gap: -9 VDC

Scale Factor & Linearity

• Standard 5 m or 1 m system
  • 7.87 V/mm ± 5%
  • Accuracy from 0°C to +45°C
• Standard 9 m system
  • 7.87 V/mm ± 6.5%
• Deviation from straight line
  • As low as ±0.025 mm

Material & Mechanical Data

• Probe tip material: PPS plastic
• Case material: AISI 303 or 304 stainless steel
• Weight: 323 g per meter

Environmental Limits

• Standard temperature range
  • -52°C to +177°C
• Extended temperature option
  • Probe tip up to +218°C
  • Cable and connector up to +260°C
• Humidity effect: Less than 3% scale change

Pressure & Sealing

• Viton O-ring pressure seal
• Designed for differential pressure sealing
• Pressure testing available on request

Typical Applications

• Radial vibration monitoring
• Shaft displacement measurement
• Turbines and compressors
• Critical rotating machinery

Warranty & Shipping

• Warranty: 12 months
• Shipping methods: FedEx, UPS, DHL
• Factory-sealed industrial packaging

FAQ

• Why choose an 8 mm probe instead of smaller types
  • It offers better resistance to physical damage
• What improves signal stability over long distances
  • Using shielded triad field wiring
• Can this probe handle oil exposure
  • FluidLoc option prevents internal leakage
• What gap setting gives best vibration data
  • Approximately -9 VDC is recommended
• What is a common installation error
  • Exceeding cable length limits
