Bently Nevada 330101-00-40-05-01-00 | 3300 XL 8 mm Probe – High Accuracy Industrial Sensor

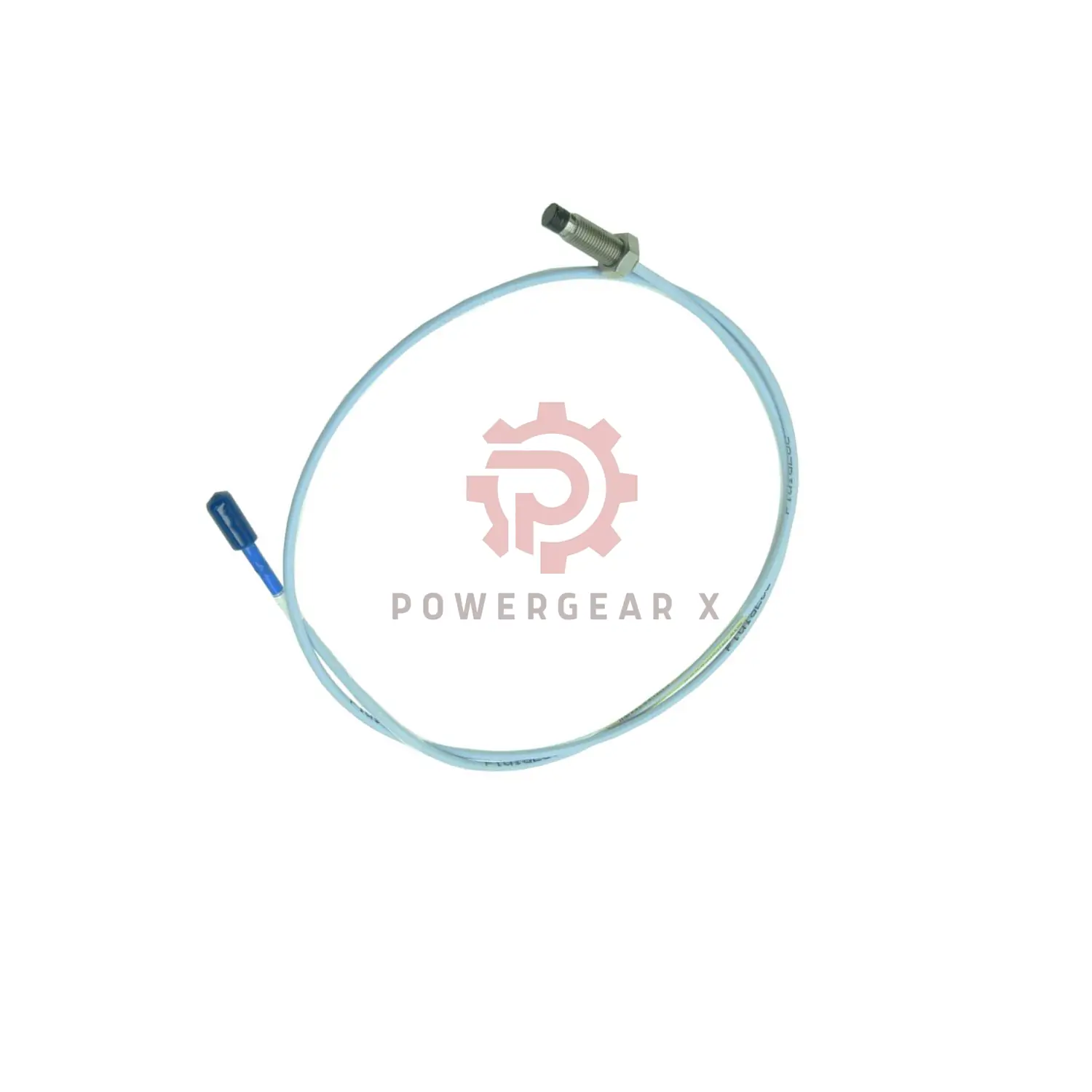

Bently Nevada 330101-00-40-05-01-00 – 3300 XL 8 mm Probe

Manufacturer: Bently Nevada
Product No.: 330101-00-40-05-01-00
Product Type: 3300 XL 8 mm Probe, 3/8-24 UNF Thread, Without Armor
Origin: Made in U.S.A
Warranty: 12 Months
Shipping: FedEx, UPS, DHL
Contact: sales@powergearx.com |
+86 18030005825

• TipLoc™ & CableLoc™ Design: Ensures high pull strength and secure cable connection.
• FluidLoc Option: Prevents oil or liquid leakage inside machinery.
• Probe Coil: 8 mm thick PPS plastic encapsulation for enhanced durability.
• Body Material: AISI 303 / 304 Stainless Steel for corrosion resistance.
• Temperature Range: -52°C to +177°C standard; extended to +218°C for probe tip.
• Pressure Seal: Viton® O-ring to handle differential pressure.
• Linear Range: 2 mm (80 mils), ideal for accurate vibration measurement.
• Scale Factor: 7.87 V/mm (200 mV/mil) ±5% precision.
• Capacitance: 69.9 pF/m typical, stable over long field wiring.
• Resistance (0.5m Probe): 7.45 ± 0.50 Ω

Suffix Configuration:

• 00 – Unthreaded Length: 0.0 in
• 40 – Overall Case Length: 4.0 in
• 05 – Total Length: 0.5 m (1.6 ft)
• 01 – Connector: Miniature coaxial ClickLoc with protector
• 00 – No additional option

Technical Highlights:

• Nominal Probe DC Resistance: 7.45 ± 0.50 Ω
• Field Wiring: Up to 305 m between Proximitor and monitor
• Operating Humidity: <3% variation in scale factor (IEC 68-2-3)
• Deviation (DSL): ±0.025 mm (standard systems)
• Weight: 323 g/m (approx. 11.4 oz)

Key Benefits:

• Reliable shaft vibration monitoring for turbines and compressors
• Improved durability with reinforced PPS probe tip
• Long cable length supported for flexible installation
• Rugged industrial-grade build ensures long service life
• Compatible with standard 3300 XL Proximitor® sensors

FAQ

• Q1: What makes the 3300 XL 8 mm Probe better than previous models?
• A1: It uses TipLoc™ and CableLoc™ technology, offering stronger cable retention and better environmental protection.
• Q2: Can I use this probe in high-temperature areas?
• A2: Yes. The extended temperature version handles up to +218°C at the probe tip.
• Q3: How should I set the gap for radial vibration?
• A3: Recommended setting is -9 Vdc, approximately 1.27 mm (50 mils) from target.
• Q4: What kind of cable is best for field wiring?
• A4: Use 3-conductor shielded triad cable, tinned wiring, up to 305 m total length.
• Q5: How do I prevent leakage through the cable?
• A5: Choose the optional FluidLoc feature—it prevents oil or liquid seepage through cable interiors.
