Product details

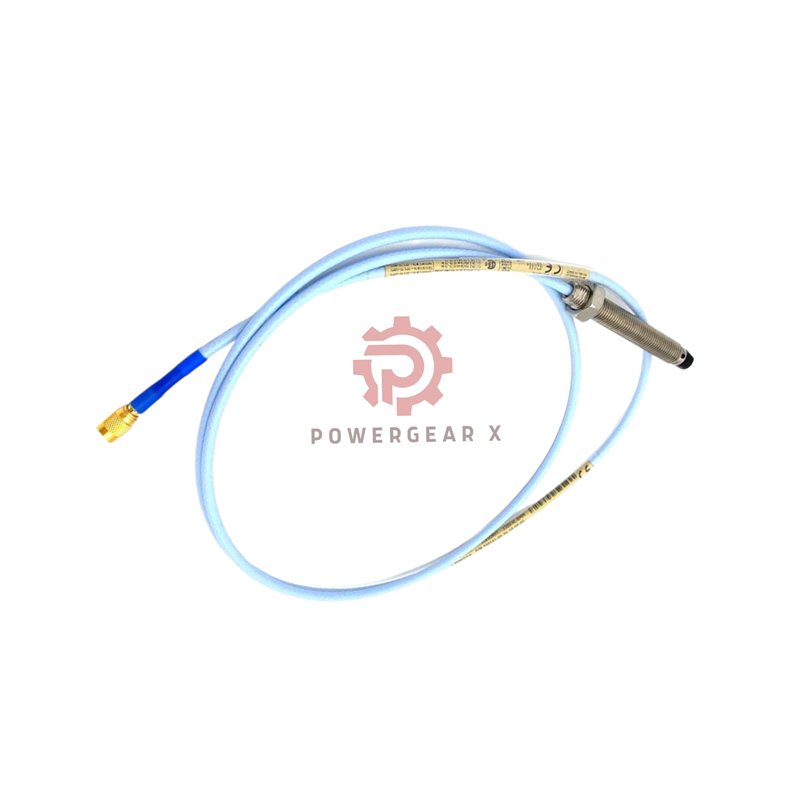

Extra-Long Cable Vibration Monitoring Probe
The Bently Nevada 330101-00-38-90-02-00 features an exceptionally long 9-meter integrated cable. With its 3.8-inch case, this probe is designed for applications requiring significant distance between the measurement point and monitoring equipment. It eliminates the need for extension cables in standard industrial environments.
Need a probe with extended reach? Contact: sales@powergearx.com or +86 18030005825.
Product Configuration & Key Advantages
- Extended Reach: 9-meter integrated cable for long-distance applications
- Medium Case Length: 3.8-inch case provides good mounting stability
- Simplified Installation: No extension cables required for most applications
- Standard Industrial Use: Designed for non-hazardous locations
- Model Number Analysis 330101-00-38-90-02-00:
- 330101: 3300 XL 8mm Probe Base Model
- 00: Unthreaded Length = 0.0 inch
- 38: Case Length = 3.8 inches
- 90: Cable Length = 9.0 meters
- 02: Standard ClickLoc Connector
- 00: No Safety Certifications Required
Technical Specifications
- Product Identification: Bently Nevada 330101-00-38-90-02-00
- Measurement Range: 0.25 mm to 2.3 mm (linear)
- Recommended Gap: 1.27 mm (50 mils)
- Sensitivity (9m System): 7.87 V/mm (±6.5%)
- Electrical Resistance: 9.87 Ω ± 0.50 Ω
- Temperature Range: -52°C to +177°C (standard)
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: Durable PPS Plastic
- Thread Type: 3/8-24 UNF
Installation & Order Information
Installation Notes: The 9-meter cable requires careful routing and support. Maximum thread engagement: 0.563 inches. Follow torque specifications during installation.
System Compatibility: Designed for use with 9-meter Proximitor systems. Not compatible with 5-meter systems.
Certification Details: Standard industrial model without hazardous area certifications.
Shipping & Support: 12-month manufacturer warranty. International shipping available via FedEx, UPS, and DHL.
Frequently Asked Questions
Application Questions
When would I need a 9-meter probe?
The 330101-00-38-90-02-00 is ideal when the monitoring equipment is located far from the measurement point, such as in large industrial plants or distributed monitoring systems.
Can I use this probe with a 5-meter system?
No, this 9-meter probe is specifically calibrated for 9-meter systems. Using it with a 5-meter system will result in measurement inaccuracies.
Technical Questions
Why is the resistance higher for 9-meter probes?
The longer 9-meter cable increases the total wire length, resulting in higher DC resistance. This is accounted for in the system calibration.
How do I handle the long cable during installation?
Carefully uncoil and route the cable to avoid sharp bends. Use cable ties and supports to secure the cable along its path to the junction box.
Ordering & Delivery
How is this long-cable probe packaged?
The 9-meter cable is carefully coiled and secured in a protective shipping container to prevent damage during transit.
What is your return policy for this product?
We offer a standard return policy. Contact our sales team within 30 days of receipt for return authorization and instructions.
