Product details

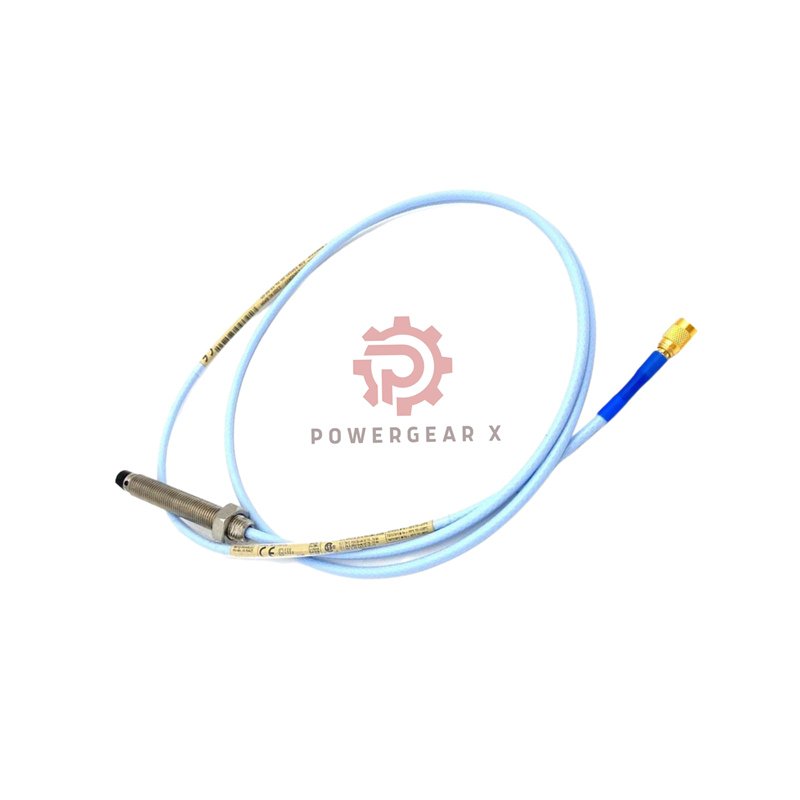

Standard 3-Inch Case Vibration Probe
The Bently Nevada 330101-00-30-05-02-00 offers a balanced 3-inch case length with a practical 0.5-meter cable. This configuration provides reliable vibration monitoring for standard industrial applications where space is not a constraint. The probe delivers accurate measurements without unnecessary complexity.
Need a reliable standard-length probe? Contact: sales@powergearx.com or +86 18030005825.
Product Configuration & Features
- Versatile Case Length: 3-inch case provides stable mounting in standard applications
- Short Connection Cable: 0.5-meter integrated cable for nearby junction box connections
- Standard Industrial Design: No hazardous area certifications required
- Reliable Performance: Consistent accuracy with easy installation
- Model Number Analysis 330101-00-30-05-02-00:
- 330101: 3300 XL 8mm Probe Series
- 00: Unthreaded Length = 0.0 inch
- 30: Total Case Length = 3.0 inches
- 05: Cable Length = 0.5 meters
- 02: Standard ClickLoc Connector
- 00: No Special Certifications
Technical Specifications
- Product Identification: Bently Nevada 330101-00-30-05-02-00
- Measurement Range: 0.25 mm to 2.3 mm (linear)
- Recommended Gap: 1.27 mm (50 mils)
- Sensitivity: 7.87 V/mm (±5% tolerance)
- Electrical Resistance: 7.45 Ω ± 0.50 Ω
- Temperature Range: -52°C to +177°C
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: PPS Plastic
- Thread Specification: 3/8-24 UNF
Installation & Order Details
Installation Guidelines: Standard 3-inch case fits most industrial mounting holes. Maximum thread engagement: 0.563 inches. Follow recommended torque values during installation.
System Compatibility: Compatible with all Bently Nevada 3300 XL monitoring systems.
Application Details: Designed for standard industrial environments without explosive atmosphere requirements.
Shipping & Support: 12-month manufacturer warranty. Global shipping via FedEx, UPS, and DHL carriers.
Frequently Asked Questions
General Questions
What makes the 3-inch case length advantageous?
The 3-inch case on the 330101-00-30-05-02-00 provides sufficient length for stable mounting while remaining compact enough for most standard industrial applications.
Can this probe be used in outdoor environments?
Yes, with proper protection from direct weather exposure. The probe has good humidity resistance but should be installed in an enclosure or protected area.
Technical Questions
What is the typical lifespan of this probe?
With proper installation and maintenance, this probe can provide reliable service for many years in standard industrial environments.
How do I extend the 0.5-meter cable if needed?
Use approved Bently Nevada extension cables with ClickLoc connectors to extend the cable length as required for your application.
Ordering & Support
What documentation comes with this probe?
The probe comes with standard manufacturer documentation including specifications and installation guidelines.
Do you offer expedited shipping options?
Yes, we offer expedited shipping through our carrier partners including FedEx, UPS, and DHL for urgent requirements.
