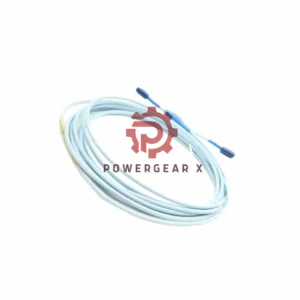

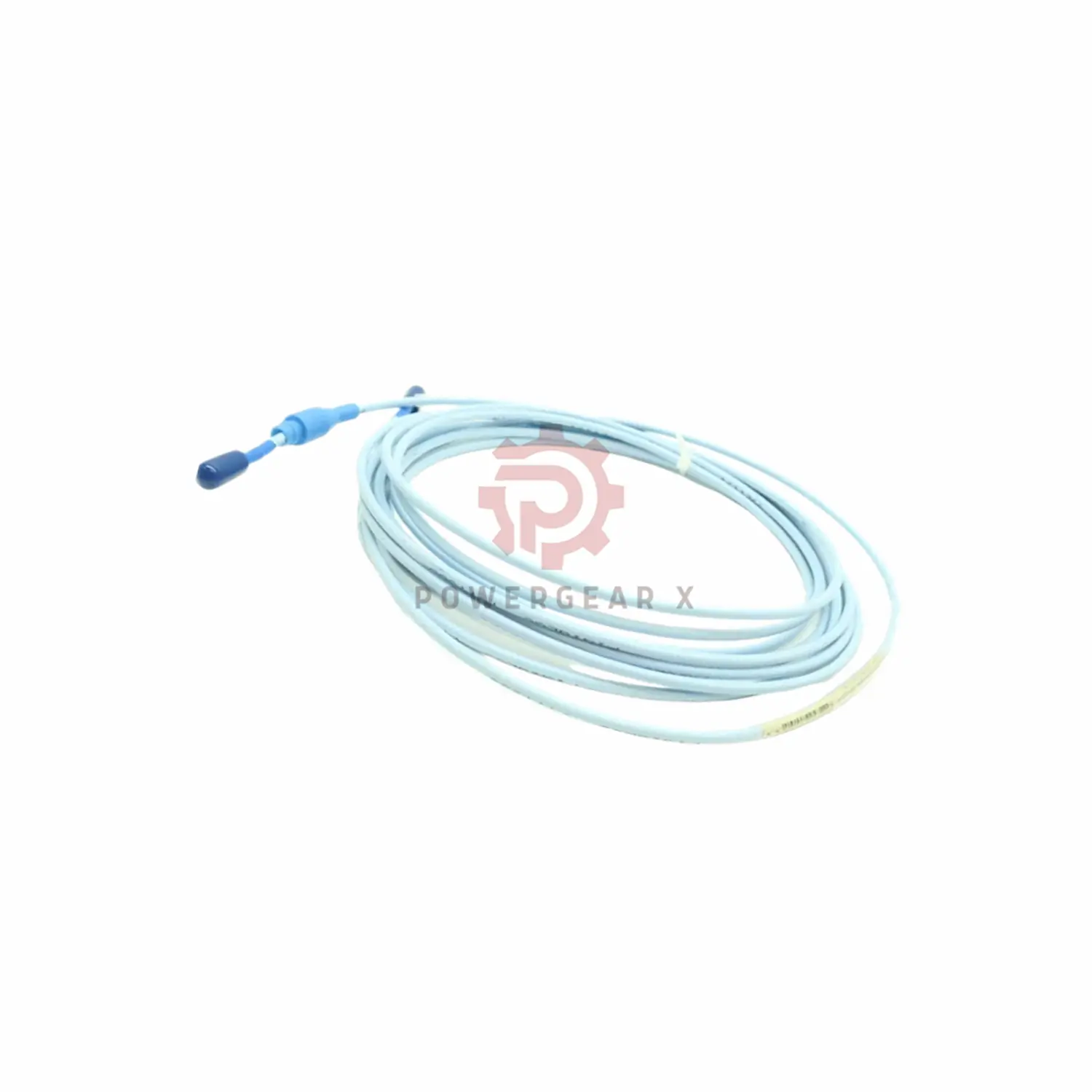

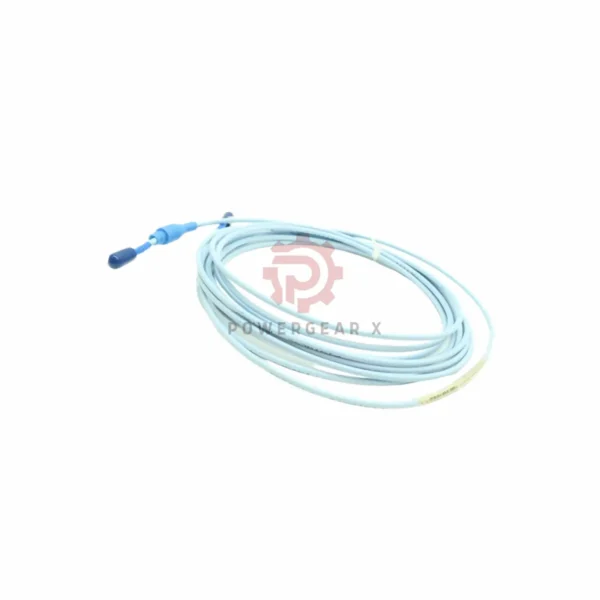

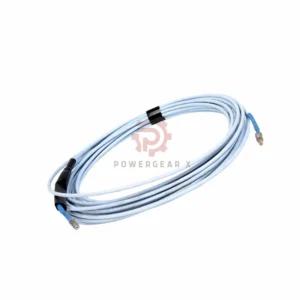

Bently Nevada 330130-060-00-00 Extension Cable
Product Overview
This is a 6.0-meter standard extension cable used with Bently Nevada 3300 XL 8 mm vibration monitoring systems. It connects the probe to the Proximitor sensor. Made in the USA.
Technical Specifications
- Model: 330130-060-00-00
- Length: 6.0 meters (19.7 feet)
- Cable Type: Standard unarmored
- Weight: 0.204 kg
- Capacitance: 69.9 pF/m
- DC Resistance: RCORE: 1.32 ± 0.21 Ω, RJACKET: 0.39 ± 0.08 Ω
- Voltage Range: -17.5 to -26 Vdc
- Output Resistance: 50 Ω
- Supply Sensitivity: Less than 2 mV/volt
Extended Features
- Gold-plated ClickLoc connectors: Provide corrosion resistance and secure connection
- Silicone Tape: Included as an alternative to connector protectors
- Pull Strength: CableLoc design rated at 330 N (75 lbf)
Application Range
- Linear Measurement: 0.25 mm to 2.3 mm (–1 to –17 Vdc)
- Working Temperature: +18°C to +27°C
- Altitude Range: Up to 2000 meters
- Humidity Tolerance: Less than 3% change in scale factor in 93% humidity
Model Number Breakdown
- 330130: Extension cable series
- 060: 6.0 meters length
- 00: Standard cable
- 00: No certification required
Packaging and Warranty
- Includes extension cable and silicone tape
- Ships via FedEx, UPS, or DHL
- Standard 12-month warranty
