Product details

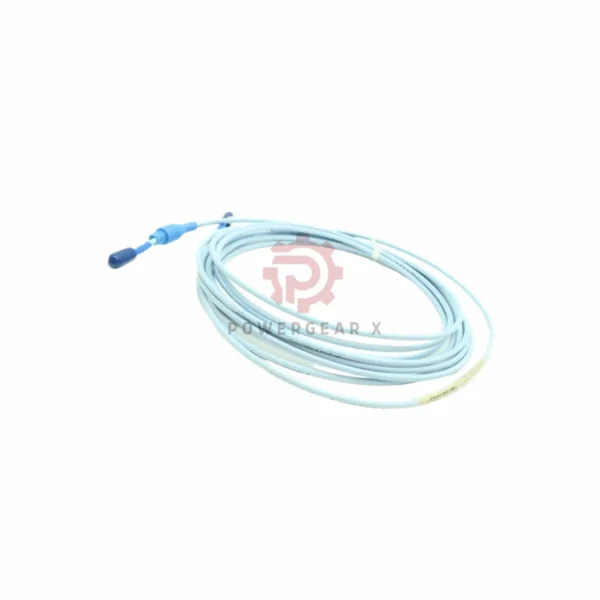

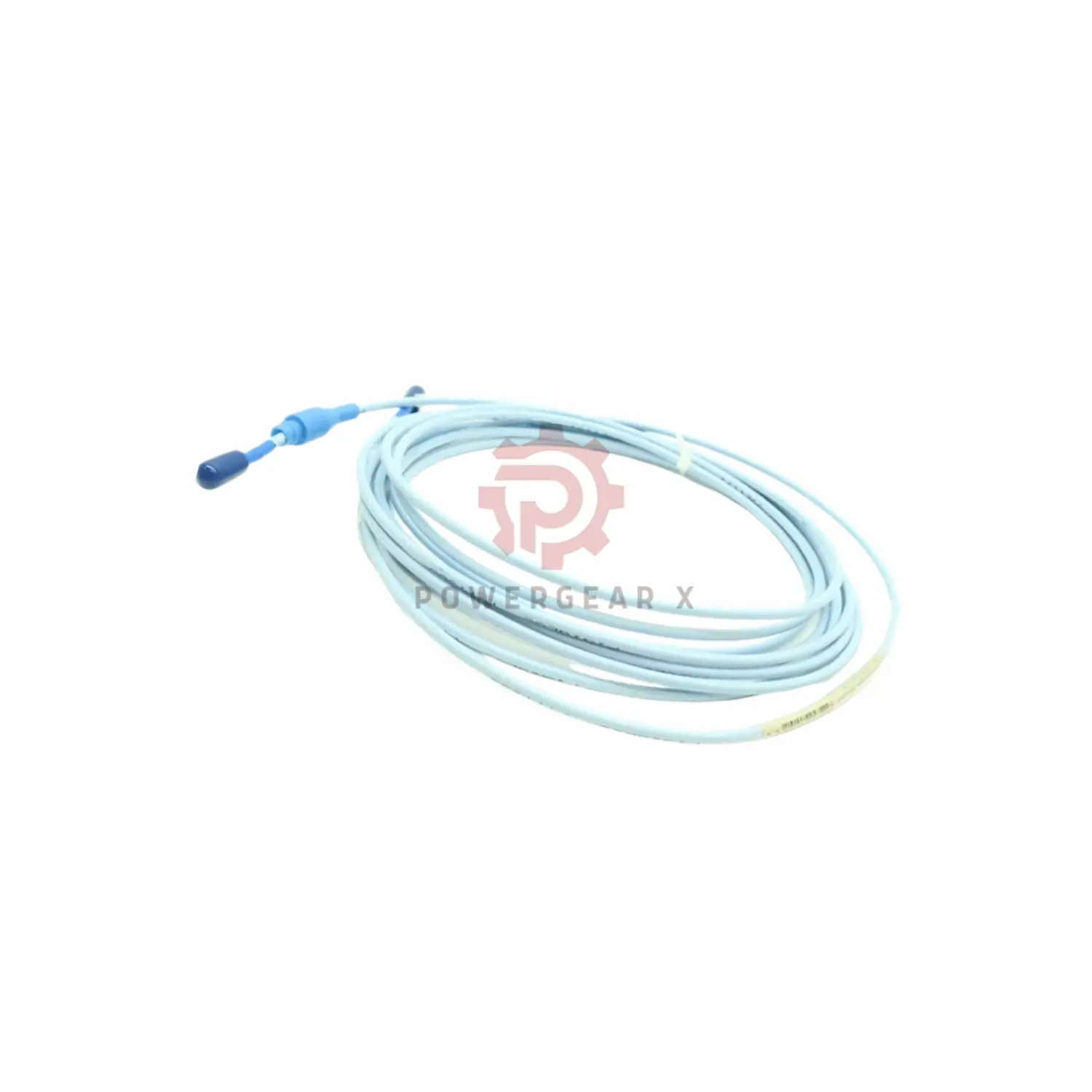

Bently Nevada 330130-045-00-BR Extension Cable
Product Summary
This 4.5-meter Bently Nevada 330130-045-00-BR extension cable is built for 3300 XL 8 mm Proximitor systems. It features a standard cable and includes silicone tape for optional sealing. Manufactured in the USA.
Technical Specifications
- Part Number: 330130-045-00-BR
- Length: 4.5 meters (14.8 feet)
- Cable Type: Standard
- Weight (Standard): 0.204 kg
- Weight (Armored): 0.618 kg
- Capacitance: 69.9 pF/m (typical)
- Center Conductor Resistance (RCORE): 0.99 ± 0.15 Ω
- Outer Conductor Resistance (RJACKET): 0.30 ± 0.06 Ω
Electrical Features
- Voltage Range: -17.5 Vdc to -26 Vdc (no barrier)
- Max Current: 12 mA
- Recommended Voltage (with barrier): -23 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- Sensitivity: Less than 2 mV change per 1 V input change
Key Technologies
- TipLoc: Stronger probe tip bond
- CableLoc: 330 N pull strength
- Optional FluidLoc Cable: Stops oil leakage through the cable interior
Environmental & Reliability
- Ideal Temp Range: +18°C to +27°C
- Altitude Limit: 2000 meters
- Humidity Test: <3% ASF change at 93% humidity for 56 days
- Sealing: Viton O-ring (not pressure-tested by default)
Model Code Structure
- 330130: Extension cable series
- 045: Cable length 4.5 meters
- 00: Standard cable
- BR: Country-specific approval (Brazil)
Shipping and Warranty
- Shipping Options: FedEx, UPS, DHL
- Warranty: 12 months
- Packaging: Factory sealed, includes silicone tape
