3-Inch Case Probe with Imperial Thread and Global Certs

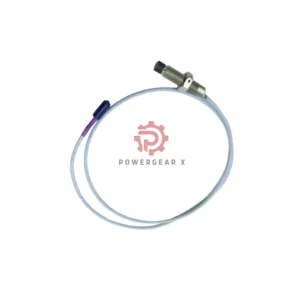

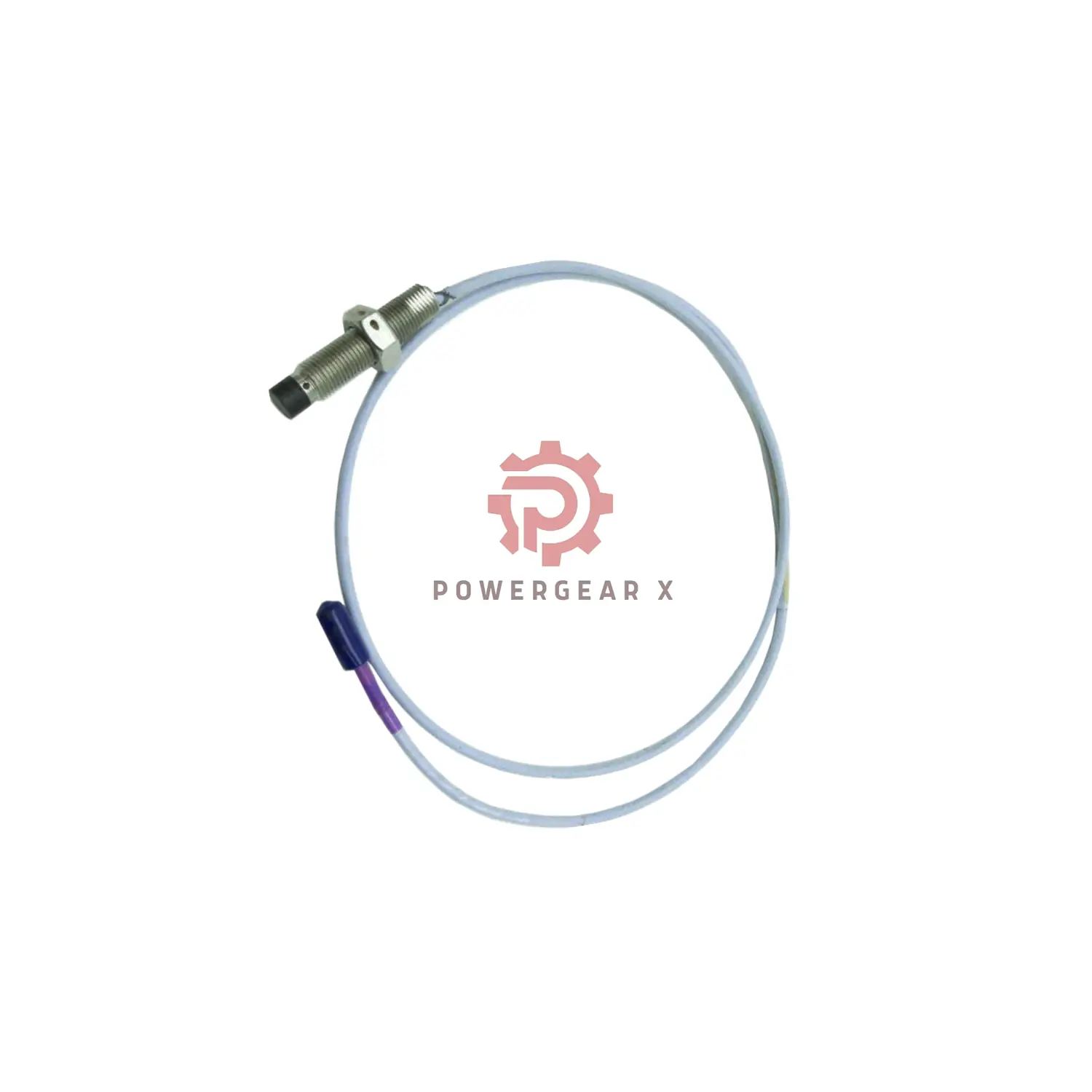

This is the authentic Bently Nevada 3300 XL Proximity Probe, part 330701-00-30-10-02-05. It is a new, original USA-made sensor in factory packaging. Your order includes a full 12-month manufacturer warranty.
Featuring a compact 3-inch (76.2mm) case with a 1/2-20 UNF thread, this model is ideal for standard installations. It comes pre-configured with multiple international approvals, making it a compliant and reliable choice for machinery monitoring worldwide.
Technical Specifications at a Glance
- Full Product ID: 330701-00-30-10-02-05
- Brand & Origin: Bently Nevada, Made in USA
- Monitoring Platform: 3300 XL Series
- Sensor Style: 11mm Triaxial Vibration Probe
- Mounting Thread: Imperial 1/2-20 UNF
- Case Dimension: 3.0 Inches (76.2 mm) Long
- Integrated Cable: 1.0 Meter (3.3 Feet) Length
- Cable Build: 75 Ohm Triaxial, FEP Insulation
- Output Connector: Standard ClickLoc
- Compliance: Multiple Agency Approvals Included
- Electrical Data: 5.9 Ohms DC Resistance (±0.5Ω)
- Product Weight: Lightweight at 0.17 kg (0.37 lbs)
- Durable Materials: 304 Stainless Steel Body, PPS Tip
- Installation Torque: Tighten to 15.2 N·m (133 in-lb).
- Thread Engagement: Maximum 0.750 inches (19 mm).
- Temp Range: Operates from -51°C to +177°C.
- Cable Care: Maintain a 25.4 mm (1.0 in) minimum bend radius.
What Makes This Model Stand Out
- Compact & Standard: The 3-inch case is a common, versatile length for most general machinery monitoring applications with imperial mounting.
- Certification Ready: Eliminate procurement delays with built-in international hazardous area certifications for many global markets.
- Imperial System Compatible: Direct replacement for existing systems using 1/2-20 UNF threaded probes.
- Trusted Performance: Delivers the same high-fidelity vibration and position data as all 3300 XL 11mm probes.
Order With Confidence
- You Receive: One Bently Nevada 330701-00-30-10-02-05 probe.
- Quality Guarantee: 100% new and original, never installed.
- Warranty Promise: Protected by a 12-month warranty for your peace of mind.
- Fast Shipping: Reliable global delivery via FedEx, UPS, and DHL express services.
Practical FAQs for Buyers
Configuration & Use
- Is the 3-inch case a common size?
- Yes. The 3.0-inch (76mm) case is a very standard and popular length for the 3300 XL 11mm probes, offering a good balance of mounting stability and versatility.
- What certifications are included with the “-05” approval option?
- This typically includes a combination like ATEX (Europe) and IECEx (International) for use in hazardous areas. Specific certificates are provided with the product.
Selection & Compatibility
- My old probe is 1/2-20 UNF and about 3 inches long. Is this the direct replacement?
- Most likely, yes. The 330701-00-30-10-02-05 is designed as the standard certified replacement for that common configuration. Verify the cable length matches your needs.
- We have both imperial and metric threads in our plant. Can we standardize?
- For consistency, it’s best to use the thread that matches each machine’s mounting hole. This probe is the right choice for all your 1/2-20 UNF locations.
Purchasing & Logistics
- Do you provide the necessary certification paperwork for our safety file?
- Yes. The 330701-00-30-10-02-05 comes with or can be supplied with the relevant factory certification documents to support your compliance records.
Looking for a certified, imperial-thread probe?
Contact us for stock verification and competitive pricing.
