M16 Thread Probe with 130mm Case for Deep Mounting

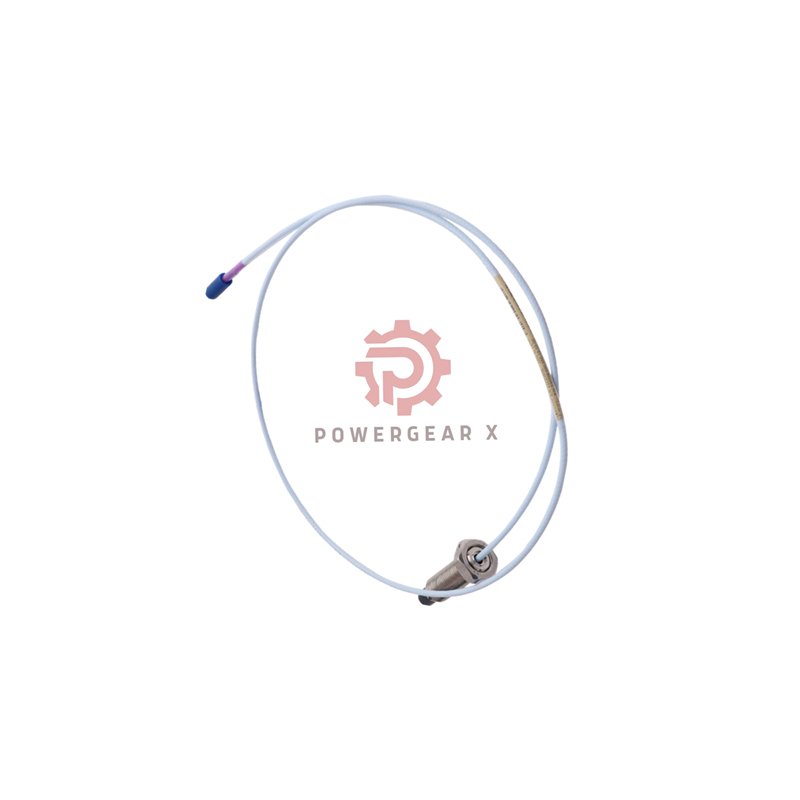

This is the genuine Bently Nevada 3300 XL Proximity Probe, part number 330709-000-130-10-02-00. It is a new, original sensor in factory packaging, supported by a full 12-month manufacturer warranty.
This model features the robust M16 x 1.5 thread combined with a longer 130mm case. It is engineered for applications requiring deep thread engagement or mounting through thick structural components on large turbines, compressors, and heavy industrial rotors.
Core Engineering Specifications
- Specific Model: 330709-000-130-10-02-00
- Manufacturer: Bently Nevada (Made in USA)
- Product Family: 3300 XL Monitoring System
- Sensor Type: 11mm Triaxial Proximity Probe
- Mounting Spec: Heavy-Duty M16 x 1.5 Thread
- Case Profile: Extended 130 mm Body Length
- Integrated Cable: 1.0 Meter (3.3 Feet) Standard
- Cable Construction: 75 Ohm Triaxial, FEP Insulated
- Connection: ClickLoc Connector
- Target Application: For large shafts (152mm/6″ min recommended).
- Resistance Value: 5.9 Ohms DC (±0.5 Ohms).
- Environmental Class: Suitable for 100% condensing humidity.
- Materials: 304 Stainless Steel Case, PPS Tip.
- Installation Torque: Apply 21.1 N·m (187 in-lb).
- Thread Guidance: Maximum 24 mm engagement depth.
- Temperature Range: Operates from -52°C to +177°C.
- Bend Radius: Minimum 25.4 mm (1.0 inch) for cable.
Key Features & Ideal Uses
- Deep Mounting Capability: The 130mm case provides ample length for secure installation in deep mounting holes or through substantial machine housings.
- Large Machine Optimized: M16 thread and design minimize crosstalk, ensuring accurate readings on large-diameter rotors.
- Built for Harsh Conditions: Withstands high humidity and extreme temperatures, perfect for steam turbine halls or outdoor compressor stations.
- Proven Reliability: Triaxial design delivers clean, stable signals in electrically noisy industrial environments.
Order Details & Customer Assurance
- Package Includes: One Bently Nevada 330709-000-130-10-02-00 probe.
- Quality Status: 100% new and original, never used or installed.
- Warranty Terms: Full 12-month coverage for material and workmanship defects.
- Global Delivery: Fast shipping options via FedEx, DHL, and UPS available worldwide.
Technical FAQs for Heavy Industry
Specifications & Selection
- When should I choose a 130mm case over a 120mm case?
- Select the 130mm case (330709-000-130-10-02-00) when you need the probe to extend further into a deep mounting hole or through a very thick mounting bracket for added stability.
- Does the longer case affect the probe’s temperature rating or performance?
- No. The performance and temperature specifications are identical to other M16 probe variants. The extra length is purely mechanical.
Application & Compatibility
- Our generator has a 200mm shaft. Is this probe appropriate?
- Yes, perfectly. The 330709-000-130-10-02-00 is designed for shafts of 152mm and larger. Your 200mm shaft is well within the ideal range for accurate measurement.
- Can this probe be used in a hazardous area location?
- This specific model (option -00) does not have special hazardous area certifications. For such locations, you would need a variant with approval options like -05 or -CN. Contact us for certified models.
Procurement & Support
- What is the lead time for the 330709-000-130-10-02-00?
- This standard model is typically in stock or has short lead times. Contact us for current availability and to arrange express shipping with DHL, FedEx, or UPS to meet your project schedule.
