Bently Nevada 3300 XL M16 Probe 330709-000-120-10-02-00 | For Large Shafts

Heavy-Duty M16 Thread Probe for Large Shaft Monitoring

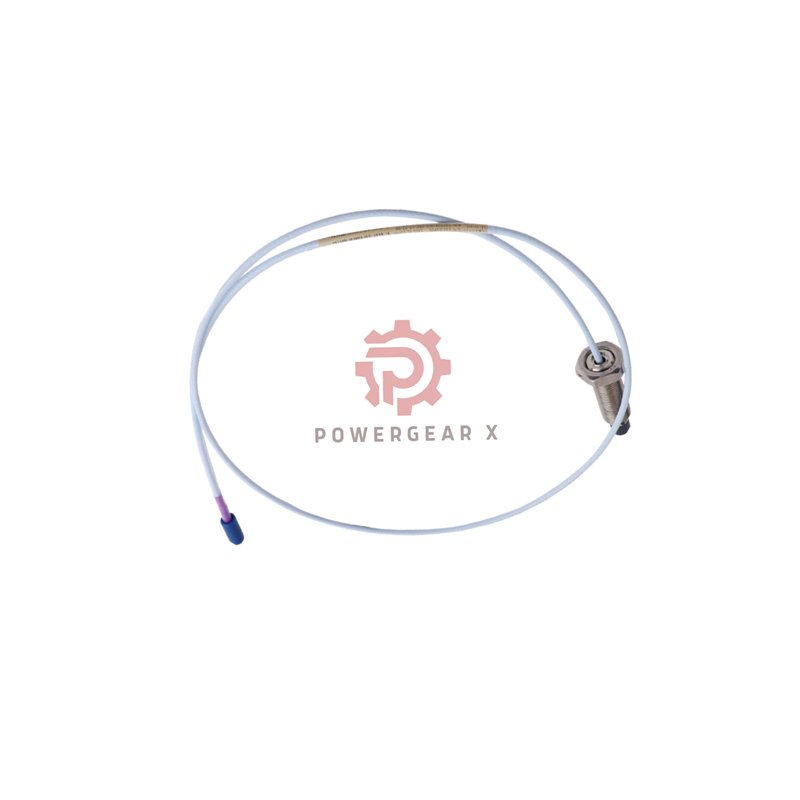

This is the genuine Bently Nevada 3300 XL Proximity Probe, part number 330709-000-120-10-02-00. It is a new, original sensor in factory packaging, backed by a full 12-month manufacturer warranty.

Designed for large industrial machinery, this probe features a robust M16 x 1.5 mounting thread. Its 120mm case provides a secure fit for monitoring vibration and position on large turbines, generators, and pumps with substantial shaft diameters.

Key Specifications & Design Details

• Full Product Code: 330709-000-120-10-02-00
• Brand & Origin: Bently Nevada, Made in USA
• System Series: 3300 XL Machinery Protection
• Probe Type: 11mm Diameter, Unarmored Triaxial
• Mounting Feature: Large M16 x 1.5 Metric Thread
• Case Build: Standard 120 mm Body Length
• Integrated Cable: 1.0 Meter (3.3 Feet) Long
• Cable Type: Standard Triaxial, 75 Ohm
• Output Connector: ClickLoc Connector
• Target Specification: For large shafts (152mm/6″ min recommended).
• Electrical Resistance: 5.9 Ohms ±0.5 Ohms
• Noise Immunity: Excellent performance in high magnetic fields.
• Material Quality: 304 Stainless Steel Case, PPS Tip
• Installation Torque: Tighten to 21.1 N·m (187 in-lb).
• Thread Engagement: Maximum 24 mm depth.
• Operating Range: -52°C to +177°C (-62°F to +351°F).
• Environmental Rating: 100% condensing humidity resistant.

Primary Benefits & Applications

• For Large Machinery: The M16 thread and design are optimized for heavy-duty equipment with large shaft diameters, minimizing electrical crosstalk.
• Secure Mounting: The larger thread diameter provides enhanced mechanical strength and stability in high-vibration environments.
• Reliable in Humidity: Built to withstand 100% condensing environments, ideal for turbine halls or outdoor applications.
• Global Standard: A versatile, general-purpose probe for most large-scale industrial monitoring applications.

Ordering & Service Information

• Package Contents: One Bently Nevada 330709-000-120-10-02-00 probe.
• Condition Guarantee: 100% new, original, never installed.
• Warranty Coverage: Full 12-month protection against defects.
• Fast Logistics: Shipped globally via express carriers FedEx, DHL, and UPS.

Expert Q&A for Large Machine Monitoring

Specifications & Use

• Why does this probe recommend a minimum 152mm (6″) shaft diameter?
• This is to prevent “crosstalk.” On small shafts, the probe’s electromagnetic field can wrap around, causing inaccurate readings. The larger shaft provides a proper target.

• What is the difference between M14 and M16 thread probes?
• The M16 thread is larger and stronger. It is often used on heavier machinery or where specification calls for the larger thread size. Always match the thread to your mounting hole.

Application & Selection

• Is the 330709-000-120-10-02-00 suitable for a steam turbine generator?
• Yes, it is an excellent choice. The M16 thread offers robust mounting, and its design for large shafts matches typical turbine generator rotor diameters.

• Can this probe be used for axial thrust position measurement?
• Yes, but ensure the target surface (thrust collar) meets the minimum flat diameter requirement of 30.5mm for accurate axial readings.

Procurement & Support

• Do you offer the same probe with a longer cable, like 5 or 9 meters?
• Yes. The 330709 base model is available in 1m, 5m, and 9m lengths. Contact us with your required cable length for the correct part number and pricing.
