Bently Nevada 3300 XL M10 Probe 330706-005-046-10-00-00 | 11mm Reverse Mount

Metric Reverse Mount Probe for Global Machinery

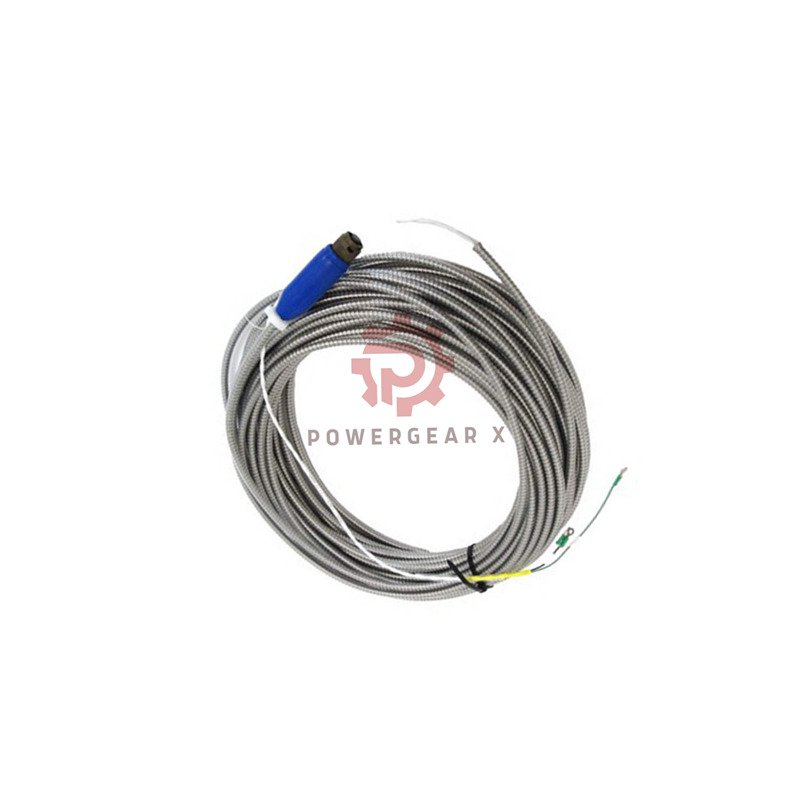

This is the Bently Nevada 3300 XL 11 mm Reverse Mount Probe, model 330706-005-046-10-00-00. Made in the USA, this specialized probe features an M10 x 1 metric thread for compatibility with international equipment standards. With a 1-meter triaxial cable, it is designed for precise vibration monitoring in space-constrained reverse mount applications.

Technical Specifications & Build

• Core Product Details
  • Brand: Bently Nevada
  • Product: 3300 XL 11mm Reverse Mount Probe
  • Full Part Number: 330706-005-046-10-00-00
• Configuration Breakdown
  • 330706 – 11mm Reverse Mount Base Model
  • 005 – Unthreaded Length: 0.05 in
  • 046 – Case Length: 0.46 in
  • 10 – Cable Length: 1.0 meter (3.3 ft)
  • 00 – Connector: ClickLoc Coaxial
  • 00 – Approvals: Standard
• Key Electrical & Mechanical Data
  • Thread Type: M10 x 1.0 Metric.
  • Probe Resistance (1m): 5.9 Ω ± 0.5 Ω.
  • Cable Type: 75 Ω Triaxial, FEP Insulated.
  • Case Material: AISI 304 Stainless Steel.
  • Mounting Torque: Recommended 7.5 N•m (66 in-lb).
  • Min Bend Radius: 25.4 mm (1.0 in).
• Operating Environment
  • Temperature Range: -52°C to +177°C.
  • Sealing: Viton® O-ring for pressure differential.
  • Connector Torque: Hand tight only (Max 0.565 N•m).
  • Weight: Approximately 0.07 kg.

Professional FAQ & Support

Product Design & Use

• What does the “005” and “046” suffix refer to in the model?

These numbers specify very short mechanical dimensions. “005” is a 0.05-inch unthreaded section, and “046” is a 0.46-inch case length, indicating a compact probe head.

• My machine uses M10 threads. Is this the correct probe?

Yes. The 330706-005-046-10-00-00 model is specifically designed with an M10 x 1.0 metric thread for equipment using this standard.

Installation & Compatibility

• How do I install a reverse mount probe correctly?

Reverse mounting typically involves securing the probe from the back of the mounting hole. Always follow the machine OEM’s instructions and use the recommended 7.5 N•m torque.

• Is the 1-meter cable length sufficient for my setup?

A 1-meter cable is ideal when the proximitor can be mounted very close to the probe. For longer distances, you must use a compatible triaxial extension cable.

Purchasing & Service

• What is your process for returns or warranty claims?

All probes are covered by a 12-month warranty. For any issues, contact us with your order details. We ship globally via FedEx, UPS, and DHL for reliable delivery.

Order Your Metric Thread Solution Today

For precise monitoring in metric-designed machinery, this probe is essential. Contact us to confirm specifications and place your order.
