Product Overview
Bently Nevada 330192-00-60-10-00 provides precise shaft vibration sensing for turbines, compressors, and generators. The 3300 XL 8 mm ETR probe delivers durable field performance and robust measurement stability.
Key Technical Specifications
- Brand & Model: Bently Nevada — 330192-00-60-10-00, series 3300 XL 8 mm ETR probe.
- Probe Tip Material: Polyphenylene sulfide (PPS) for long wear life and chemical resistance.
- Probe Case Material: AISI 303 or 304 stainless steel for corrosion resistance in harsh environments.
- Thread: 3/8-24 UNF with maximum engagement length 0.563 inches.
- Unthreaded Length Rule: Minimum unthreaded length equals 0.0 inches, and must be at least 0.8 inches less than case length.
- Overall Case Length Option: 60 = 6.0 inches; Total Length Option: 10 = 1.0 meter (3.3 feet).
- Nominal Probe DC Resistance: For probe length 1.0 m, RPROBE = 7.59 ± 0.50 Ω.
- Sealing: Viton® O-ring seals differential pressure between tip and case; factory does not pressure-test probes before shipment.
- Humidity Tolerance: Less than 3% change in Average Scale Factor after 56 days at 93% humidity per IEC standard.
- Operating Temperature – Standard Probe: -52°C to +177°C (-62°F to +350°F).
- Extended Temperature: Probe tip -52°C to +218°C (-62°F to +425°F); cable and connector -51°C to +260°C (-60°F to +500°F).
- Temperature Note: Avoid exposure below –34°C (-30°F) to protect pressure seal integrity and probe lifetime.
Suffix Option Tree
- Model suffix structure:
- 330192 — base probe family identifier.
- -00 — agency approval option: 00 = not required.
- -60 — overall case length option: 60 = 6.0 inches.
- -10 — total length option: 10 = 1.0 meter (3.3 feet).
Performance & Measurement Details
- Sensitivity & Linearity: Stable scale factor and excellent linearity across typical vibration amplitudes.
- Frequency Response: 8 mm ETR geometry supports broad frequency range for rotating machinery diagnostics.
- Resolution: Low DC resistance and stable construction improve resolution for small vibration amplitudes.
- Electromagnetic Immunity: Robust coaxial construction minimizes EMI pickup in industrial environments.
- Environmental Durability: Stainless steel case and PPS tip resist oil, heat, and wear.
Installation Guide
- Mounting: Thread probe into 3/8-24 UNF receptacle until secure, engagement 0.563 inches.
- Clearance: Maintain required unthreaded length to avoid shaft interference.
- Cable Routing: Keep cable away from heat sources when exceeding standard limits.
- Seal Check: Ensure Viton® O-ring is properly seated during installation.
- Electrical Grounding: Ground probe case per site standards to minimize noise pickup.
Packaging List

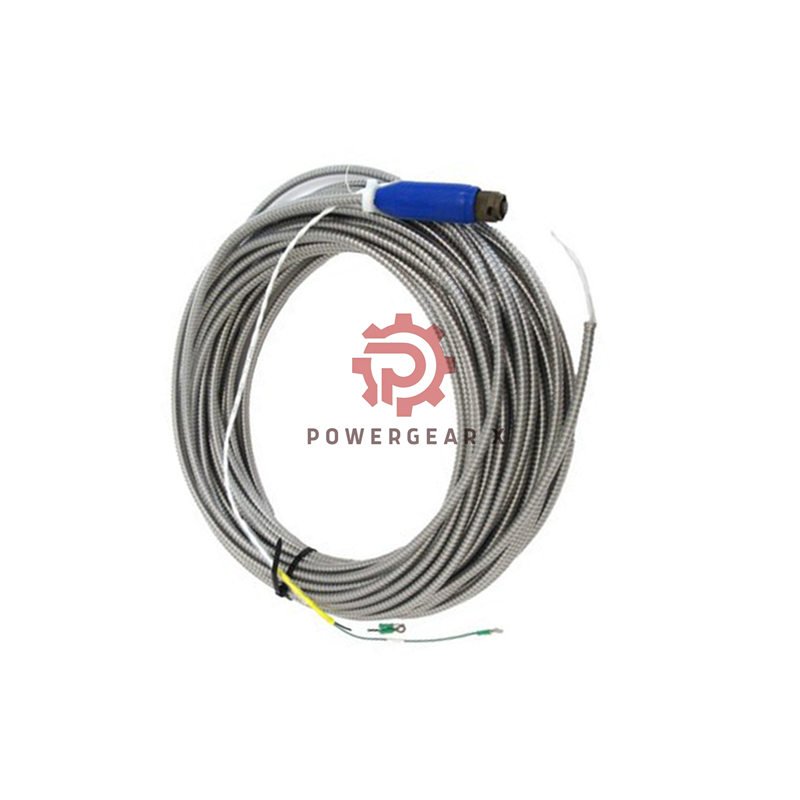

- Contents: One Bently Nevada 330192-00-60-10-00 probe with armor and connector assembly.
- Accessories: Protective cap, mounting instructions, and handling pouch included.
- Shipping: FedEx, UPS, and DHL available per customer preference.
FAQ
- Q: Does the probe ship pressure tested?
- A: No. Contact the custom design team for test options.
- Q: What is the cable temperature limit?
- A: The cable and connector tolerate up to +260°C in extended range.
- Q: Can I order custom lengths?
- A: Yes. Contact sales for custom configuration or special testing.
