Product details

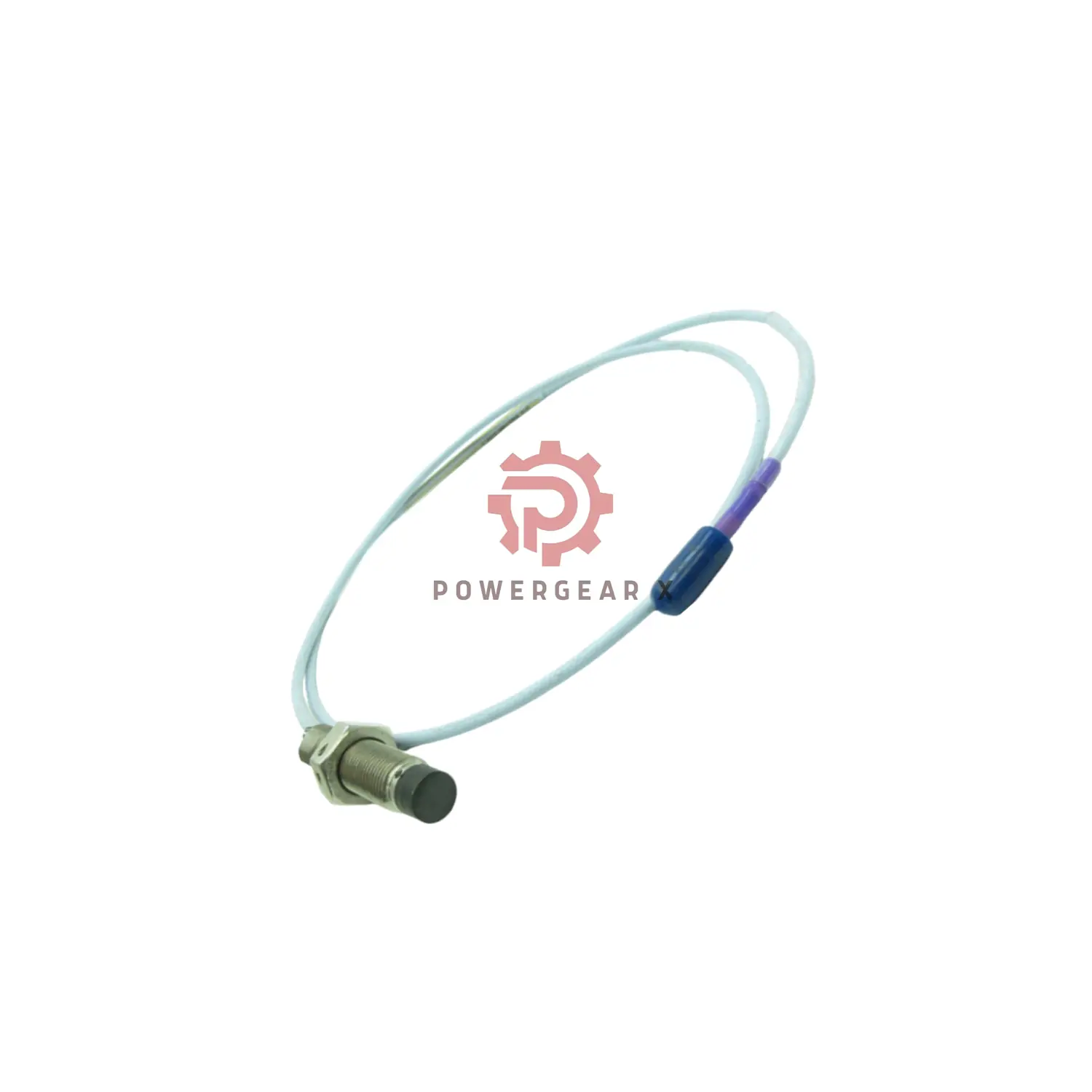

Long-Reach 5-Meter Vibration Probe for Direct Mounting
Introducing the genuine Bently Nevada 3300 XL Proximity Probe, part number 330703-000-040-50-11-00. This is a new, original sensor in factory packaging, protected by a 12-month manufacturer warranty.
This model features an integrated 5-meter (16.4 ft) FluidLoc cable. It is designed for installations where the proximitor sensor mounts directly on the machine. The short 40mm case and long cable eliminate the need for a separate extension cable, simplifying your wiring.
Detailed Technical Specifications
- Complete Part Number: 330703-000-040-50-11-00
- Brand & System: Bently Nevada 3300 XL
- Probe Type: 11mm Diameter, Unarmored Triaxial
- Mounting Thread: M14 x 1.5 Metric
- Case Profile: Compact 40.0 mm Body Length
- Cable Length: Long 5.0 Meter (16.4 Feet) Integrated
- Cable Specification: FluidLoc, Triaxial, 75 Ohm
- Connector Type: ClickLoc with Protective Cover
- Approvals: Standard Model (No Special Agency Approvals)
- Electrical Resistance: 7.2 Ohms ±0.8 Ohms (for 5m length)
- Noise Rejection: Excellent immunity to 60 Hz magnetic fields.
- Durable Build: 304 Stainless Steel Case, PPS Tip Material
- Installation Torque: Tighten to 21.1 N·m (187 in-lb).
- Thread Engagement: Do not exceed 21 mm depth.
- Operating Range: -52°C to +177°C (-62°F to +351°F).
- Storage Caution: Keep above -34°C to prevent seal damage.
Unique Benefits of This Configuration
- All-in-One Solution: Long 5m cable is pre-attached, reducing connection points and potential failure spots.
- Space-Saving Design: Short 40mm case ideal for tight mounting spaces on machinery.
- Optimized System: Designed specifically for use with a 5-meter proximitor, ensuring correct electrical calibration.
- Fluid Resistance: FluidLoc cable protects against moisture and oil ingress in harsh environments.
Package Contents & Service
- Included Item: One Bently Nevada 330703-000-040-50-11-00 probe assembly.
- Quality Assurance: 100% new and original, factory-fresh condition.
- Warranty Protection: Full 12-month coverage for material and workmanship.
- Global Logistics: Fast and reliable shipping via FedEx, UPS, or DHL express services.
Expert Installation & Buying FAQs
Product Application
- Why would I choose a 5-meter probe over a 1-meter probe with an extension cable?
- A single 5-meter integrated cable is more reliable. It removes one connector junction, reducing the risk of connection problems, moisture entry, and signal noise.
- Can I use this 5-meter probe with any 3300 XL proximitor?
- No. This probe is designed specifically for use with the 5-meter Proximitor Sensor only. Using it with a different proximitor length will cause inaccurate measurements.
Specifications & Selection
- The resistance is 7.2 ohms. Is that normal for this probe?
- Yes. The longer 5-meter integrated cable results in a higher DC resistance (7.2Ω vs. ~5.9Ω for a 1m probe). This is standard and accounted for by the matching 5m proximitor.
- What applications is the short 40mm case best for?
- The short case is perfect where space behind the mounting surface is limited, such as on compact machine housings or within crowded equipment skids.
Ordering & Support
- How do I ensure I’m ordering the correct probe for my 5-meter proximitor system?
- Verify your existing proximitor model. If it is designed for a 5-meter cable run, then the 330703-000-040-50-11-00 is the correct matching probe. Contact us with your system details for confirmation.
