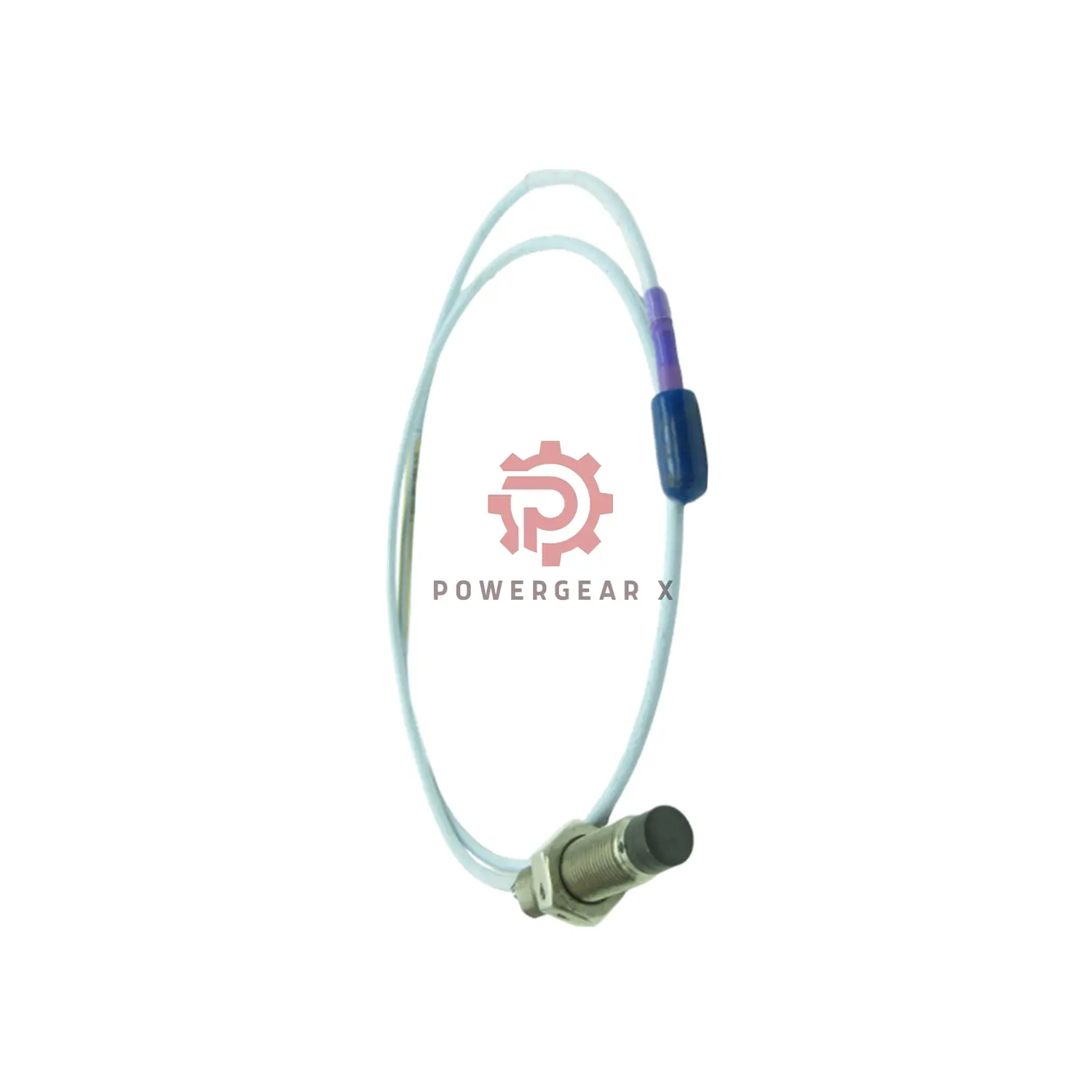

Premium OEM Sensor: Bently Nevada 330703-00-060-10-11-00
Introducing the genuine 3300 XL 11 mm Proximity Probe. This sensor is designed for critical machinery monitoring. It is 100% new and original, supplied in factory-sealed packaging. The product includes a comprehensive 12-month manufacturer warranty for your peace of mind.
Top Product Features
- Larger Sensing Tip: 11 mm diameter for stable and reliable measurement signals.
- Extended Case Length: 60 mm stainless steel body for versatile mounting depth.
- Industrial-Grade Cable: 1-meter FluidLoc triaxial cable for demanding environments.
- Connector Protection: Includes a protective cap to safeguard the ClickLoc connector during handling.
- High Immunity: Exceptionally low sensitivity to surrounding magnetic fields (EMI).
Comprehensive Technical Data
Product Identification
- Brand: Bently Nevada
- Model Number: 330703-00-060-10-11-00
- Product Series: 3300 XL Proximity Probes
- Sensor Type: 11 mm Diameter, Eddy Current
Mechanical Specifications
- Mounting Thread: M14 x 1.5 mm
- Case Length: 60.0 mm
- Cable Length: 1.0 meter (3.3 feet)
- Thread Engagement: Maximum 21 mm
- Recommended Torque: 21.1 N·m (187 in-lb)
- Maximum Torque: 63.3 N·m (560 in-lb)
Electrical & Performance Specifications
- Probe Resistance: 5.9 ± 0.5 Ohms
- Cable Construction: 75-ohm Triaxial, FEP insulation (FluidLoc).
- Connector: Miniature Coaxial ClickLoc (with protector).
- Magnetic Field Effect: Minimal. Only 0.001 mil pp/gauss at a 0.5 mm gap.
Environmental Specifications
- Operating Temp Range: -52°C to +177°C (-62°F to +351°F)
- Storage Temp Range: -52°C to +177°C
- Pressure Seal: Viton O-ring. Avoid constant use below -34°C (-29°F).
- Case Material: AISI 304 Stainless Steel
- Tip Material: Chemical-resistant PPS (Polyphenylene Sulfide)
What’s Included & Guarantee
- One (1) Bently Nevada 330703-00-060-10-11-00 proximity probe.
- Factory packaging and standard documentation.
- Full 12-Month Original Factory Warranty.
- Reliable global shipping via FedEx, UPS, or DHL with tracking.
Ideal Applications & Selection Tip
This probe is perfect for large rotating equipment like turbines, generators, and high-pressure compressors. The 60mm case offers more flexibility than a 40mm version. Choose this model when you need the robustness of an M14 thread and the enhanced protection of a FluidLoc cable with connector guard.
Technical FAQs
Q: What is the difference between the “060” case option and the “040” option?
A: The 060 indicates a 60 mm long metal case. The 040 is a shorter 40 mm case. Choose the 60mm version if you need the probe tip to extend further into your machine or through a thicker mounting boss.
Q: Why does this probe have a triaxial FluidLoc cable instead of a standard coaxial cable?
A: The triaxial FluidLoc cable provides an extra layer of shielding and insulation. This offers superior protection against moisture ingress and electrical noise. It is ideal for harsh or critical applications.
Q: Can I use this M14 threaded probe with a standard 3300 XL 8mm probe mounting hole?
A: No. The 8mm probes typically use M10 or 3/8-24 threads. The M14x1.5 thread is larger and requires a specifically sized mounting hole or adapter. Always check your machinery’s thread specification.
Q: How important is the connector protector, and should I keep it?
A: The connector protector is very important during storage and transport. It prevents damage to the delicate pins. Remove it only when connecting the probe. We recommend storing it for future use if the probe is disconnected.
Q: What is your process for order confirmation and shipping?
A> Upon order, you will receive an immediate confirmation. We process quickly and ship via your chosen carrier (FedEx, UPS, DHL). Tracking details are emailed directly. For urgent needs or large projects, contact us for expedited handling.
Have a question about compatibility or need a custom solution? Our engineering support team is ready to assist.
