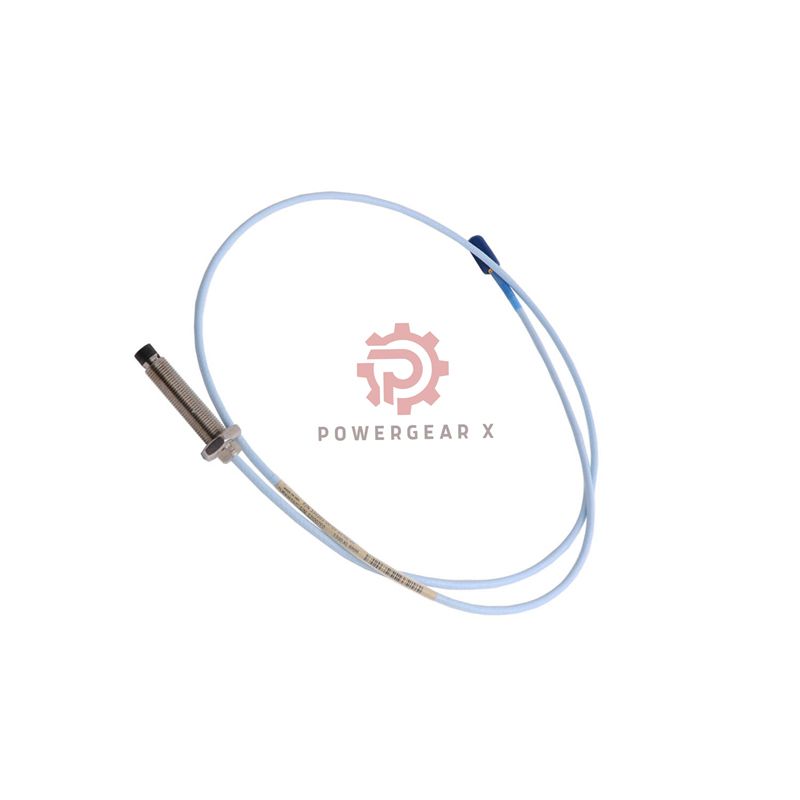

Bently Nevada 3300 XL 11 mm Proximity Probe 330707-00-55-10-01-00

Product Identity

• Manufacturer: Bently Nevada
• Product Number: 330707-00-55-10-01-00
• Series: 3300 XL
• Type: 11 mm proximity probe
• Designed for precise shaft vibration monitoring.
• Made in the U.S.A.

Ordering Code Structure

• 330707
  • 3300 XL probe platform
  • 11 mm sensing diameter
• -00
  • Unthreaded length: 0.0 in
• -55
  • Case length: 5.5 in
• -10
  • Total length: 1.0 meter cable
• -01
  • ClickLoc connector with protector
  • Standard probe cable
• -00
  • No agency approval required

Core Product Strengths

• 11 mm body improves signal stability.
• Large sensing area handles shaft surface variation.
• Strong sealing protects internal components.
• Connector protector reduces handling damage.
• Ideal for continuous duty machines.

Electrical Characteristics

• Probe Resistance: 5.9 Ω ± 0.5 Ω at 1 m.
• Cable Type: 75 Ω triaxial design.
• Low noise signal transmission.
• Stable output over long service life.

Mechanical Construction

• Probe Tip: PPS material.
• Probe Case: AISI 304 stainless steel.
• Thread: 5/8-18 UNF.
• Maximum thread engagement: 0.938 in.
• High resistance to corrosion and wear.

Torque and Installation Limits

• Recommended case torque: 15.2 N·m.
• Maximum rated torque: 45.2 N·m.
• Connector tightening: finger tight.
• Maximum connector torque: 0.565 N·m.
• Minimum cable bend radius: 25.4 mm.

Thermal and Environmental Data

• Operating temperature: -52°C to +177°C.
• Storage temperature: -52°C to +177°C.
• Viton O-ring seals differential pressure.
• Avoid exposure below -34°C during handling.

Additional Technical Highlights

• Supports long cable runs without signal drift.
• Compatible with 3300 XL Proximitor sensors.
• Designed for high vibration environments.
• Consistent performance across temperature changes.

Typical Use Cases

• Steam turbine vibration monitoring.
• Large compressor protection systems.
• Critical pump shaft measurement.
• Heavy-duty rotating equipment.

Packaging, Warranty, and Shipping

• Condition: New and factory sealed.
• Warranty: 12 months.
• Shipping via FedEx, UPS, or DHL.
• Shipping weight: 0.17 kg.

Professional FAQ

• Why choose an 11 mm probe instead of 8 mm?
• The larger tip offers better signal stability.
• Is this probe suitable for high vibration zones?
• Yes, it handles strong mechanical stress well.
• Does the connector protector add value?
• It reduces damage during installation and service.
• Can this probe be reused after removal?
• Yes, if threads and cable remain undamaged.
• What should installers avoid?
• Avoid over-torque and sharp cable bends.
