1/2-20 UNF Thread Probe with Global Approvals

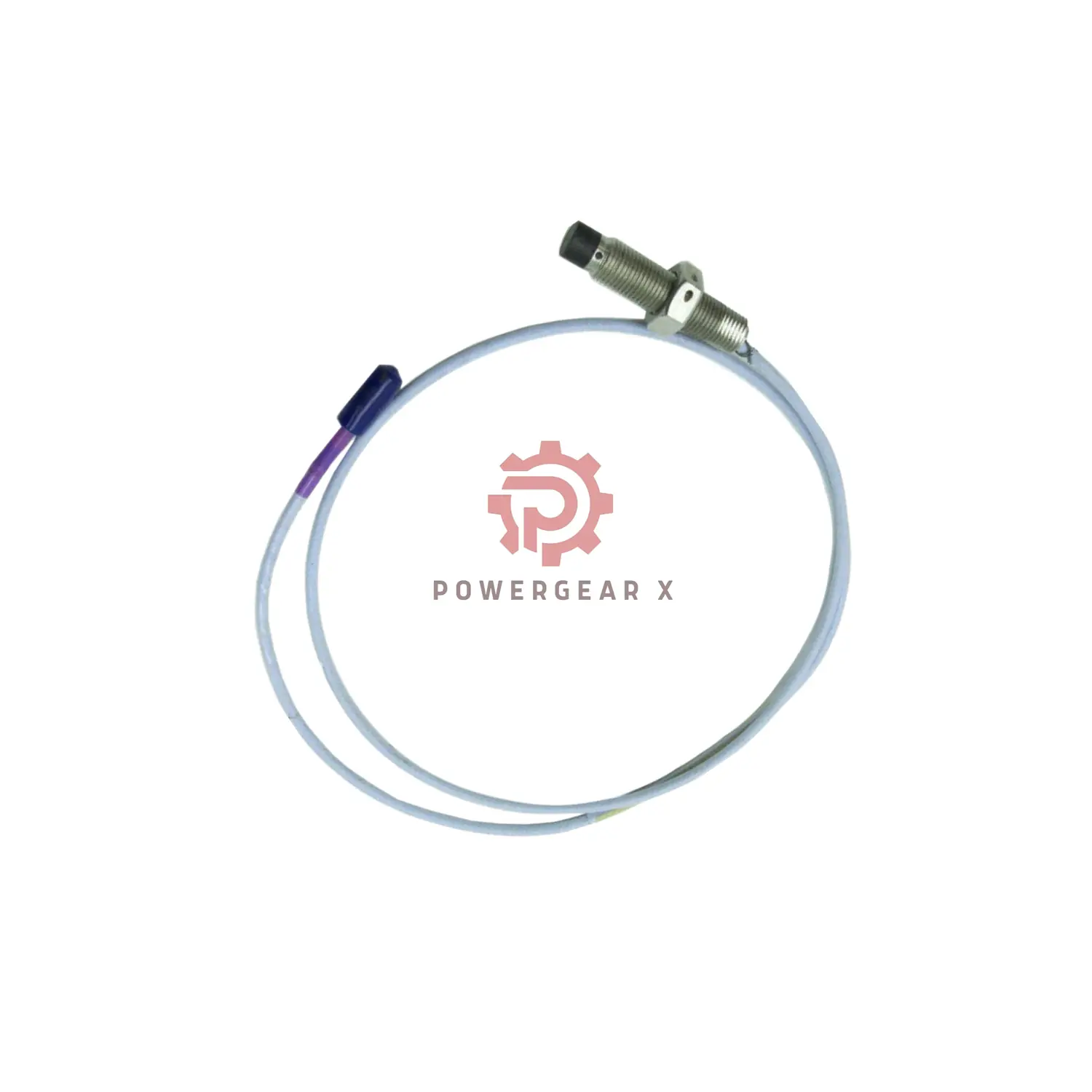

This is the genuine Bently Nevada 3300 XL Proximity Probe, part 330701-00-40-10-02-05. It is a new, original sensor made in the USA, delivered in factory packaging. Your purchase is protected by a complete 12-month manufacturer warranty.
This model features the imperial 1/2-20 UNF thread, common in North American machinery. With a 4-inch (101.6mm) case and multiple international approvals, it is a versatile, compliant choice for global projects involving turbines, compressors, and large pumps.
Detailed Configuration & Metrics
- Complete Part Number: 330701-00-40-10-02-05
- Brand & Origin: Bently Nevada (Made in USA)
- Product Series: 3300 XL Monitoring System
- Probe Type: 11mm Diameter Triaxial Sensor
- Mounting Thread: Imperial 1/2-20 UNF
- Case Length: 4.0 Inches (101.6 mm)
- Integrated Cable: 1.0 Meter (3.3 Feet) Standard
- Cable Construction: 75 Ohm Triaxial, FEP Insulation
- Output Connector: Standard ClickLoc Connector
- Certifications: Configured with Multiple Agency Approvals
- Electrical Characteristic: 5.9 Ohms DC Resistance (±0.5Ω)
- Weight: Approximately 0.17 kg (0.37 lbs).
- Material Quality: 304 Stainless Steel Body, PPS Tip
- Installation Torque: Apply 15.2 N·m (133 in-lb).
- Thread Guidance: Max 0.750 inches (19 mm) engagement.
- Temperature Range: -51°C to +177°C (-60°F to +351°F).
- Cable Handling: Minimum 25.4 mm (1.0 in) bend radius.
Key Advantages for Your Project
- Imperial Thread Standard: Direct fit for machinery and mounting holes designed with 1/2-20 UNF threads, common in many legacy and North American systems.
- Global Compliance Ready: Pre-configured with multiple approvals (e.g., ATEX, IECEx) to meet international hazardous area and safety standards.
- Robust Construction: The 4-inch case provides a stable, secure installation in standard mounting setups.
- Reliable Signal Integrity: Triaxial cable core ensures accurate data transmission in electrically noisy industrial environments.
Order & Support Details
- Package Contents: One Bently Nevada 330701-00-40-10-02-05 probe.
- Quality Assurance: 100% new and original, never used.
- Warranty Protection: Full 12-month coverage for material and workmanship.
- Shipping Options: Fast international delivery via FedEx, DHL, and UPS express services.
Specialized FAQs for Imperial System Users
Specifications & Selection
- What is the difference between 1/2-20 UNF and M14 thread?
- 1/2-20 UNF is an imperial (inch-based) thread, while M14 is metric. They are not interchangeable. You must select the probe thread that matches your machinery’s mounting hole.
- Why is the recommended torque for this thread different (15.2 N·m)?
- Different thread sizes and pitches have different strength ratings. The recommended torque for the 1/2-20 UNF thread (15.2 N·m) is specifically calculated to ensure a secure seal without damaging the threads.
Application & Procurement
- Our plant in the US uses all imperial threads. Is this the standard probe for us?
- Yes. The 330701-00-40-10-02-05 with its 1/2-20 UNF thread is the standard Bently Nevada 11mm probe for systems designed with imperial mounting holes.
- We are exporting equipment to Europe. Are the approvals on this probe sufficient?
- The “Multiple Approvals” (option -05) typically include international standards like ATEX/IECEx, which are widely accepted. Confirm the specific certification required by your end-client.
Logistics & Support
- Can you ship the 330701-00-40-10-02-05 with expedited air freight?
- Yes. We routinely ship via FedEx, DHL, and UPS air express services worldwide. Contact us for a shipping quote to your destination.
Need an imperial-thread probe with certifications?
Contact us for application verification and stock status.
