Product Description

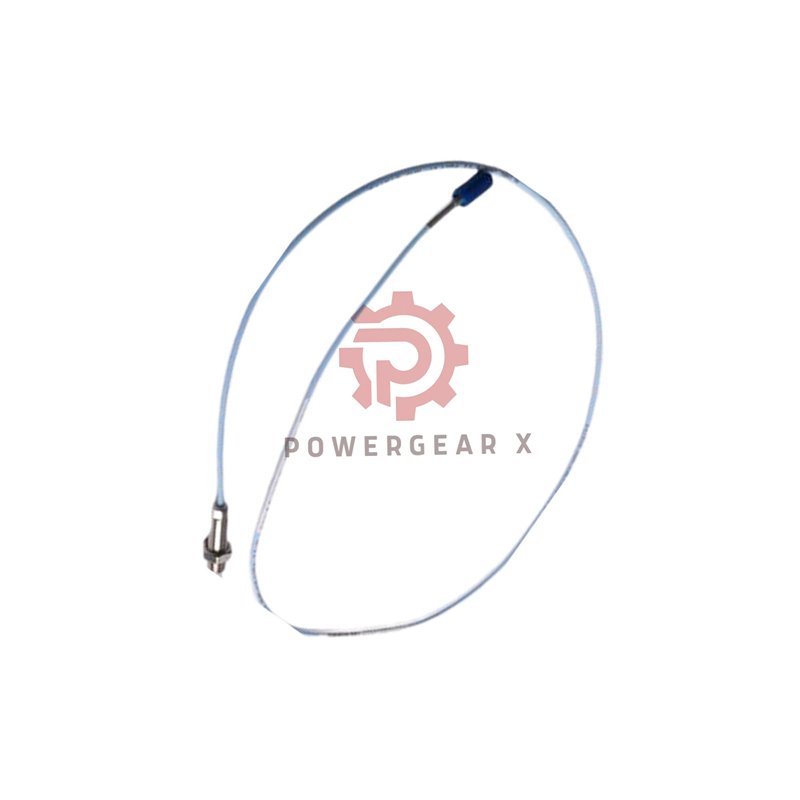

The 330908-00-15-05-02-00 is a high-performance 3300 NSv Proximity Probe from Bently Nevada. This new, original unit comes in factory packing with a 12-month warranty. It is designed for precise vibration and position measurement in demanding industrial machinery. The probe offers superior chemical resistance for use in process compressor applications.
It features a 3/8-24 UNF threaded case, a 0.5-meter cable, and a Miniature ClickLoc connector. This model is fully compatible and interchangeable with previous 3300 RAM system components.
Technical Specifications
- Brand & Model: Bently Nevada 3300 NSv (P/N: 330908-00-15-05-02-00)
- Measurement Range (Linear): 0.25 mm to 1.75 mm (10 to 70 mils).
- Recommended Gap: Set at 1.0 mm (40 mils).
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil).
- Linearity (DSL): Better than ±0.06 mm (±2.3 mils).
- Frequency Response: 0 to 10 kHz, typical.
- Operating Temperature: -52°C to +177°C (-62°F to +351°F).
- Environmental Durability: PPS tip and 304 SST case for excellent chemical resistance.
- Probe Resistance: 4.0 Ω ±0.5 Ω for a 0.5m cable.
- Target Size: Minimum 8.9 mm diameter (13 mm recommended).
- Connector: Miniature coaxial ClickLoc.
Installation & Compatibility
- Mounting Torque: Finger tight. Do not exceed 0.56 N•m (5 in•lb).
- Thread Engagement: Maximum 0.563 inches for 3/8-24 thread.
- Cable Bend Radius: Minimum 25.4 mm (1.0 inch).
- Easy Setup: Direct replacement for older 3300 RAM probes.
- Wiring: Use shielded triad cable. Supports field wiring up to 305 meters.
Key Features & Diagnostic Capabilities
- Superior Performance: Better side-view characteristics than older 190 series probes.
- Robust Construction: Withstands harsh environments and chemicals.
- Wide Compatibility: Works with existing Bently Nevada 3300 system infrastructure.
- Accurate Diagnostics: Essential for monitoring shaft vibration, runout, and position in turbines, compressors, pumps, and fans.
- Reliable Data: Stable signal for predictive maintenance programs.
Package, Warranty & Shipping
- Package Includes: One 3300 NSv Probe, factory packed.
- Factory Warranty: Full 12 months from shipment.
- Fast Global Shipping: We ship via FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
General & Selection
- Is this probe compatible with my existing Bently Nevada system?
- Yes. The 3300 NSv probe is mechanically and electrically compatible with the older 3300 RAM probes and extension cables. You can use it as a direct upgrade.
- How do I choose the right probe length?
- The part number specifies length. “-05” means a 0.5m cable. Choose based on the distance from the mounting point to the connector. Consider using an extension cable for longer runs.
Technical & Application
- What is the main advantage of the NSv over the older RAM probe?
- The NSv probe has significantly increased chemical resistance. This makes it ideal for process gas compressors where oil mist or chemicals are present.
- My shaft diameter is smaller than 13mm. Can I use this probe?
- Yes, but for axial position measurement, the scale factor may change. We recommend using a smaller gap setting to minimize this effect. Consult the manual’s Figure 12 for guidance.
- What is the best practice for setting the gap?
- Always set the probe at the recommended 1.0 mm (40 mils) gap for optimal linear output. Use a proper gap setting tool for accuracy.
Ordering & Support
- Do you offer technical support for installation?
- Yes. Our team can provide basic guidance. For complex machinery, always consult your plant’s vibration specialist or Bently Nevada representative.
- What if I need a different thread or cable length?
- We stock many variants. Contact us with your required specifications (e.g., M10x1 thread, 1m cable).
