Bently Nevada 3300 NSv Metric – Proximity Probes 330904-00-12-10-01-CN

Bently Nevada 3300 NSv Proximity Probe: High-Performance Industrial Sensing

Description

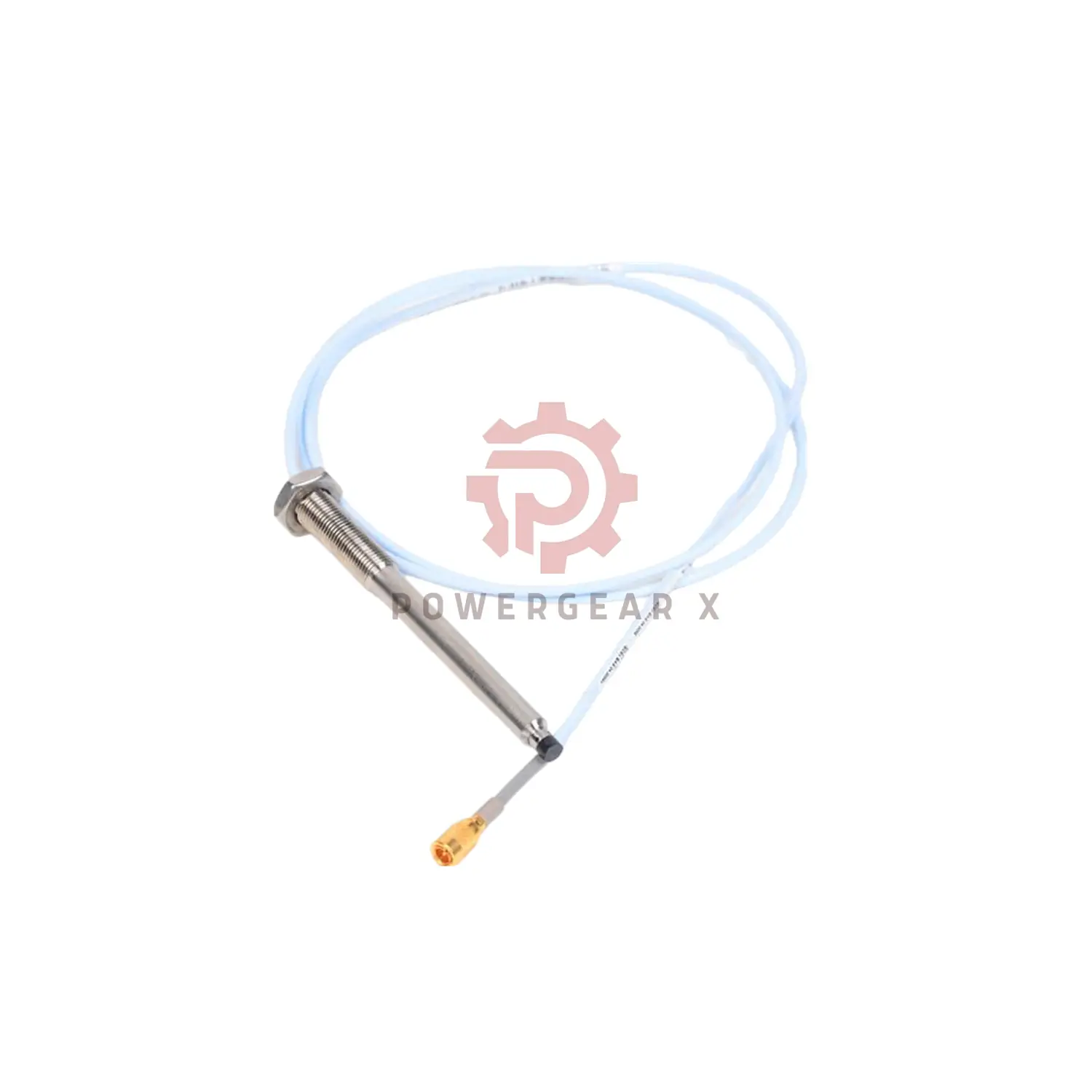

The 3300 NSv Proximity Probe ( 330904-00-12-10-01-CN) by Bently Nevada delivers precise vibration and position measurement for industrial machinery. Designed with enhanced chemical resistance, it outperforms older models like the 3300 RAM probe. Features a PPS tip and 304 SST case for durability in harsh environments. Compatible with legacy Bently Nevada systems for easy upgrades.

Technical Data

• Brand: Bently Nevada
• Model: 330904-00-12-10-01-CN
• Suffix Breakdown:
  • -00- 0mm Unthreaded Length
  • -12- 120mm Case Length
  • 10 1.0m Cable
  • 01 Miniature ClickLoc Connector
  • CN Country-Specific Approval
• Range: 0.25-1.75mm (1.5mm linear)
• Accuracy: ±0.06mm deviation
• Output: 7.87V/mm (±12.5%)
• Temp Range: -52°C to +177°C

Installation Guide

• Mounting: M8x1 thread (max 12mm engagement)
• Torque: 5.1N•m recommended (7.3N•m max)
• Bend Radius: >25.4mm
• Target Size: Min 13mm diameter

Key Features

• Sealed Viton O-ring for pressure differentials
• 75Ω FEP-insulated coaxial cable
• 0-10kHz frequency response
• Shielded triad cable support (305m max)

Compatibility

Direct replacement for 3300 RAM probes and extension cables. Superior side-view performance vs 190-series probes.

Certifications

Meets country-specific approvals (marked by “CN” suffix).

Package Includes

• 1x 3300 NSv Probe (1.0m cable)
• ClickLoc connector protector
• Factory documentation

Real-World Applications

• Gas compressor shaft monitoring
• Steam turbine vibration analysis
• Pump bearing wear detection
