Product details

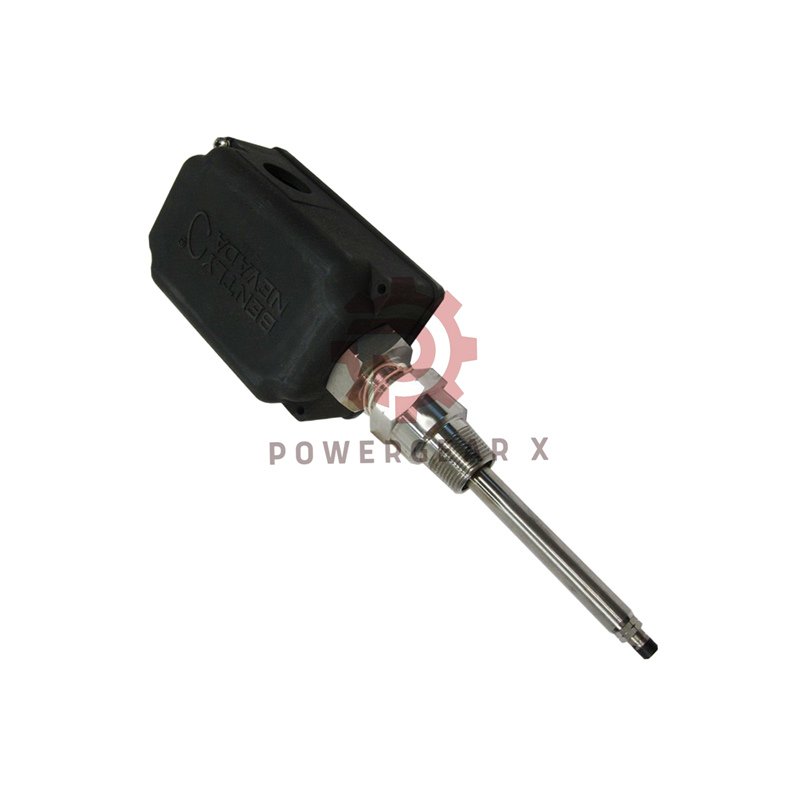

High-Strength Plastic Probe Housing
The Bently Nevada 31000-00-00-00-120-00-02 is a rugged empty housing. It is made from conductive PPS plastic for hazardous areas. This unit is ideal when you need to install your own 8mm probe. It offers superior impact resistance and environmental sealing.
Part Number Details
Full Model: 31000-00-00-00-120-00-02
- 31000: Base Model – Plastic Proximity Probe Housing
- 00 (A): Probe = Not Included
- 00 (B): Cable = Not Included
- 00 (C): Standoff Adapter = Not Included
- 120 (D): Probe Penetration Sleeve = 12 inches
- 00 (E): Fittings = Not Included
- 02 (F): Mounting Thread = 3/4-14 NPT
Product Specifications
- Brand: Bently Nevada
- Product Line: 31000 Series Housings
- Exact Part: 31000-00-00-00-120-00-02
- Housing Type: Empty Enclosure for 8mm Probes
- Body Material: Conductive, Glass-Reinforced PPS Plastic
- Internal Sleeve: 304 Stainless Steel (12-inch length)
- Mounting: 3/4-14 NPT Female Thread
- Seals: Neoprene O-Rings
- Environmental Rating: Type 4X, IP66 (Dust-tight, Water Jet Proof)
- Hazardous Area Rating: CENELEC EN50014 (Electrostatic Dissipation)
- Temperature Range: -51°C to +105°C
- Impact Strength: Certified to 7 Joules (5.2 ft-lb) at room temperature
- Load Strength: Supports 205 lbs (912 N) at 1.5-inch overhang
- Retaining Nut Torque: 29.4 N·m (260 in-lb) Recommended
- Weight: Approximately 1.2 kg (2.6 lb)
- Origin: Made in USA
- Condition: New, Original
- Coverage: 12-Month Manufacturer Warranty
Key Features & Benefits
- Corrosion Resistant: Plastic body will not rust, ideal for chemical or marine environments.
- Long Sleeve: 12-inch penetration for deep measurement applications.
- Extreme Durability: Tested to withstand high impact at very low and high temperatures.
- Hazardous Area Safe: Conductive material prevents static buildup in explosive atmospheres.
- High Sealing: IP66 and Type 4X ratings ensure protection against dust and powerful water jets.
Installation & Purchasing FAQ
Product Configuration
- What probe and cable do I need to buy separately for this housing?
- You need a standard Bently Nevada 3300 XL 8mm proximity probe with a 5/8-18 UNF thread. You must also provide the appropriate triaxial cable to connect it to your monitor.
Material & Application
- Why choose a plastic housing over a metal one?
- Choose the 31000-00-00-00-120-00-02 for superior corrosion resistance where aluminum might degrade, or where non-sparking, non-conductive exterior properties are beneficial.
Ratings & Compliance
- What is the difference between Type 4X and IP66 ratings?
- Type 4X is a NEMA standard for corrosion and water resistance. IP66 is an international standard for being dust-tight and protected against heavy seas or powerful water jets. This housing meets both.
Warranty & Support
- Does the 12-month warranty cover the plastic housing if it cracks?
- The warranty covers defects in materials and workmanship. Cracking under normal use per specifications is covered. Damage from excessive force or improper installation is not.
Logistics & Delivery
- How is this housing packaged for shipping?
- It is shipped in protective factory packaging. We use reliable carriers like DHL, FedEx, and UPS to ensure it arrives safely at your site, ready for installation.
Order Your Housing Unit
For pricing and delivery of the 31000-00-00-00-120-00-02 housing, contact our sales department.
