Bently Nevada 24701-34-05-00-031-04-02 Proximity Probe Housing Assembly 3300 XL 8mm

Assembly Overview

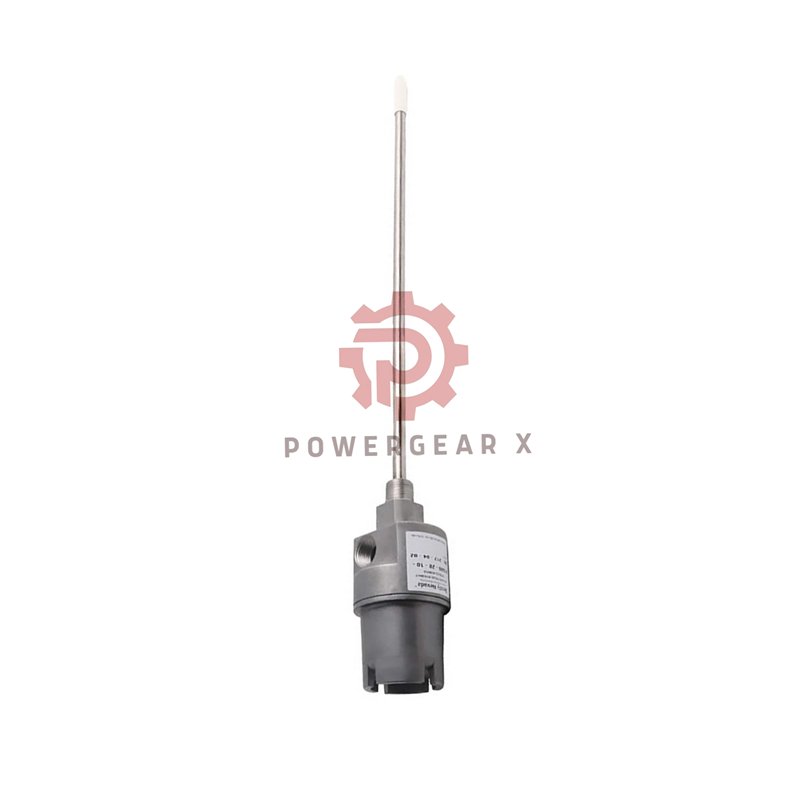

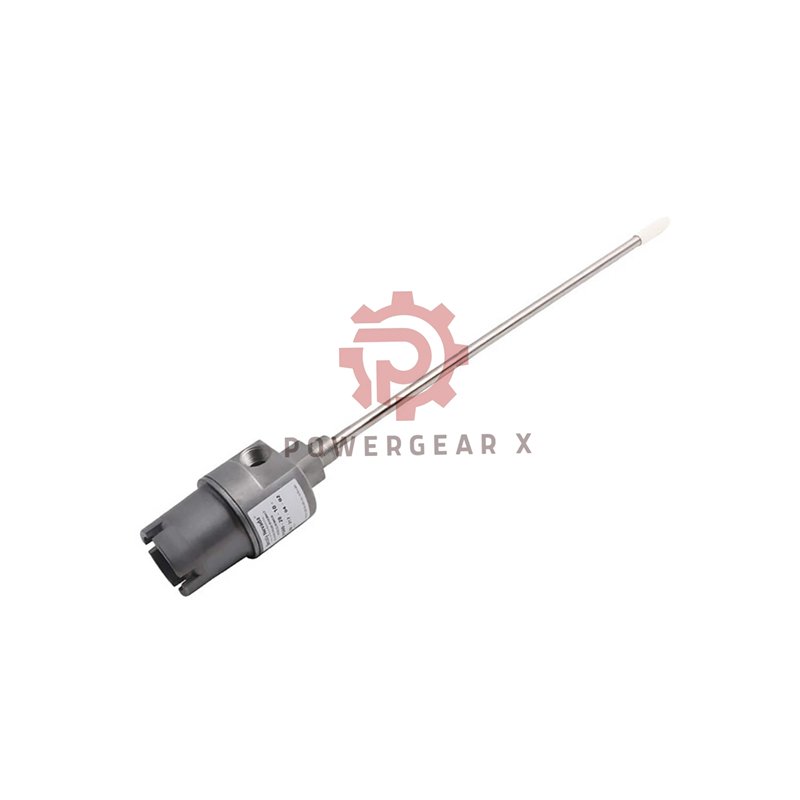

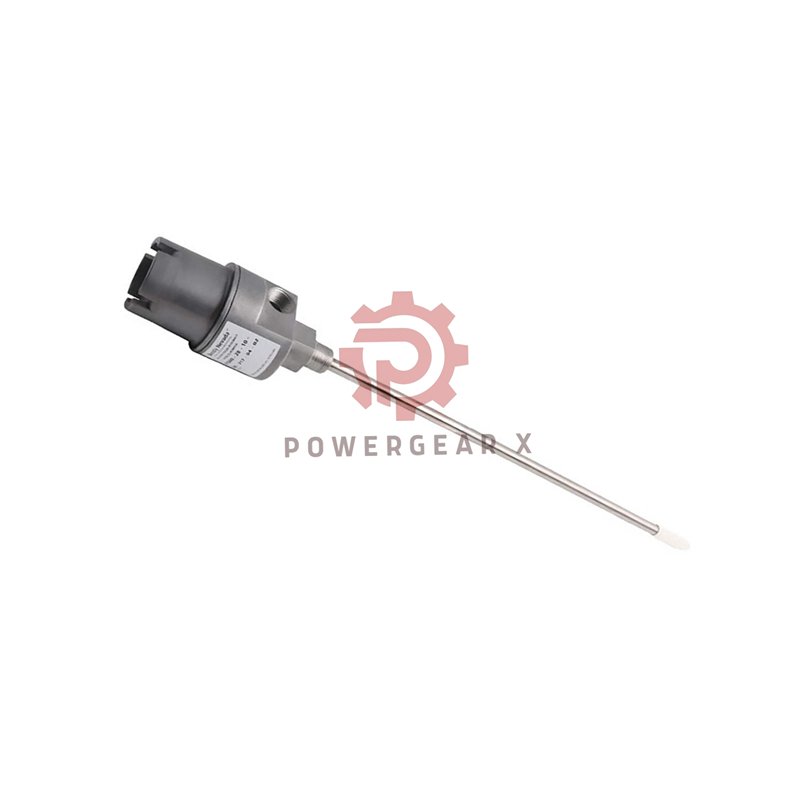

This Bently Nevada 24701 Proximity Probe Housing Assembly protects and positions the sensor in harsh environments. It comes factory-sealed and new in original packaging. The rugged stainless steel body accepts a 3300 XL 8 mm probe with connector protector.

• Complete solution: housing, probe sleeve, dome cover, O-rings, thread seal, and NPT plug.
• Secure mounting: 3/4-14 NPT thread for conduit connections.
• 12-month warranty against defects.

Model & Suffix Breakdown

• 24701-proximity-probe – Main assembly housing
  • 34 – Includes 3300 XL 8 mm probe with connector protector (hazardous area approvals selectable).
  • 05 – Probe cable length: 0.5 m (20 in).
  • 00 – No standoff adapter.
  • 031 – Probe penetration: 3.1 inches.
  • 04 – Fittings: one 3/4-14 NPT plug only.
  • 02 – Mounting thread: 3/4-14 NPT.
• Body material: 303 stainless steel; sleeve: 304 stainless steel.
• Weight: 1.8 kg (4.1 lb) typical, without fittings.
• Max (C)+(D) dimension: 13.5 in (34.3 cm).

What’s Inside

• Dome cover (screws into body).
• Threaded ports for conduit.
• Probe sleeve (optional length).
• O-rings and thread seal.
• Reverse-mount proximity probe (3300 XL 8 mm).
• One 3/4-14 NPT plug.
• Standoff adapter not included (option 00).

Installation & Mechanical Data

• Mounting thread: 3/4-14 NPT.
• Probe penetration setting: 3.1 inches (factory configured).
• Conduit fitting: one 3/4-14 NPT plug provided.
• Probe visibility: part and serial numbers not visible after installation.
• Maximum assembly length: 13.5 in (34.3 cm).

Environmental & Physical Ratings

• Body: 303 stainless steel; sleeve: 304 stainless steel – excellent corrosion resistance.
• Probe cable: 0.5 m armored, with connector protector.
• Weight: about 1.8 kg (shipping weight may include packing).
• Sealing: O-rings and thread seal prevent contamination.

Compatibility & System Use

• Designed for 3300 XL 8 mm proximity probes (included).
• Works with all Bently Nevada monitors and Proximitor sensors.
• Hazardous area approvals possible via probe option 34 (selectable).

Package & Warranty

• Factory sealed: new original packing.
• Warranty: 12 months against material or workmanship defects.
• Shipping: via FedEx, UPS, or DHL – tracking provided.

Frequently Asked Questions (FAQ)

• Can I use this housing with an older 7200 series probe?No, it is specifically designed for 3300 XL 8 mm reverse-mount probes. Using other probes may not seal or fit correctly.
• What does “probe penetration 3.1 in” mean for installation?It sets how far the probe tip extends from the housing face. This 031 option is preset; you cannot adjust it in the field.
• Is the probe cable replaceable if damaged?The probe and cable are integral. You must replace the entire assembly if the cable breaks. Order the 24701-proximity-probe with same suffix.
• Do I need to order the probe separately?No. Suffix “34” means the 3300 XL 8 mm probe is already included inside the housing.
• Which conduit fitting is supplied?Option 04 provides one 3/4-14 NPT plug. You can add your own conduit connector or use this plug to seal the port.

Selection Guide

• Need a different probe cable length? Suffix 05 = 0.5 m. For longer cables, choose a different option (e.g., 10 for 1.0 m).
• Require a standoff adapter? This unit is 00 = none. Contact us if you need one.
• For hazardous locations, suffix 34 includes a probe with selectable approvals – verify with your area classification.
• Always confirm mounting thread: 02 = 3/4-14 NPT. Other thread options available upon request.

For inquiries or custom orders: Email sales@powergearx.com or WhatsApp +86 18030005825.
