Product details
Extra-Long Reach Hazardous Area Assembly

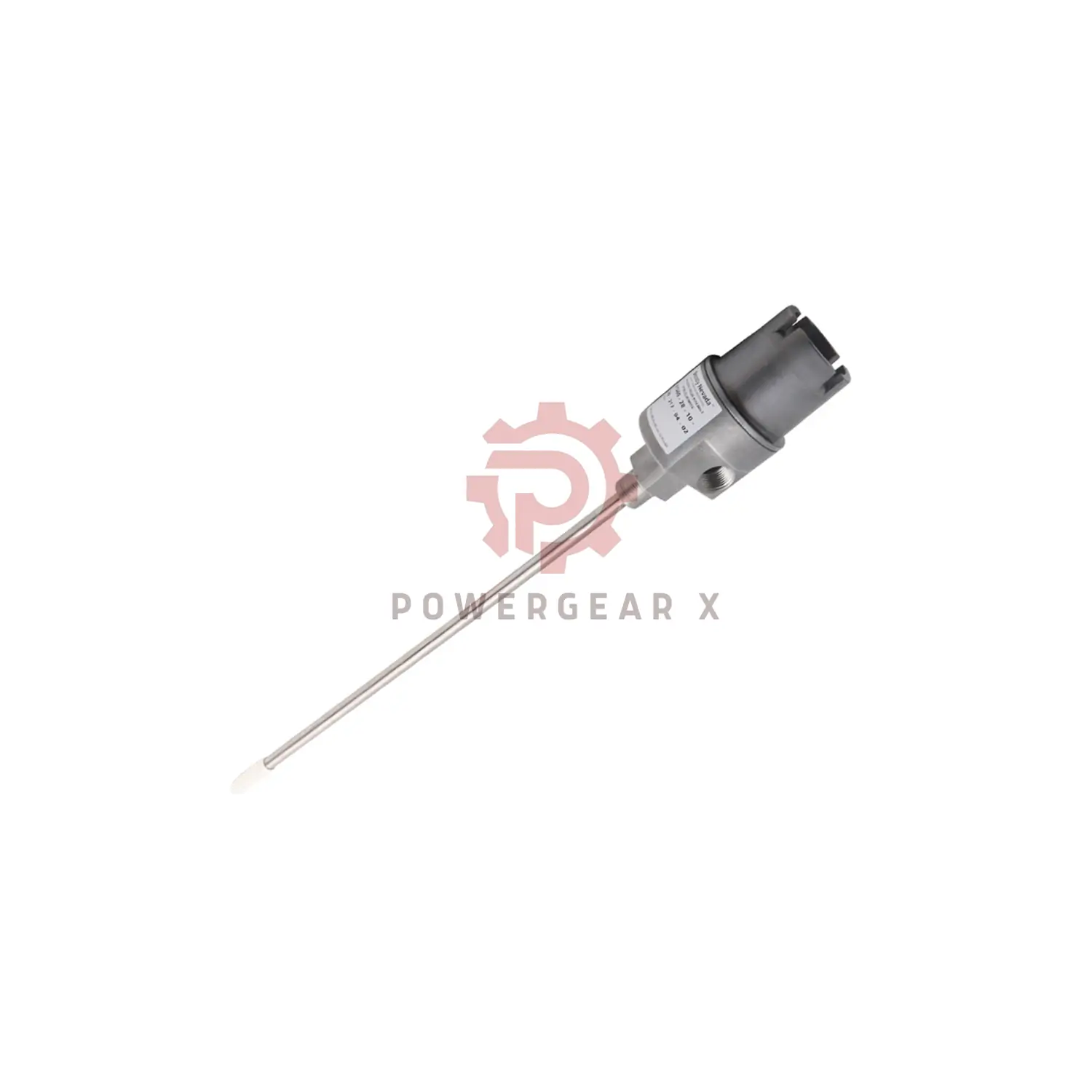

The Bently Nevada 21000-16-10-15-102-03-02 is designed for deep penetration applications. This complete housing kit includes a 10.2-inch probe, standoff adapter, and full sealing fittings. It provides certified protection for vibration monitoring in demanding environments.
Part Number Decoded
- Core Product: 21000 (Aluminum Housing Assembly)
- Detailed Configuration:
- 16: Equipped with 3300 XL 8mm Probe
- 10: Probe Cable = 1.0 Meter Length
- 15: Includes 1.5-Inch Standoff Adapter
- 102: Probe Penetration Depth = 10.2 Inches
- 03: Comprehensive Fitting Kit Included
- 02: Mounting Thread = 3/4-14 NPT
Complete Product Specifications
- Brand: Bently Nevada
- Series: 21000 Probe Housing Assemblies
- Specific Model: 21000-16-10-15-102-03-02
- Construction: Aluminum Body with 304 Stainless Steel Sleeve
- Integrated Sensor: 3300 XL 8mm Proximity Probe
- Electrical Lead: 1.0 m (39 in) Connected Cable
- Mounting: 3/4-14 NPT with 1.5″ Standoff Spacing
- Key Feature: Exceptional 10.2-Inch Probe Reach
- Total Assembly Length (C+D): 32.9 in (83.5 cm)
- Length with Visible Probe Data: 17.0 in (43.18 cm)
- Included Fittings Package:
- One 3/4-14 NPT Pipe Plug
- One 3/4-14 to 1/2-14 NPT Reducer Bushing
- One Adjustable Cable Seal Grip with Three Grommets
- Safety Certifications: CSA Type 4, Explosion-Proof, API 670 Standard
- Approximate Weight: 1.1 kg (2.4 lb)
- Item Condition: New, Original, Factory-Sealed
- Warranty Period: 12 Months from Purchase Date
Primary Applications & Benefits
- Deep Machine Cavities: The 10.2″ probe reaches measurement points far inside gearboxes or casings.
- Versatile Mounting: The 1.5″ standoff provides clearance from hot or uneven surfaces.
- Complete Sealing Solution: The included fitting kit ensures a weatherproof and explosion-proof seal for the cable entry.
- Extended Cable: The 1.0m internal cable offers more flexibility for routing to the conduit connection point.
- Regulatory Compliance: Meets critical industry standards for safety and external mounting (API 670).
Technical Support & FAQ
Specifications & Selection
- What applications require a 10.2-inch probe penetration?
- This is for deep-set bearings or shafts located within thick machine walls, large-diameter turbines, or where multiple layers of insulation or casing must be traversed.
Installation & Fittings
- Why are multiple grommet sizes included with the cable seal grip?
- Different cables have different outer diameters. The three grommet sizes (e.g., 1/8-3/16″, 1/4-5/16″, 5/16-3/8″) allow you to create a tight, waterproof seal for the specific cable you are using.
Compliance & Standards
- What is the importance of API 670 compliance?
- API 670 is the industry standard for machinery protection systems. Compliance ensures the housing’s design, materials, and mounting are suitable for critical machinery in sectors like oil & gas and power generation.
Warranty & Reliability
- Are the consumable parts like O-rings covered under the 12-month warranty?
- Yes, all components supplied in the 21000-16-10-15-102-03-02 kit are covered against manufacturing defects for the full warranty period.
Ordering & Shipping
- What is the delivery time for this specific housing assembly?
- We maintain stock for fast dispatch. Delivery speed depends on your location. You can choose from express services like FedEx, UPS, or DHL at checkout for the fastest receipt.
Contact for Pricing and Availability
Interested in the 21000-16-10-15-102-03-02 assembly? Reach out for a quote and technical data.
