Product Overview: Protected Vibration Sensor Kit

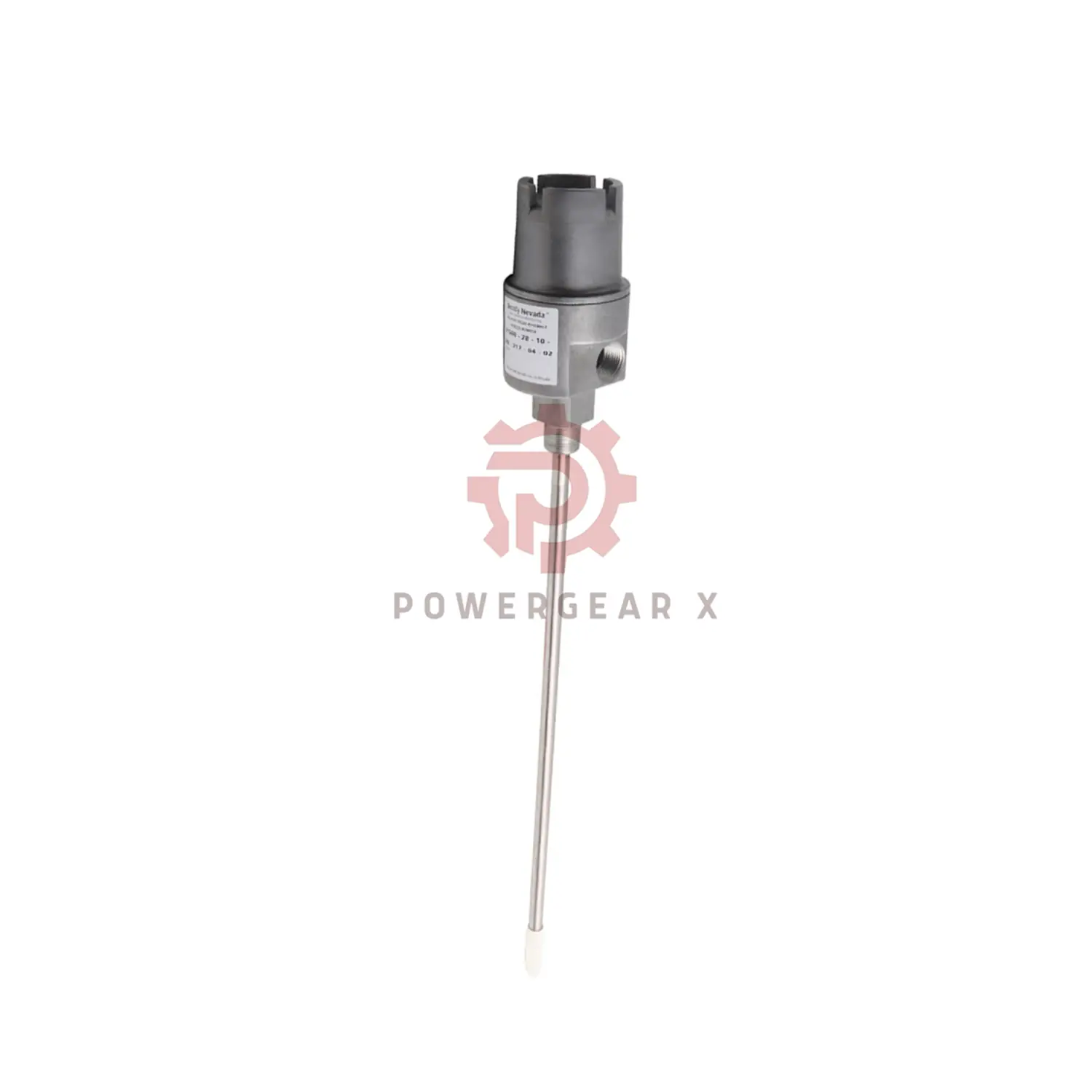

This is the Bently Nevada 21000-16-05-00-055-03-02. It is a complete probe housing assembly. The kit includes a pre-installed 8mm proximity probe. It offers 5.5 inches of probe penetration depth. This solution is ready for tough industrial installation.
Complete Kit Breakdown
- Product Core Details:
- Manufacturer: Bently Nevada
- Full Part Code: 21000-16-05-00-055-03-02
- Product Family: 21000 Housing Assemblies
- Quality: New, Genuine, Factory Fresh
- Coverage: Backed by 12-Month Factory Warranty
- Suffix Code Analysis (Your Configuration):
- 21000: Base Model – Aluminum Housing
- 16: Probe – 3300 XL 8mm with Connector
- 05: Internal Lead – 0.5 Meter Length
- 00: Adapter – No Standoff (Direct Fit)
- 055 Penetration – 5.5 Inch Probe Sleeve
- 03: Fittings – Complete NPT & Seal Kit
- 02: Mounting – 3/4-14 NPT Thread
- Included Components:
- Main Housing: Aluminum with Stainless Steel Insert
- Sealing Kit: Dome Cover, O-rings, Thread Sealant
- Connection Kit: NPT Plugs, Reducer, Cable Grip Seals
- Sensor: Factory-Installed 8mm Proximity Probe
- Key Technical Points:
- Total Length (C+D): Under 13.5 inches
- Approx. Unit Weight: 1.1 kg (2.4 lbs)
- Safety Certs: CSA Explosion-Proof, API 670 Standard
- Use Case: Hazardous Area, Intrinsically Safe Systems
Expert FAQs & Selection Support
Configuration & Use
- What does “probe penetration” of 5.5 inches mean for installation?
It is the length of the probe sleeve that goes into your machine. This 055 version is for medium-thickness walls or casings. - Is the included probe already calibrated?
The probe is a standard Bently Nevada component. Final system calibration is done with the monitor after installation.
Installation & Specifications
- How do I connect my system cable to this housing?
Use the provided cable seal grip. Choose the correct grommet for your cable diameter. This creates a sealed, strain-relieved connection. - Can I use this housing outdoors in the rain?
Yes. The CSA Type 4 rating means it is waterproof and weatherproof. It protects the electronics inside from wet conditions.
Purchasing & Logistics
- My application requires a different mounting thread. What do I do?
The 02 suffix specifies 3/4-14 NPT. Other thread options exist. Contact us with your requirement for the correct part number. - What is the delivery and support process?
We stock the 21000-16-05-00-055-03-02 for quick shipment via FedEx, UPS, or DHL. Your purchase is protected by our 12-month warranty promise.
Choosing the right penetration depth is critical. Send us your machine drawing. We will confirm if the 055 (5.5″) model is perfect for you.
