Bently Nevada – 200355 Accelerometer 200355-09-00-00

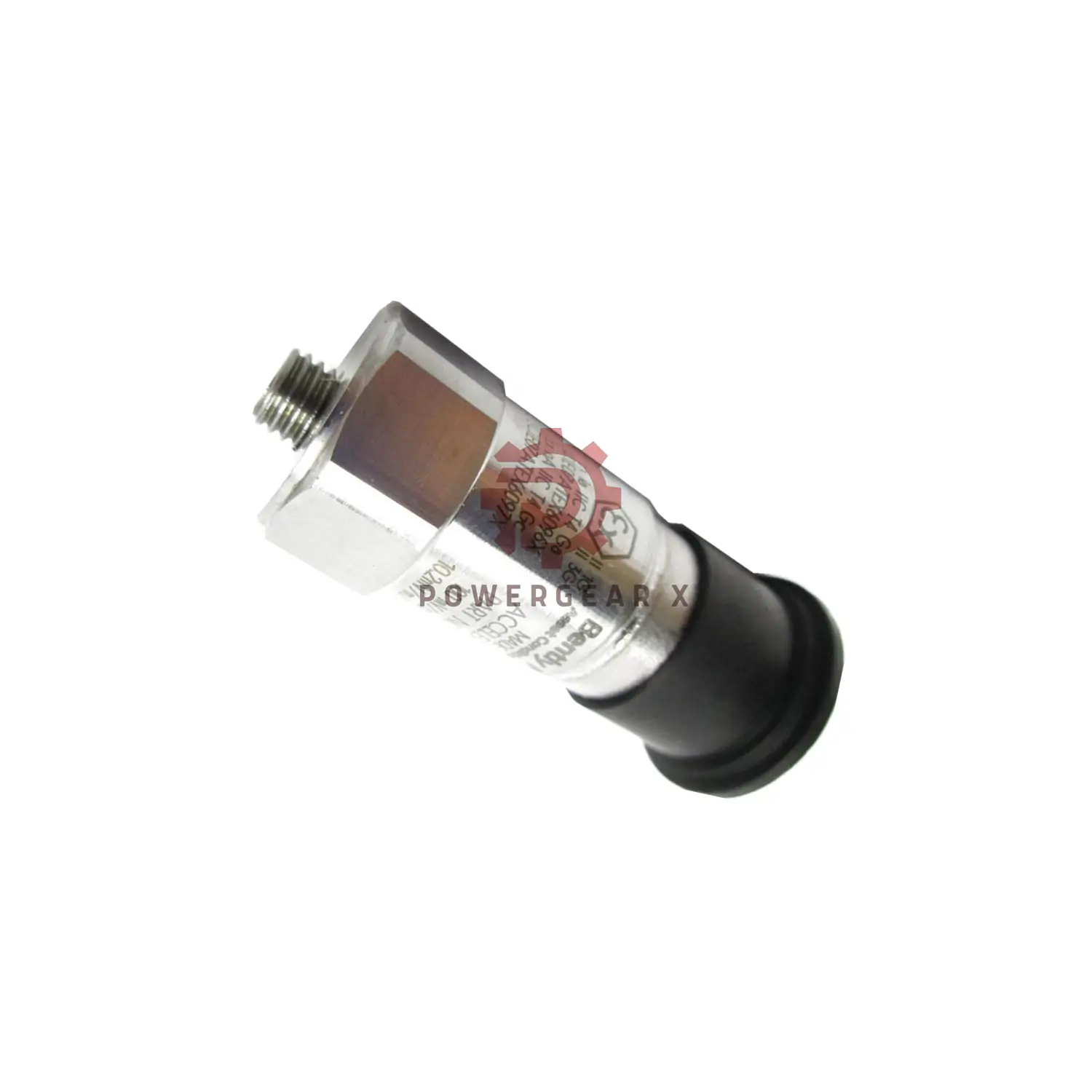

Bently Nevada 200355-09-00-00 Accelerometer Sensor

Key Performance Data

• Sensitivity: 100 mV/g ±20%
• Range: ±50 g
• Frequency Range: 0.5 to 10,000 Hz
• Noise Level: 350 μg (1–10 kHz)
• Output Voltage: 8 to 12 VDC
• Excitation: 18 to 28 VDC
• Input Current: 2 to 20 mA
• Output Impedance: less than 150 ohms
• Linearity: ±1%
• Settling Time: 2.0 seconds

Environmental Ratings

• Temperature: -54°C to +121°C
• Shock Resistance: 5000 g peak
• Humidity: 100%, not submerged
• Sealing: IP68, welded housing

Mounting and Size

• Mounting Thread: 1/4-28 Female
• Mounting Stud: 09 = No stud included
• Max Torque: 2 to 5 ft-lb
• Hex Size: 11/16 inch
• Height: 1.65 inch
• Weight: 0.051 kg

Model Suffix Structure

• 200355 – Accelerometer base model
  • 09 – No mounting stud
  • 00 – 100 mV/g sensitivity
  • 00 – No approvals

What You Get

• 1 x Sensor (Model 200355-09-00-00)
• No mounting stud included
• Protective cover for connector

Shipping and Warranty

• Fast shipping via FedEx, UPS, or DHL
• Delivery in 2 to 4 days worldwide
• 12-month standard warranty
