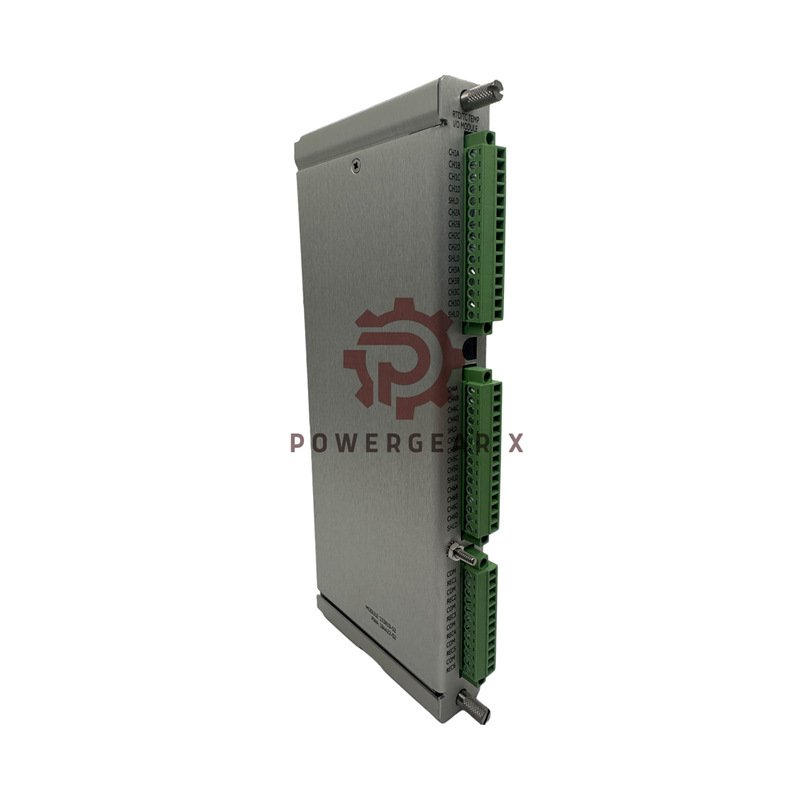

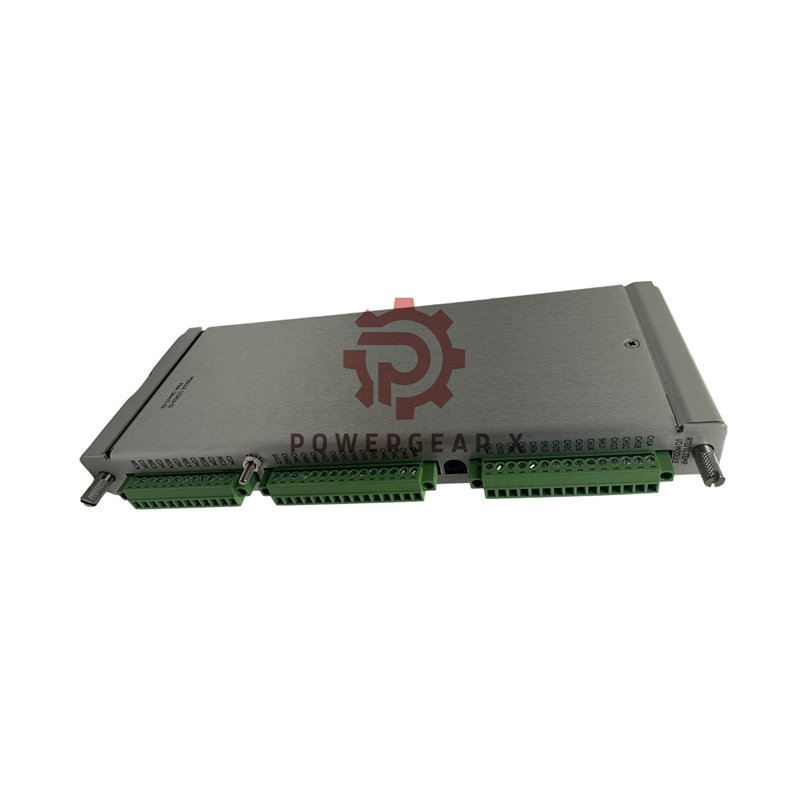

Bently Nevada 133819-02 3500/61 RTD/TC Non-Isolated I/O Module

Bently Nevada 133819-02 3500/61 RTD/TC Non-Isolated I/O Module

• Manufacturer: Bently Nevada
• Product No.: 133819-02
• Type: 3500/61 RTD/TC Non-Isolated I/O Module (Internal Terminations)
• Origin: Made in U.S.A
• Condition: Brand New, Original Factory Packaging
• Warranty: 12 Months
• Shipping: Fast global delivery via FedEx, UPS, DHL

Technical Features

• 6 input channels for RTD or TC transducers
• Input impedance: 10 MΩ per lead
• Nominal power consumption: 9W
• LED indicators: OK, TX/RX, and Bypass
• Recorder outputs: +4 to +20 mA per channel
• Voltage compliance: 0–12V DC, 0–600Ω load range
• RTD current source: 925 ±15 µA @25°C
• Resolution: 0.3662 µA/bit ±0.15% at room temperature

Supported Sensors

• Thermocouples: Type E (-100°C to +1000°C), J (-18°C to +760°C), K (-18°C to +1370°C), T (-160°C to +400°C)
• RTDs: 100Ω platinum (0.00385 & 0.00392), 120Ω nickel, 10Ω copper
• Recommended: 100Ω platinum 0.00385 standard RTD for most applications

Performance Data

• Accuracy: ±1°C (standard rack, external termination)
• Alarm range: 0–100% full-scale (software configurable)
• Alarm delay: Alert 1–60s, Danger 1–60s (configurable)
• Cold Junction Compensation: ±1°C at 25°C
• Resolution: 1°C or 1°F for RTD/TC inputs

Environmental Conditions

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• EMC Compliance: EN 61000-6-2 / EN 61000-6-4
• Electrical Safety: EN 61010-1, LV Directive 2014/35/EU
• Cyber Security: Designed to meet IEC 62443
• Functional Safety: SIL 2 Certified
• RoHS Compliant, FCC Part 15 approved

Physical Details

• Dimensions: 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in)
• Weight: 0.45 kg (1.0 lb)
• Rack Slot Requirement: 1 full-height rear slot

Suffix Structure

• 133819-02 → RTD/TC Non-Isolated I/O Module (Internal Termination)
• Isolation: 500Vdc system isolation / 250Vdc channel isolation
• Agency Approval: Pending FCC, CE, SIL2, DNV GL, ABS

Key Benefits

• Accurate temperature monitoring across multiple sensor types
• Durable industrial design with thermal protection
• Meets international standards for EMC and safety
• Easy software configuration with no calibration required
• Reliable signal integrity with high input impedance
• Global technical support: sales@powergearx.com | +86 18030005825

Frequently Asked Questions

Q1: What type of sensors work with the Bently Nevada 133819-02?
It supports RTDs (platinum, nickel, copper) and thermocouples (E, J, K, T types).

Q2: Does it need calibration after installation?
No calibration is required. Configuration is done via 3500 software.

Q3: Can it operate in high vibration environments?
Yes. It’s designed for industrial use with shock and vibration tolerance per DNV GL and ABS standards.

Q4: What safety certifications does it have?
It meets SIL 2, CE, FCC, EMC, RoHS, and IEC 62443 cybersecurity standards.

Q5: How do I choose between isolated and non-isolated I/O modules?
Non-isolated modules are used in standard applications. Isolated ones are for higher noise or ground loop environments.
