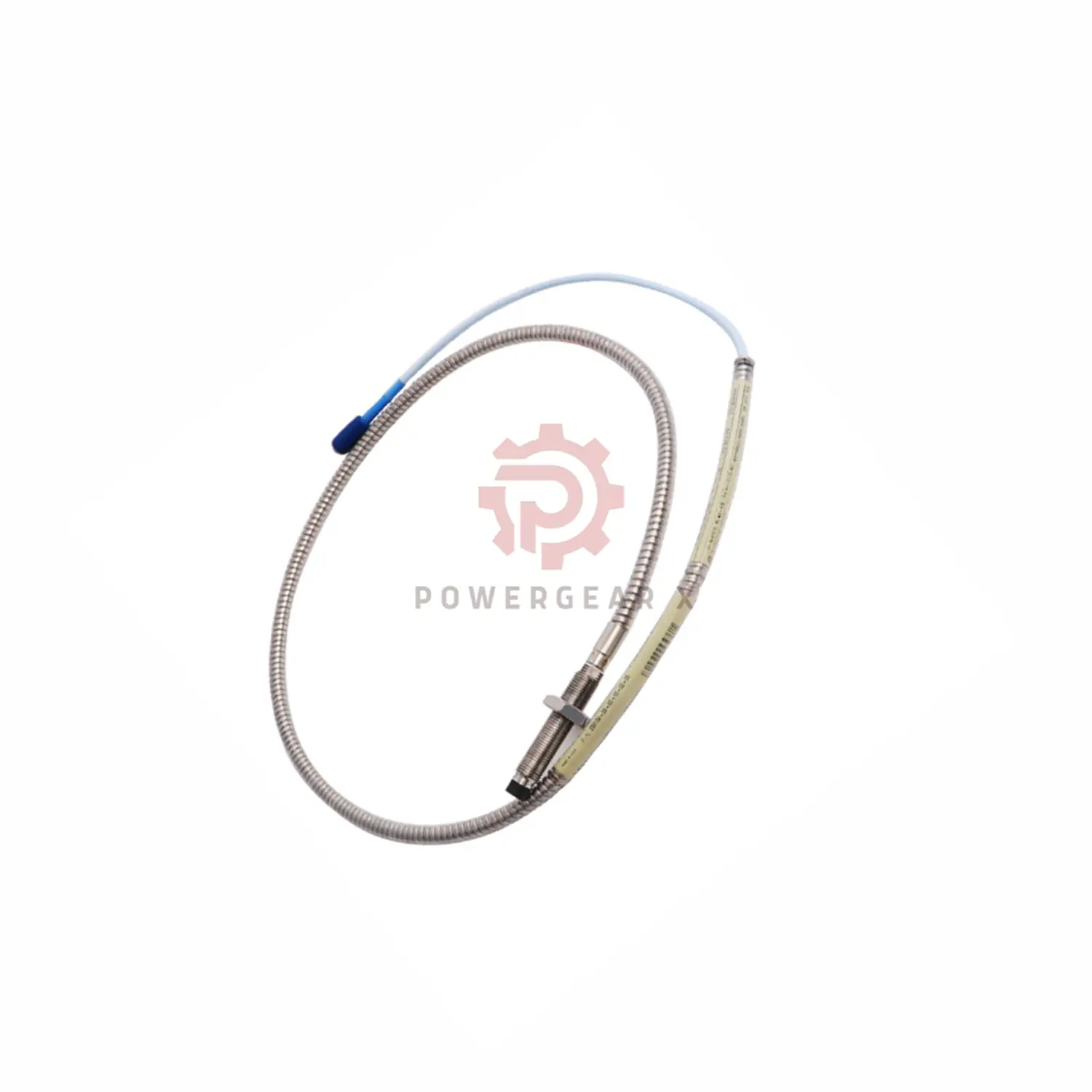

Bently Nevada 11 mm Proximity Probe 330708-00-24-10-01-05

Bently Nevada Compact Proximity Probe with Connector Protection

U.S.-made 11mm sensor with 1m cable and protective connector. Ideal for space-constrained installations with multiple certifications.

Core Specifications

• Part Number: 330708-00-24-10-01-05
• Cable Length: 1.0 meter (3.3 ft)
• Case Length: 2.4 inches
• Thread Type: 5/8-18 UNF
• Resistance: 5.9Ω ±0.5

Suffix Configuration

00

Unthreaded length: 0in

24

Case: 2.4in

10

Cable: 1.0m

01

Connector: ClickLoc with protector

05

Approvals: Multiple certifications

Performance Data

• Temperature Range: -51°C to +177°C
• Min Bend Radius: 25.4mm
• Response Time: <5ms
• Vibration Rating: Up to 15g
• Seal Type: Viton O-ring

Electrical Characteristics

• Cable type: 75Ω triaxial FEP
• Insulation resistance: 100MΩ min
• Dielectric strength: 500V AC
• Signal stability: ±0.5% full scale

Installation Guide

• Max thread depth: 0.938 inch
• Recommended torque: 133 in-lb
• Min install temp: -34°C (-30°F)
• Use connector protector in humid areas
• Max cable pull: 330N (75 lb)

Certifications

Multiple international approvals (Option 05). COO available on request.

Package Contents

• 1x Proximity probe
• Connector protector
• Installation manual
• 12-month manufacturer warranty

Shipping Options

FedEx | UPS | DHL – Global delivery

FAQ

Q: Why 1m cable length?
A: Ideal for installations where monitor is close to measurement point.

Q: What’s the connector protector?
A: Extra shield preventing damage during installation.

Q: Chemical resistance?
A: Excellent – stainless steel case and PPS tip.

Q: Minimum target size?
A: 8.9mm diameter. Use 13mm for best results.

Q: Warranty coverage?
A: 12 months for manufacturing defects.
