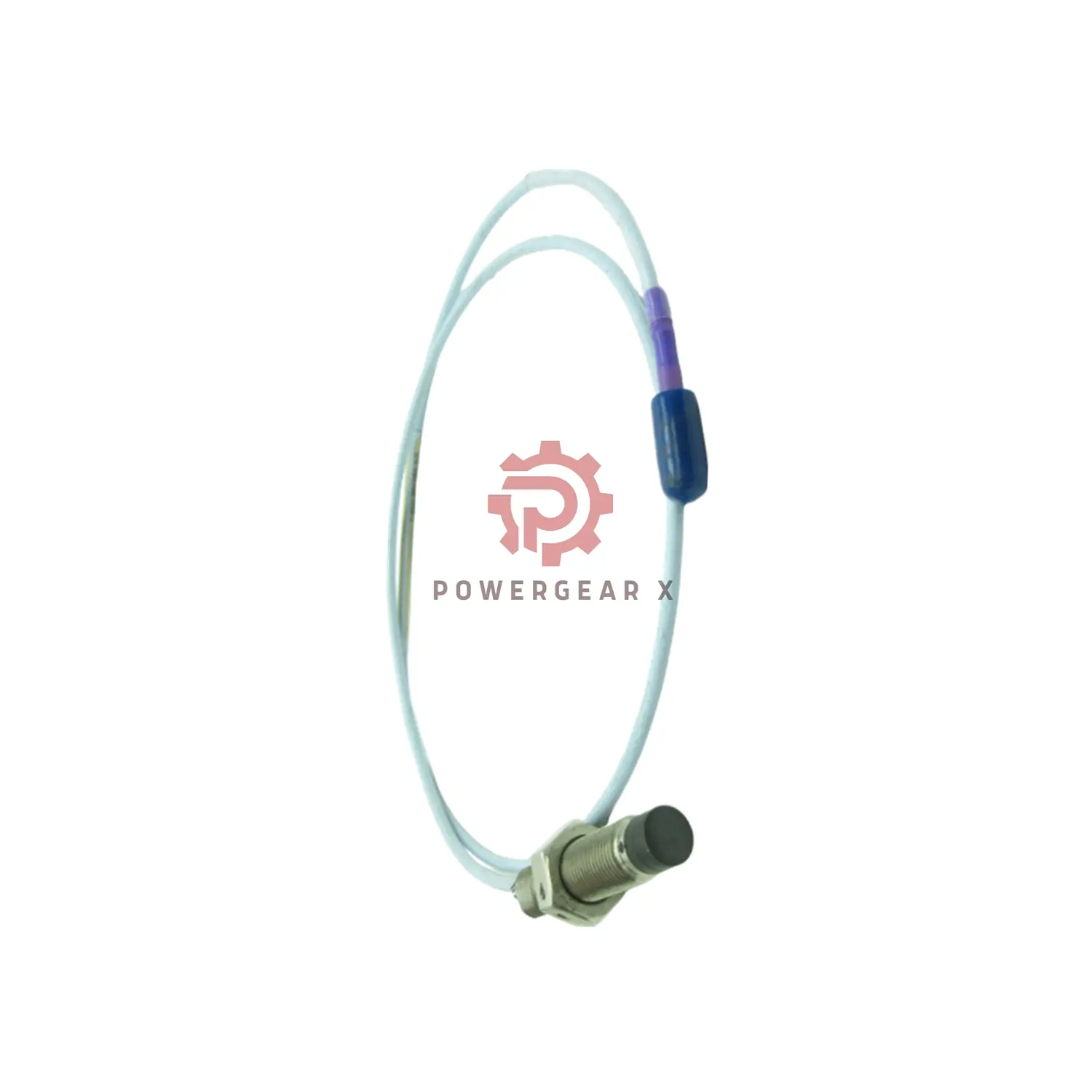

Bently Nevada 11 mm Proximity Probe 330707-00-62-10-01-00

Bently Nevada Long-Case Vibration Probe (6.2″)

Extended 6.2-inch probe body for deep installations. Includes connector protector and 1m cable. Made in USA with stainless steel construction. Ideal for hard-to-reach machinery points.

Model Configuration

• Full Code: 330707-00-62-10-01-00
• Case Length: 62 → 6.2 inch extended body
• Cable Length: 10 → 1.0 meter
• Connection: 01 → ClickLoc with protector
• Thread Type: 5/8-18 UNF

Critical Specifications

• Electrical: 5.9Ω ±0.5 resistance
• Weight: 0.17kg
• Max Torque: 45.2 N•m (400 in•lb)
• Min Bend Radius: 25.4mm (1.0 in)
• Thread Engagement: 0.938 in max

Environmental Ratings

• Temp Range: -51°C to +177°C
• Seal Material: Viton O-ring
• Case Material: AISI 304 stainless steel
• Insulation: FEP triaxial cable
• Warning: Avoid below -34°C

Package & Support

• 6.2″ probe with connector protector
• Installation documentation
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL global
• Certificates: COO available

Installation Guide

• Recommended torque: 15.2 N•m
• Max connector torque: 0.565 N•m
• Maintain minimum bend radius
• Install above -34°C temperature
• Confirm pressure requirements

Frequently Asked Questions

• Q: Why longer case length?
  A: For mounting in deep cavities
• Q: Pressure rating?
  A: Contact for custom testing
• Q: Material compatibility?
  A: Factory set for steel targets
• Q: Cable replacement?
  A: Not field-repairable
