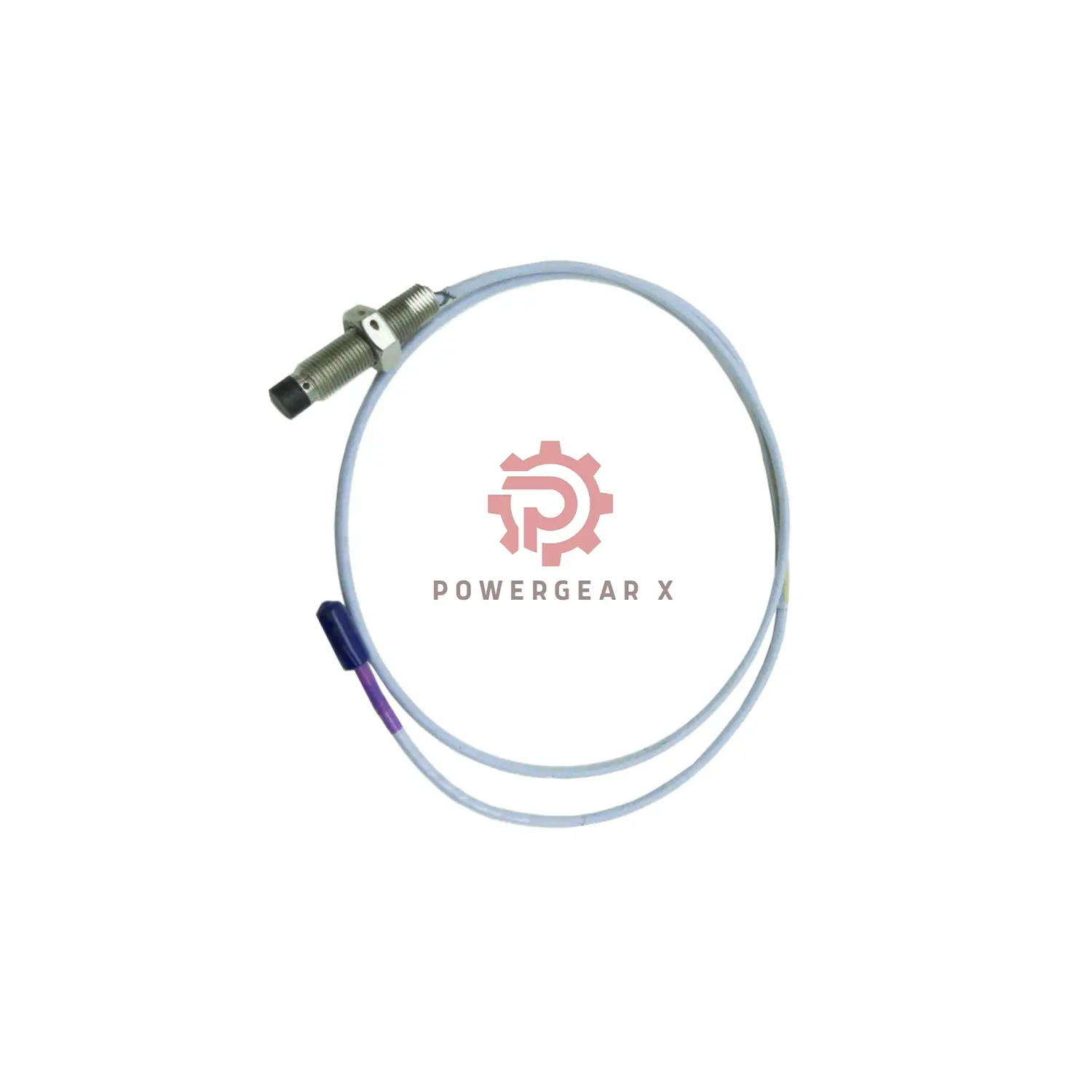

Bently Nevada 11 mm Proximity Probe 330703-000-090-10-02-00

Bently Nevada 330703-000-090-10-02-00 Sensor Details

Technical Features

Linear Range: 0.5-4.6mm dynamic gap
Frequency Response: 0-12 kHz
Insulation Resistance: 100MΩ at 500VDC
Vibration Limit: 20g peak (10-2000Hz)
Housing Material: 304 SST corrosion resistant

Model Code Explanation (330703-000-090-10-02-00)

• 330703 – Base model
• 000 – Unthreaded section (0mm)
• 090 – Case length (90.0mm)
• 10 – Cable length (1.0m)
• 02 – ClickLoc connector type
• 00 – No safety certification

Industry Challenges Solved

Wind turbine gearbox monitoring in salt spray
High-precision CNC machine spindle tracking
Subsea equipment position verification
Nuclear plant coolant pump safety checks

Performance Data

Temperature Drift: 0.02%/°C
Magnetic Immunity: <0.03V/gauss
Cable Bend Radius: 25mm minimum
Thread Engagement: 21mm max depth

Mounting Best Practices

Pre-torque threads to 15N·m
Align probe tip perpendicular (±3°)
Use anti-seize on M14x1.5 threads
Verify ground continuity after install

Package Overview

Factory-sealed probe with FEP cable
Installation torque guidelines
Material compliance sheet
Warranty terms (12 months)

Global Logistics

FedEx express (1-3 business days)
UPS hazardous material approved
DHL temperature-controlled option
