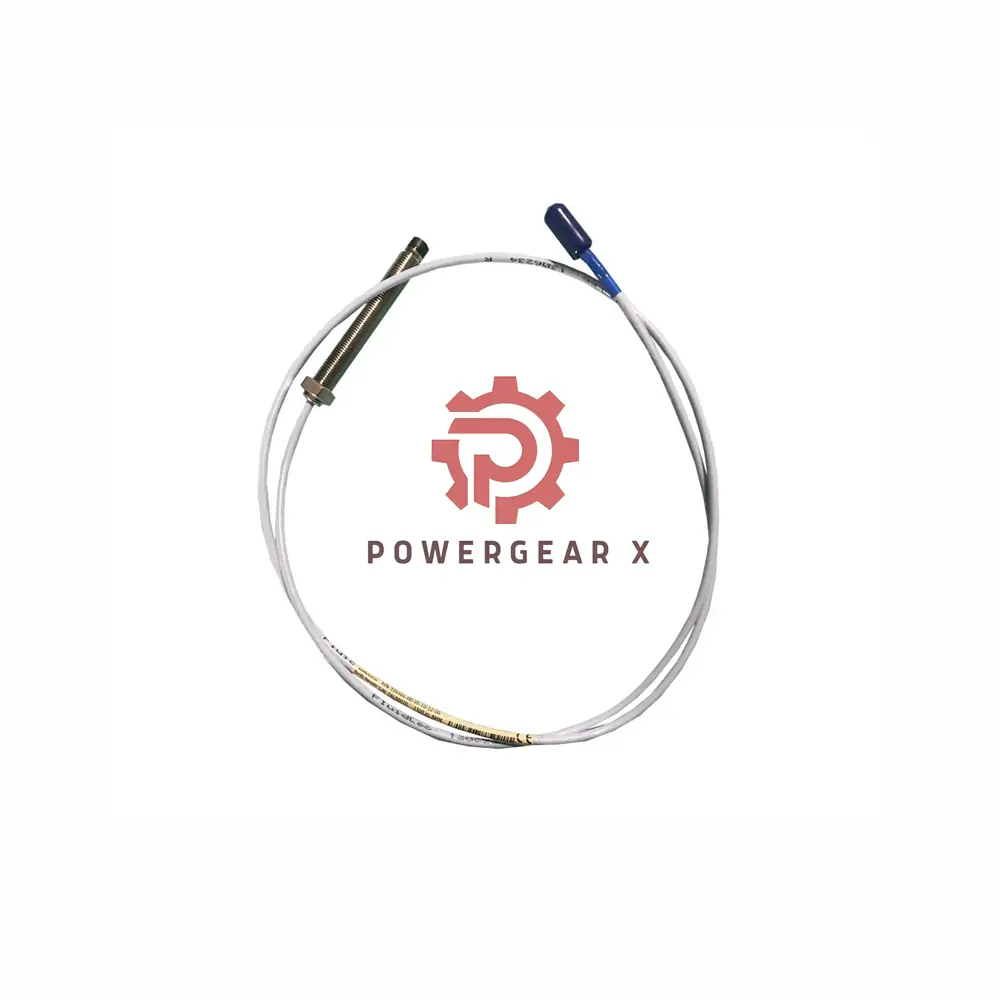

Bently Nevada 11 mm Proximity Probe 330702-00-10-90-12-00

Bently Nevada 330702 Armored Probe with 9m FluidLoc™ Cable

Heavy-duty moisture-resistant vibration monitoring. Made in USA. Global shipping available.

Complete Part Number Breakdown

• Root: 330702 (Armored probe)
• Unthreaded: 00 (0.0″)
• Case: 10 (1.0″)
• Cable: 90 (9.0m/29.5ft)
• Connection: 12 (FluidLoc™)
• Approvals: 00 (Standard)

Premium Features

• Armored housing – Industrial protection
• FluidLoc™ technology – Water/moisture resistance
• 9m long cable – Flexible installation
• High-temp PPS tip (-51°C to +177°C)
• Stainless steel construction

Technical Specifications

• Model: 330702-00-10-90-12-00
• Resistance: 8.5Ω ±1.1Ω
• Cable Type: 75Ω triaxial FluidLoc™
• Thread Options: 1/2-20 UNF or M16x1.5
• Min Bend Radius: 25.4mm (1.0″)
• Weight: 0.17kg (0.37 lbs)
• Install Torque: 15.2 N•m max
• Connector Torque: Finger tight only

Installation Guide

• Apply 15.2 N•m torque maximum
• Hand-tighten connectors only
• Maintain >25.4mm cable bend
• ⚠️ Never expose below -34°C

Shipping & Warranty

• 12-month warranty
• Express options: FedEx, UPS, DHL
• Worldwide delivery

Expert FAQs

• Q: What environments need FluidLoc™?
  A: Humid, wet, or washdown areas
• Q: Armor vs standard probes?
  A: Extra crush protection in tough locations
• Q: Cable length options?
  A: 1m, 5m, or 9m (this is 9m)
• Q: Thread compatibility?
  A: 1/2-20 UNF (0.75″ max) or M16x1.5 (24mm)
• Q: Can I submerge this probe?
  A: FluidLoc™ resists moisture but not full submersion
