Product details

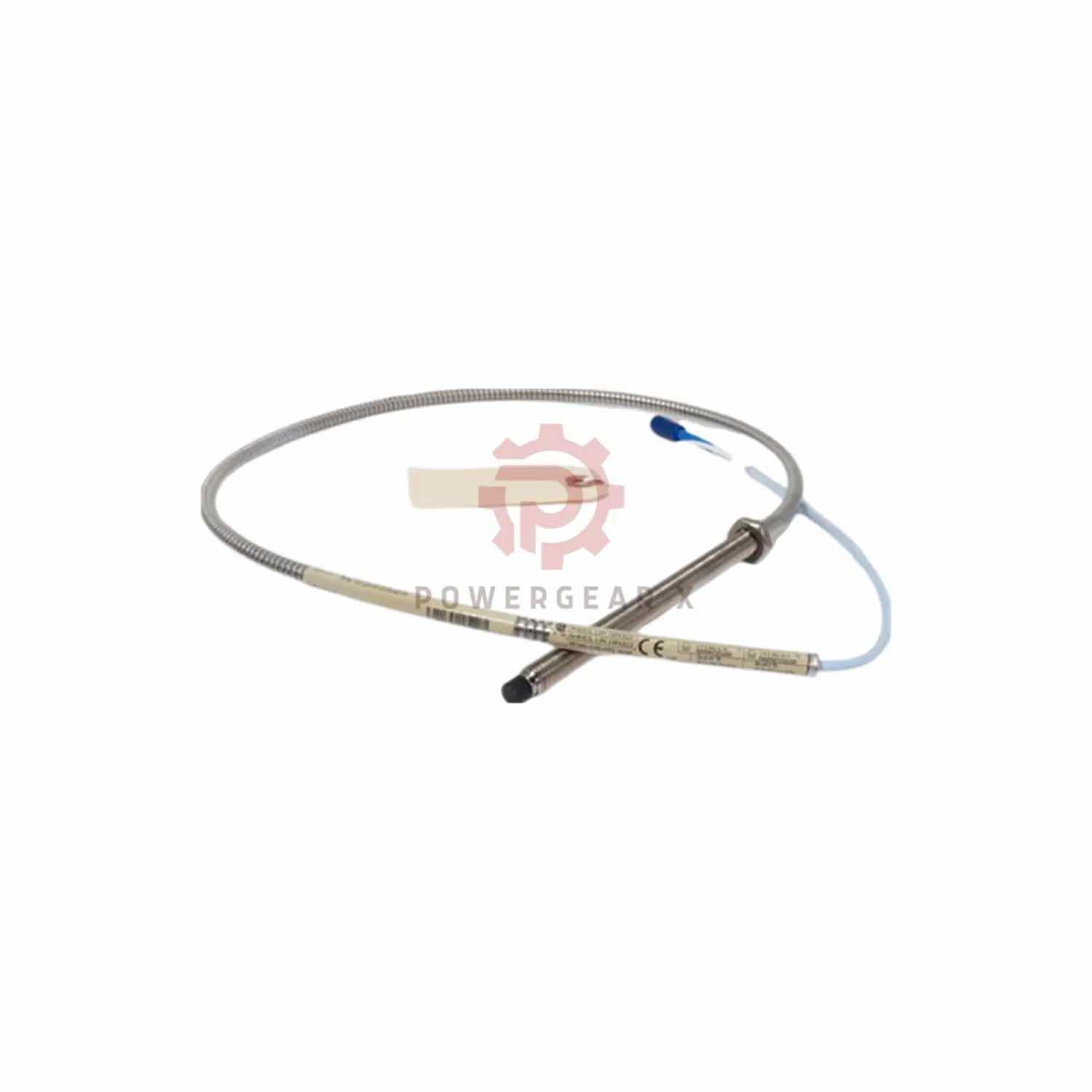

330702-00-10-50-02-00 – Long-Reach 5m Proximity Probe for Machinery Monitoring
Extended Range Vibration Sensing
Monitor hard-to-reach equipment with Bently Nevada’s 5-meter probe. Perfect for large turbines, generators, and pumps where sensors must be mounted remotely. Withstands extreme heat up to 177°C (351°F) in power plants and refineries.
Part Number Explained
330702-00-10-50-02-00 means:
- 330702: 11mm armored probe
- 00: 0″ unthreaded length
- 10: 1.0″ case length
- 50: 5-meter cable
- 02: ClickLoc connector
- 00: No special approvals
Key Specifications
- Cable Length: 5 meters (16.4 ft)
- Resistance: 7.2Ω ±0.8Ω
- Thread: 1/2-20 UNF
- Max Torque: 15.2 N•m
- Bend Radius: 25.4mm (1″)
- Weight: 0.17 kg
- Seal: Viton O-ring
Material Details
- Tip: PPS plastic (chemical resistant)
- Body: 304 stainless steel
- Cable: FEP-insulated triaxial
Critical Installation Notes
Use only with 5m Proximitor sensors. Tighten to max 15.2 N•m. Keep cable bends gentle (>1″ radius). Avoid below -34°C to protect seal. Connect with finger-tight force (0.565 N•m max).
What You Receive
- Probe with 5m cable
- Optional COO certificate
- 12-month warranty
Fast Worldwide Delivery
FedEx | UPS | DHL – Ships same day from USA
Common Questions
Q: Can I use with 1m Proximitor?
A: No! Only compatible with 5m Proximitor sensors (e.g., 330180-51-00)
Q: Minimum bend radius?
A: 25.4mm (1 inch) – tighter bends damage cable
Q: Saltwater resistant?
A: Yes! 304 stainless steel case prevents corrosion
Q: Pressure rating?
A: No factory test. Contact us for sealed versions
