Product details

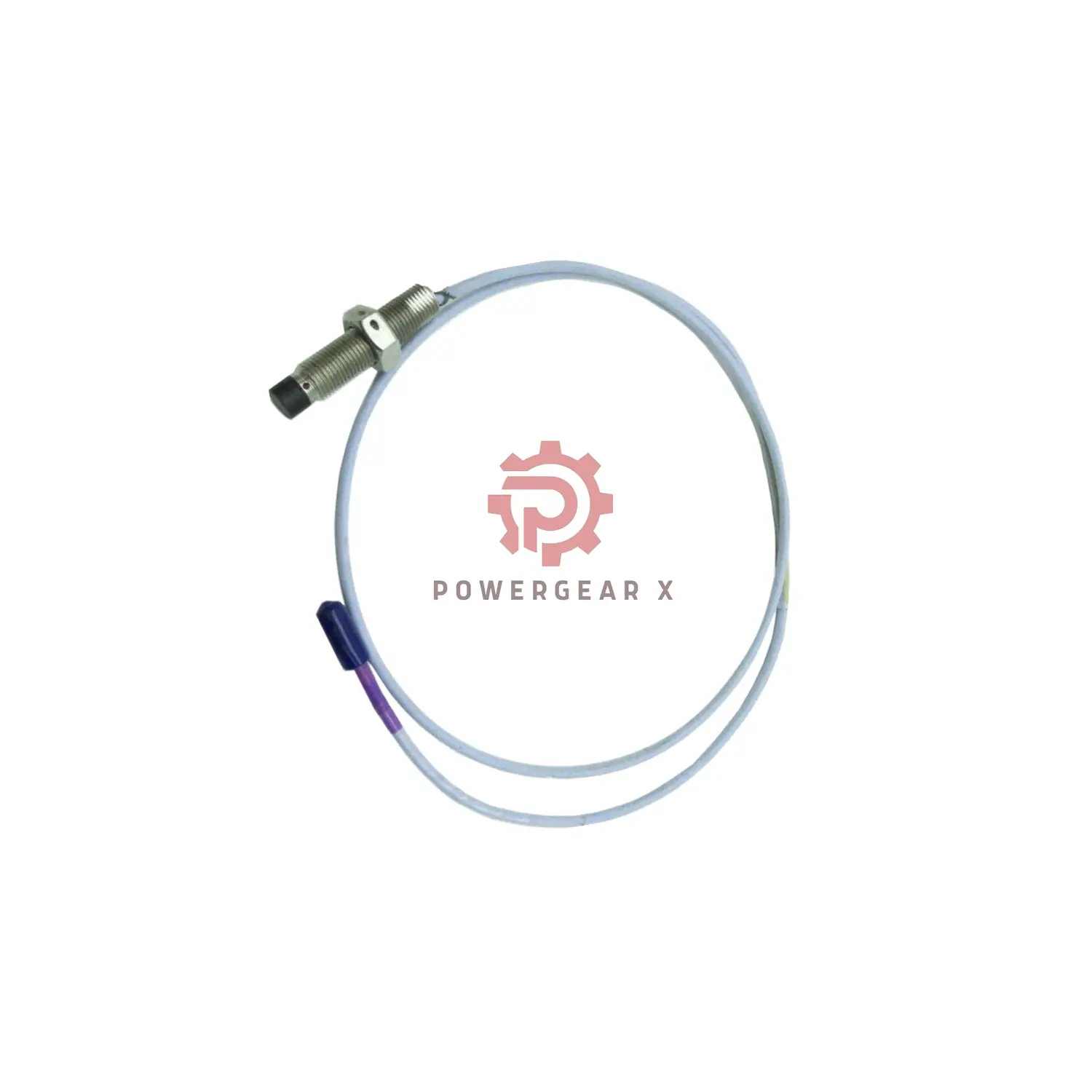

Bently Nevada 5-Meter Certified Vibration Probe
Precision 11mm sensor with industry certifications. Made in USA. Ships globally via FedEx/UPS/DHL. Includes 12-month warranty.
Technical Specifications
- Product Code: 330701-00-10-50-01-05
- Cable Length: 5.0 meters (16.4 feet)
- Electrical Resistance: 7.2Ω ±0.8Ω
- Temperature Range: -51°C to +177°C
- Case Length: 1.0 inch
- Thread Size: 1/2-20 UNF
- Min Bend Radius: 25.4mm (1.0 inch)
- Shipping Weight: 0.17 kg
Product Code Analysis
- 330701 – Base product number
- 00 – Unthreaded length: 0 inches
- 10 – Case length: 1.0 inch
- 50 – Cable length: 5.0 meters
- 01 – Connector: ClickLoc with protector
- 05 – Certifications: Multiple approvals
Installation Requirements
- Must be used with 5-meter Proximitor sensors
- Recommended torque: 15.2 N•m (133 in•lb)
- Maximum thread engagement: 0.750 inch
- Minimum cable bend: 25.4mm (1.0 inch)
- Do not expose to temperatures below -34°C
Compliance & Support
- Multiple agency approvals included
- 12-month warranty
- Global shipping services
Technical Questions
- Q: What systems is this probe compatible with?
A: Designed for 5-meter Proximitor systems - Q: Can I use this in explosive environments?
A: Yes, certifications cover hazardous locations - Q: What’s the difference between standard and FluidLoc cable?
A: Standard cable is for general use, FluidLoc has moisture protection - Q: Is pressure testing included?
A: No, contact us for custom pressure tests - Q: Can I cut the cable to shorter length?
A: No, cutting will damage the probe
