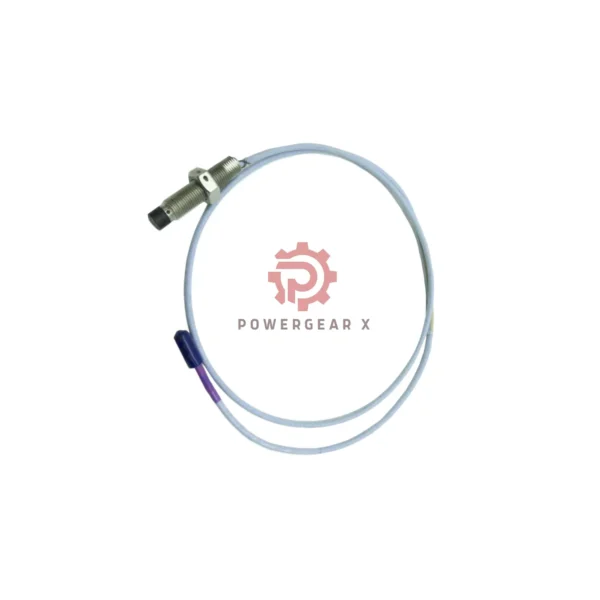

Bently Nevada 3300 XL 11mm Proximity Probe – Reliable Vibration Sensing

Precision-built for industrial machinery, the Bently Nevada 3300 XL probe (Model: 330701-00-10-10-12-00) delivers accurate vibration measurements with a 1.0-meter cable and stainless steel durability. Made in the USA.

Why Choose This Probe?

• 11mm PPS tip – Resistant to wear and chemicals.
• 1/2-20 UNF thread – Easy installation in tight spaces.
• 1.0-inch case length – Compact for confined areas.
• FluidLoc cable – Handles oils, water, and dust.
• Wide temperature range (–51°C to +177°C).

Complete Suffix Breakdown

• 330701 – Base model
• 00 – 0″ unthreaded length
• 10 – 1.0″ case length
• 10 – 1.0m cable
• 12 – ClickLoc connector + FluidLoc cable
• 00 – No agency approvals needed

Key Technical Specs

• Resistance: 5.9Ω ±0.5 (center to outer conductor)
• Thread torque: Max 45.2 N•m (400 in•lb) | Recommended 15.2 N•m (133 in•lb)
• Cable bend radius: ≥25.4mm (1.0″)
• Pressure seal: Viton O-ring (not pre-tested)
• Weight: 0.17 kg

Shipping & Support

• Fast global delivery: FedEx, UPS, DHL
• 12-month warranty – Defect-free guarantee

5 New FAQs

• Q: Can this probe measure shaft displacement?
  A: Yes, it’s designed for vibration and position monitoring.
• Q: Is the cable oil-resistant?
  A: Yes, FluidLoc cable resists oils and fluids.
• Q: What’s the difference between 00 and 05 suffix?
  A: 00 = no approvals; 05 = multiple certifications.
• Q: Can I use this in high-pressure environments?
  A: Contact us for custom pressure testing.
• Q: Does it work with non-Bently monitors?
  A: Compatible with most 75Ω triaxial systems.
