Product details

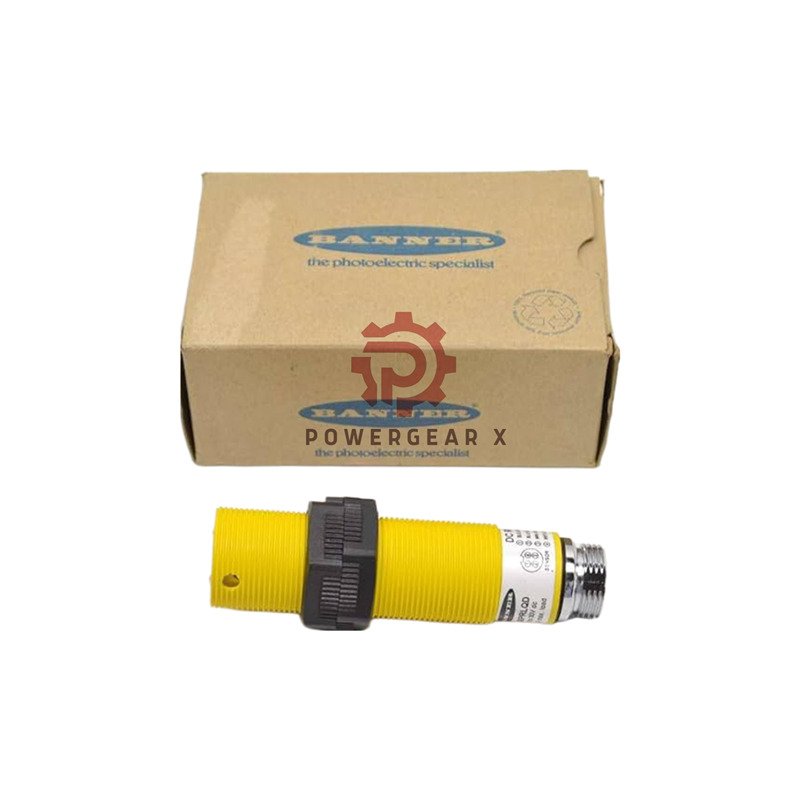

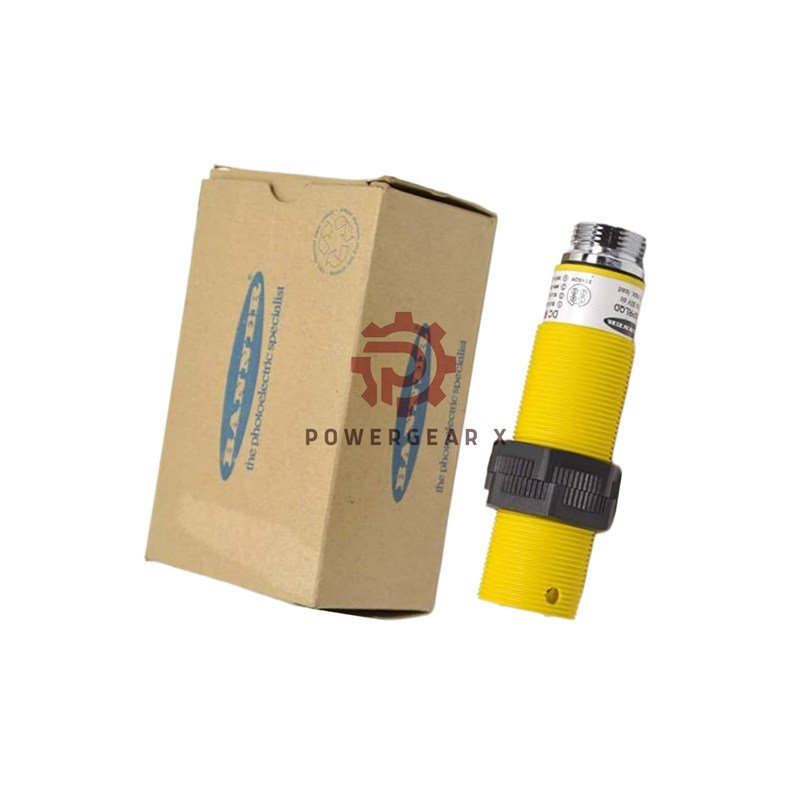

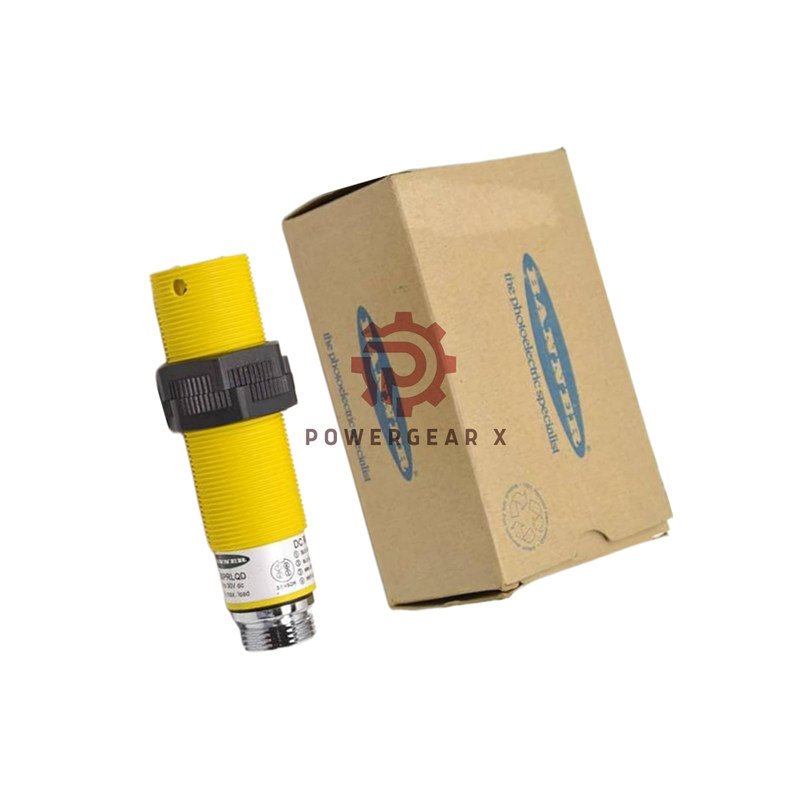

Banner Engineering SM30PRLQD | Photoelectric Sensor Receiver 150m | NPN/PNP | QD
Author: Powergear X Automation
The Banner Engineering SM30PRLQD is a high-performance photoelectric receiver sensor designed for long-range applications up to 150 meters. It delivers reliable infrared detection and supports both NPN and PNP outputs, ensuring flexibility for automation systems. Built for durability, this sensor performs in demanding industrial environments.
Key Product Highlights
- Type: Photoelectric Sensor – Receiver
- Sensing Mode: Opposed (Infrared LED)
- Sensing Distance: 150 m (Max)
- Output Type: Bipolar (NPN & PNP)
- Connection: Integral Quick Disconnect (7/8 in. Mini)
- Housing Material: Thermoplastic Barrel, 30 mm diameter
- Lens Material: Acrylic
- Operation: Light/Dark Operate
Technical Specifications
- Supply Voltage: 10–30 VDC
- Output Response Time: 10 ms
- Repeatability: 1000 µs
- Operating Temperature: -40°C to +70°C
- Relative Humidity: 90% @ 50°C
- Ingress Protection: IP67 / NEMA 4X
- Weight: Approx. 300 g
- Indicator LEDs: Yes (Status & Alignment)
Performance & Design Advantages
- Reliable infrared beam for long-distance object detection
- Encapsulated construction for vibration and moisture protection
- Dual NPN/PNP output for flexible wiring
- Compact, rugged housing ideal for harsh industrial environments
- Fast setup and connection with Quick Disconnect (QD)
Environmental & Safety Features
- IP67 protection ensures water and dust resistance
- Temperature range supports cold and high-heat conditions
- Encapsulated body resists mechanical impact
- No hazardous or chemical-resistant certification required
Warranty & Shipping
- Warranty: 12 Months
- Shipping available via FedEx, UPS, DHL
- Each unit tested and certified before dispatch
Professional FAQs
Q1: Can the Banner SM30PRLQD operate in outdoor conditions?
A: Yes, with IP67 and NEMA 4X ratings, it handles dust and water exposure but should be shielded from direct sunlight for stable operation.
Q2: What makes this model suitable for long-range detection?
A: It uses a powerful infrared LED beam and opposed sensing mode, achieving up to 150 meters of precise detection.
Q3: How do I connect the sensor?
A: The integral Quick Disconnect (QD) allows simple plug-and-play wiring using a 4-pin connector.
Q4: Can it be used in systems with both NPN and PNP logic?
A: Yes, it includes bipolar outputs for seamless integration with either system type.
Q5: How often should the lens be maintained?
A: Clean the acrylic lens periodically with a soft cloth to maintain clear optical transmission, especially in dusty environments.
