Schneider Altivar Process Drive: Advanced Control

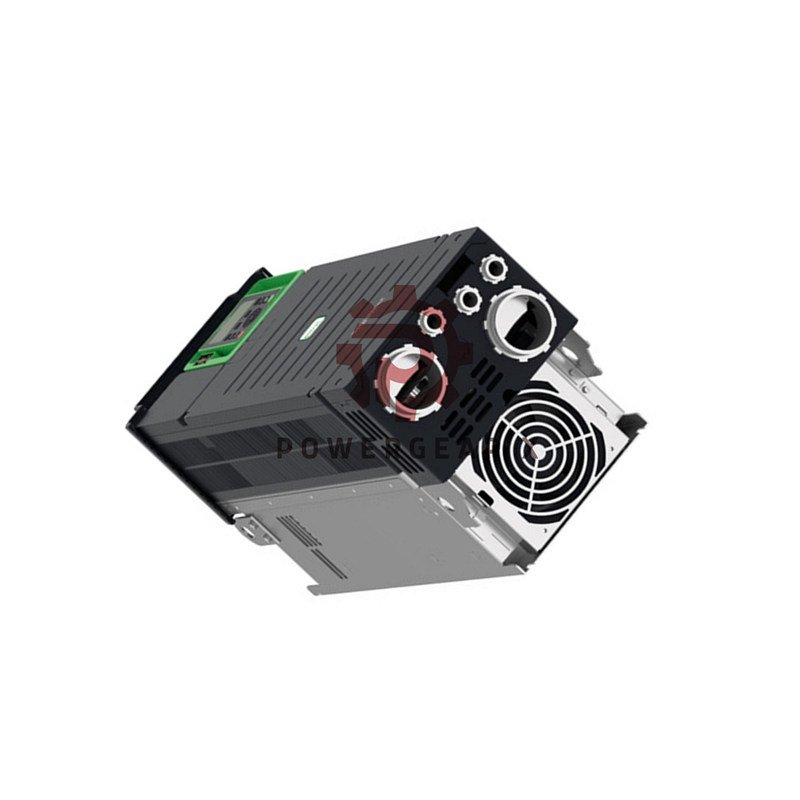

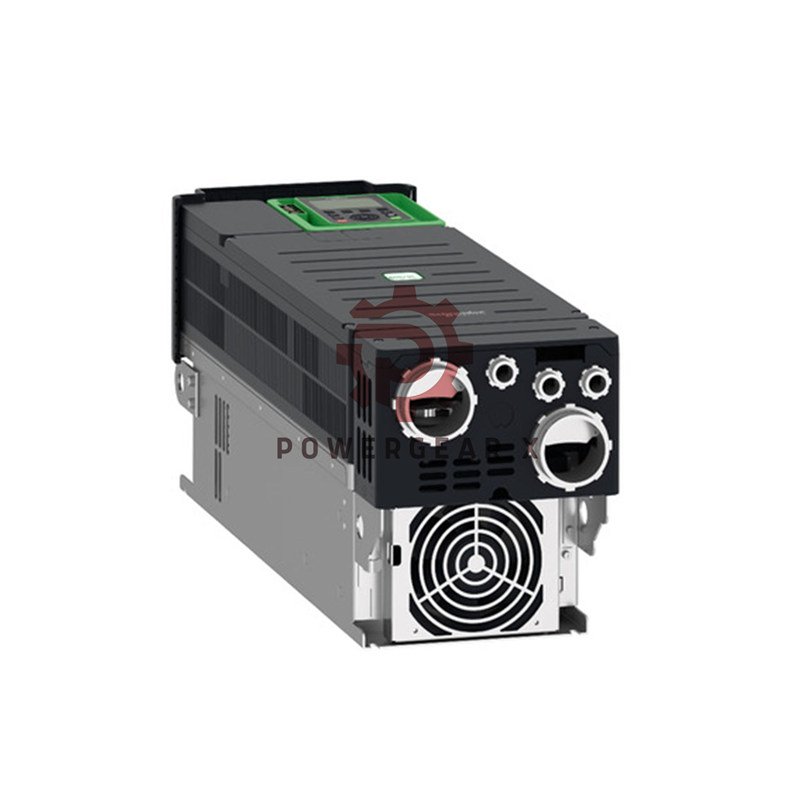

The Schneider Electric ATV930D37N4 provides superior motor control for industrial processes. This powerful drive handles 37kW applications with precision. It ensures reliable performance in demanding environments. For expert advice, contact sales@powergearx.com or +86 18030005825.
Core Specifications
- Model: ATV930D37N4
- Power Rating: 37 kW / 50 HP normal duty
- Voltage Range: 400-480V 3-phase
- Output Current: 74.5A at 4kHz switching
- Protection Rating: IP21 / UL Type 1
- Dimensions: 226 x 673 x 271 mm
- Weight: 28.2 kg
Premium Features
- Integrated braking chopper included
- Multiple communication protocol support
- Adjustable switching frequency 2-16kHz
- Safe Torque Off (STO) safety function
- Three expansion slots for modules
- EMC filter integrated as standard
Communication & Control
- Protocols: Modbus TCP, EtherNet/IP, PROFIBUS
- Digital Inputs: 10 programmable channels
- Analog Inputs: 3 configurable channels
- Relay Outputs: 3 configurable relays
- Encoder Support: Multiple interface options
Environmental Performance
- Operating Temp: -15°C to +50°C
- Altitude: 1000m without derating
- Humidity: 5-95% non-condensing
- Vibration: 1.5mm at 2-13Hz
- Certifications: CE, UL, CSA, TÜV
Service & Delivery
- 12-month manufacturer warranty
- Express global shipping available
- Carriers: FedEx, UPS, DHL
- Technical documentation included
- Professional support team
Technical FAQ
What safety functions are included?
The drive features Safe Torque Off (STO) and Safe Stop 1 (SS1) for operator protection.
Can I add communication modules?
Yes, three expansion slots support various communication and I/O modules.
What is the heavy duty rating?
For heavy duty applications, the rating is 30kW with 61.5A output current.
Does it support synchronous motors?
Yes, it controls both asynchronous and synchronous motor types.
What cooling method is required?
It uses natural convection cooling with 240 m³/h air flow.
