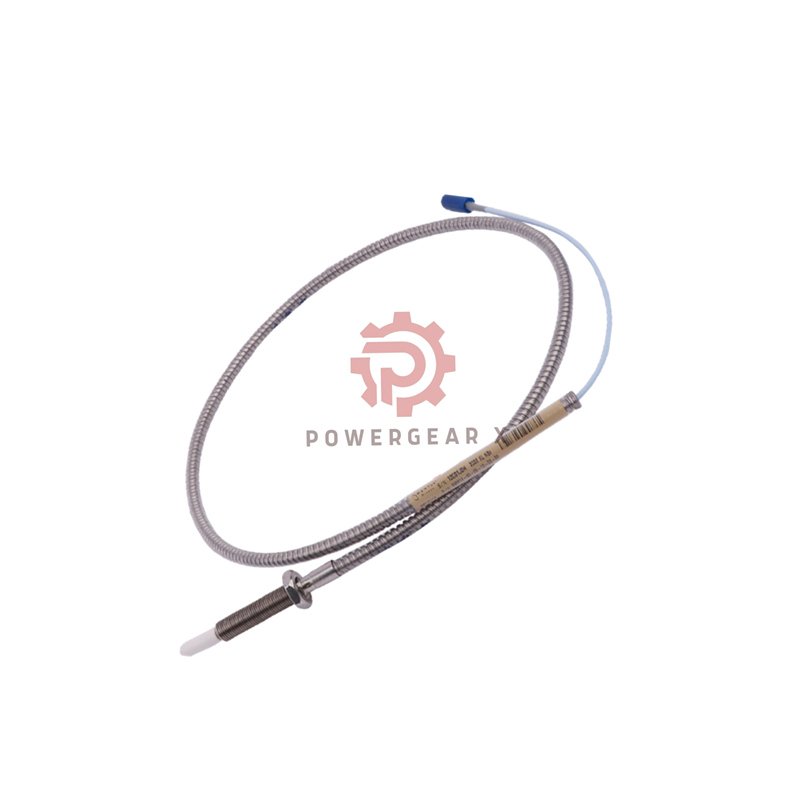

Armored Bently Nevada 330902-00-40-10-01-05 Probe | 3300 NSv Series

Precision Protection for Your Machinery

This is the Bently Nevada 330902-00-40-10-01-05. It is a heavy-duty 3300 NSv Proximity Probe. It has a strong armored body. This protects the sensor in tough spots. It gives exact vibration and position data. The probe helps avoid machine breakdowns. It is perfect for critical monitoring jobs. Made in the USA for top quality.

Detailed Product Configuration

• Core Model: 330902 – 3300 NSv Probe, 1/4-28 UNF Thread, With Armor
• Full Part Number Breakdown:
  • 330902 : Base Model (Armored)
  • 00 : Unthreaded Length = 0.0 in
  • 40 : Case Length = 4.0 in
  • 10 : Cable Length = 1.0 meter (39 in)
  • 01 : Connector = ClickLoc with Protector
  • 05 : Agency Approval = Multiple Approvals

Key Technical Data & Specs

• Electrical:
  • DC Probe Resistance (1.0m): 4.2 ± 0.5 ohms
  • Cable Type: 75 Ω Coaxial, FEP Insulated
• Mechanical:
  • Case Material: AISI304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Thread: 1/4-28 UNF
  • Max Thread Engagement: 0.375 inches
• Torque Settings (1/4-28 Thread):
  • Maximum Rated: 7.3 N•m (65 in•lb)
  • Recommended: 5.1 N•m (45 in•lb)
• Environmental Ratings:
  • Operating Temperature: -52°C to +177°C
  • Seal: Viton O-ring (Not pressure tested pre-shipment)
  • Note: Keep above -34°C for long-term seal life.

Expert FAQ & Selection Guide

What does “with armor” mean for this 330902 probe?

It has a reinforced metal jacket. This armor protects the probe body. It is for high-vibration or risky locations. It guards against physical damage.

Why is the case length 4.0 inches important?

The longer case helps with deep mounting. It secures the probe in thick machine walls. It provides better stability in the mounting hole.

What are “Multiple Approvals” (Option 05)?

This probe meets many international safety standards. It is for use in regulated plants. This includes potentially explosive areas.

How do I protect the cable connector?

Option “01” includes a connector protector. This plastic cap snaps on. It protects the pins during handling and install.

My application has high humidity. Is this probe OK?

Yes. The FEP cable and sealed design resist moisture. The stainless steel case also prevents rust.

Quick Buying Guide

• Choose this 330902 armored model for extra physical protection.
• Pick the 1.0m cable for short runs from sensor to monitor.
• Use the recommended 5.1 N•m torque for safe installation.
• Your order includes a 12-month warranty.
• We ship worldwide via FedEx, UPS, and DHL.

Need a custom length or have technical questions? Our engineers can help. Contact us: sales@powergearx.com or +86 18030005825 (WhatsApp).
