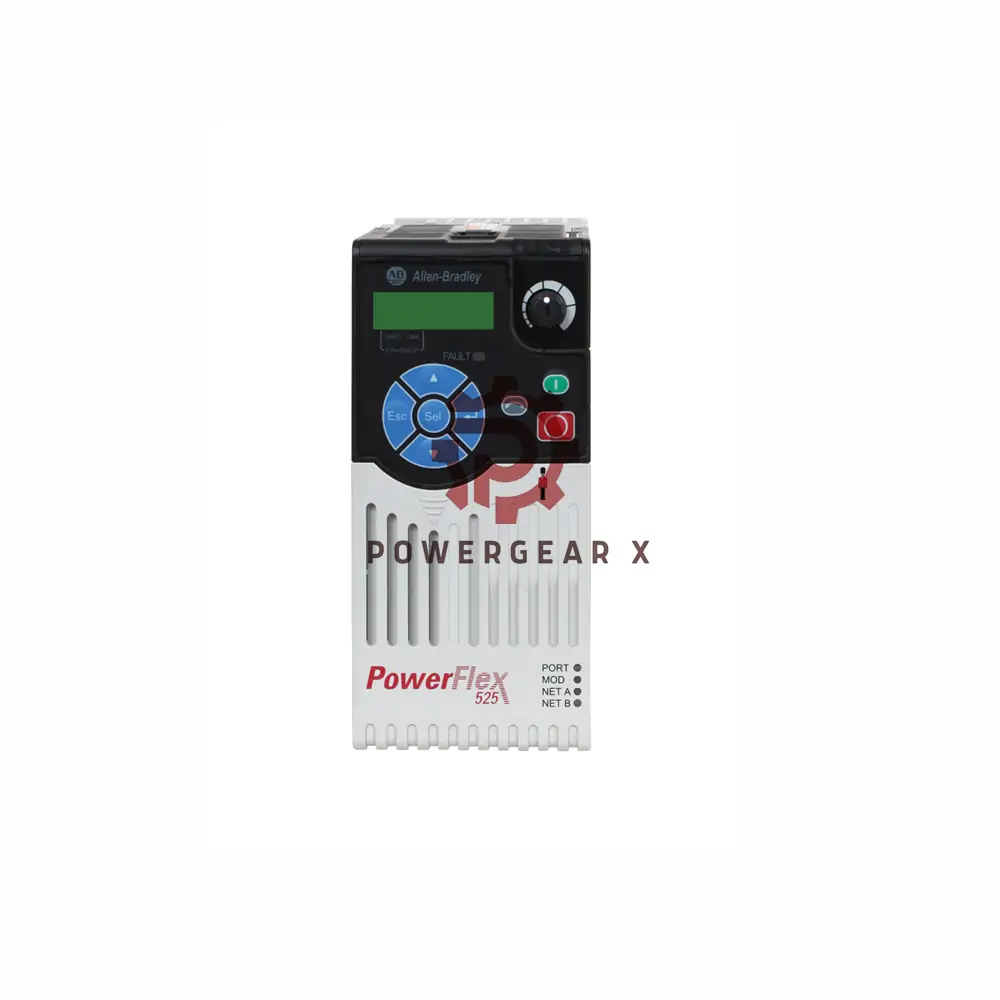

Allen-Bradley PowerFlex 525 Drive 25B-V6P0N104 – 1.5HP

Allen-Bradley PowerFlex 525 Drive: 25B-V6P0N104 | Precision Motor Control Made Simple

Download full product manual: PowerFlex 520 Series AC Drive Manual (PDF)

Product Description

The Allen-Bradley 25B-V6P0N104 is a high-performance PowerFlex 525 adjustable frequency AC drive. Engineered for industrial precision, it delivers advanced motor control for pumps, conveyors, and machinery. With Ethernet/IP connectivity and sensorless vector control, it optimizes energy efficiency while enabling smooth speed/torque regulation.

Technical Specifications

• Brand: Allen-Bradley/Rockwell Automation
• Model: 25B-V6P0N104
• Input: 100-120VAC 1-phase | 3.2A
• Output: 0-230VAC 3-phase | 6.0A
• Power: 1.5 HP / 1.1 kW (Heavy Duty)
• Frequency Range: 0-500 Hz
• Control Resolution: 0.01 Hz
• Temp Range: -40°C to 85°C storage
• Enclosure: IP20/NEMA Open
• EMC Filter: Not included (external recommended)

Installation & Compatibility

• Panel-mount design (Frame B)
• Dimensions: 7.09″ H x 3.43″ W x 6.77″ D
• Works with: CompactLogix, ControlLogix, GuardLogix
• I/O Ports: 6 digital inputs, 2 analog inputs, 2 relay outputs

Diagnostics & Maintenance

• Real-time motor parameter monitoring
• Fault code display via HIM module
• Auto-tuning for quick setup
• Point stop positioning without encoder

Package Includes

• PowerFlex 525 Drive Unit (25B-V6P0N104)
• Standard Human Interface Module (HIM)
• Mounting hardware
• Quick-start guide

Warranty & Shipping

• 12-month warranty
• Global delivery via FedEx, UPS, DHL

FAQ

• Q: Does this support 3-phase input?
  A: No, requires single-phase 120VAC input
• Q: Can it control servo motors?
  A: Yes, via Permanent Magnet Motor Control
• Q: Is Ethernet built-in?
  A: Yes, integrated Ethernet/IP port
• Q: Braking resistor included?
  A: Built-in IGBT braking, external resistor not included
