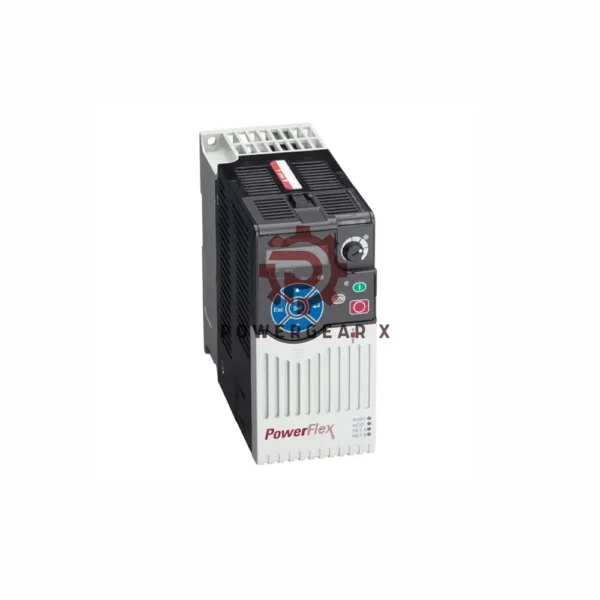

Allen-Bradley PowerFlex 525 25B-D024N114 15HP Drive | 480V VFD

Allen-Bradley PowerFlex 525 25B-D024N114 | Premium 15HP Drive with Smart Control & Built-in Safety

Core Specifications

• Power Rating: 15 HP / 11 kW (Normal & Heavy Duty)
• Voltage Range: 323-528V AC Input | 0-460V Output
• Current Output: 24 Amperes continuous
• Frequency Control: 0-500 Hz programmable range
• Control Modes: V/Hz, Sensorless Vector, PM Motor

Technical Details

• Brand: Allen-Bradley (Rockwell Automation)
• Model/Series: 25B-D024N114 | PowerFlex 525
• Resolution: 10-bit analog precision
• Temperature Range: -20°C to 50°C (Operational)
• Environmental: IP20/NEMA Open | 1000m altitude rating
• Anti-Interference: EMC filtering options
• Response Time: ±0.05% frequency accuracy

Installation & Compatibility

• Mounting: Panel mount (Frame Size D)
• Works With: CompactLogix, ControlLogix, GuardLogix
• Communication: Built-in EtherNet/IP + RS485
• Optional Protocols: ProfiBus, DeviceNet, Dual-Ethernet

Setup & Maintenance

• Easy Configuration: LCD HIM + USB programming
• Embedded I/O: 7 digital inputs + 2 analog inputs
• Auto-Detection: Studio 5000 Logix Designer profiles
• Diagnostics: Real-time fault display on HIM

Certification & Support

• Safety Certified: Safe-Torque Off (STO) functionality
• Warranty: 12 months manufacturer coverage
• Compliance: IEC 60721 3C2 conformal coating

Packaging & Shipping

• Includes: Drive unit, HIM module
• Global Delivery: FedEx, UPS, DHL (2-5 business days)

Smart Diagnostics

• Fault history tracking
• Motor performance monitoring
• I/O status indicators
• Network health checks

Frequently Asked Questions

• Q: What input voltage is required?
  A: Three-phase 323-528V AC only
• Q: Is encoder support included?
  A: Optional encoder card compatible
• Q: Can I daisy-chain Ethernet connections?
  A: Yes with dual-port adapter (sold separately)
