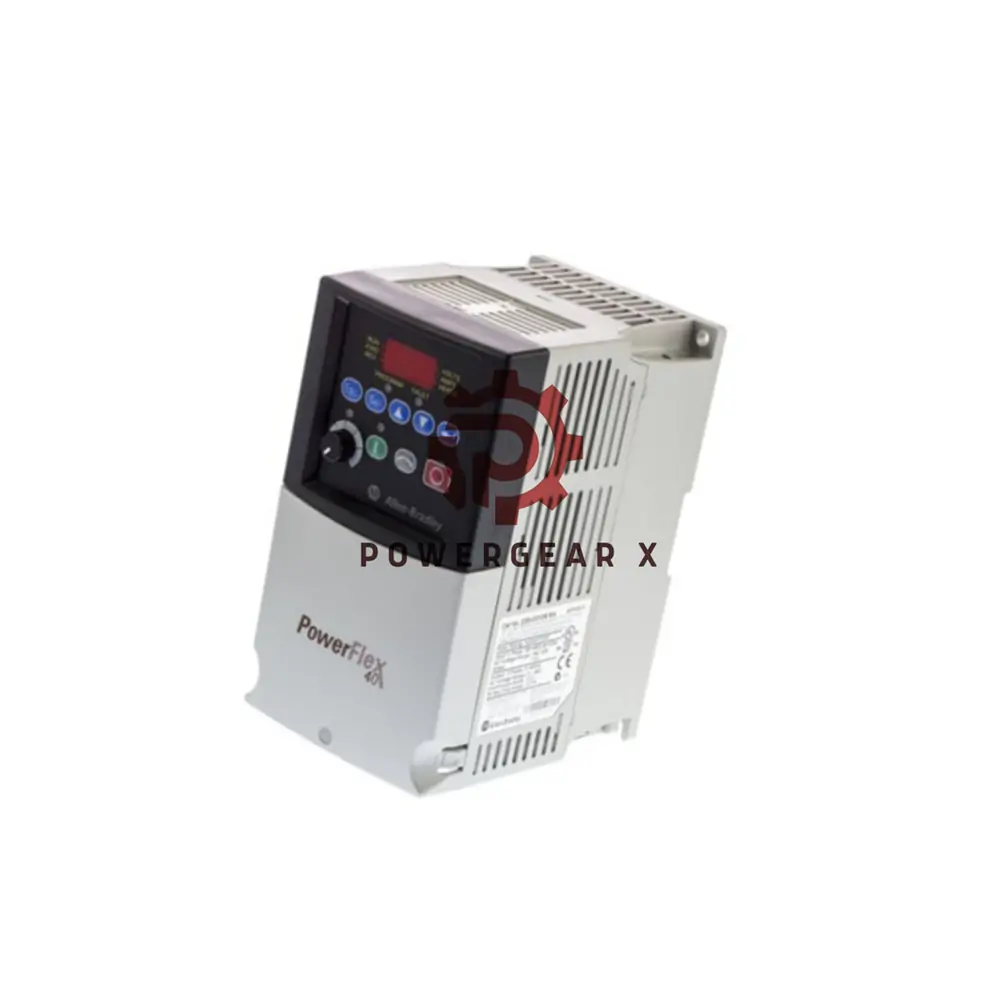

Allen-Bradley PowerFlex 40P | AC Drive 22D-B017N104

Overview:

The 22D-B017N104 is an adjustable frequency drive from the Allen-Bradley PowerFlex 40P series by Rockwell Automation. With a compact design, this drive offers an efficient solution for speed control applications. It is rated for 240 Volts AC, 3-phase input power and can handle up to 17.5 Amps of output current. The drive delivers 5 Horsepower (3.7 kW) of output power, making it ideal for medium-duty applications such as conveyors, packaging machines, and spinning machines. The unit comes with an open NEMA Type IP20 enclosure and is designed for easy integration and reliable operation.

Technical Specifications:

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 22D-B017N104
• Product Line: PowerFlex 40P
• Frame Size: B
• Output Current: 17.5 Amps
• Input Voltage: 240 Volts AC (3-phase)
• Horsepower Rating: 5 HP (3.7 kW)
• Frequency: 50/60 Hz
• Enclosure Rating: Open NEMA Type (IP20)
• Filter: No CE Compliant Filter
• Weight: 1.905 kg
• Ordering Information: 22D-B017N104 – PowerFlex 40P Drive, Frame Size B
• Type: Standard

Check official datasheet for more detailed information: PowerFlex 40P
