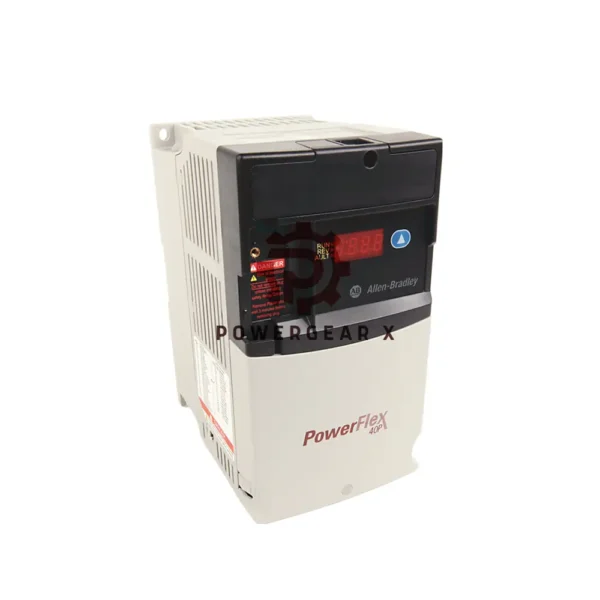

Allen-Bradley PowerFlex 40P 22D-B012N104 AC Drive

Overview

The Allen-Bradley PowerFlex 40P 22D-B012N104 drive offers a versatile solution for industrial motor control. This adjustable frequency drive is designed for three-phase AC input at 240V and delivers a maximum output of 3 horsepower (2.2 kW). It is part of the PowerFlex 40P series, which is known for its robust features such as high torque, precise speed regulation, and dynamic braking capability. Furthermore, it includes protection mechanisms like motor overload and ground fault protection to ensure reliable operation.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 22D-B012N104
• Series: PowerFlex 40P
• Frame Size: B
• Enclosure Type: Open NEMA Type – Panel Mount (IP20)
• Amperage: 12.0 A
• Input Power: 240 Volts AC
• Horsepower: 3 HP (2.2 kW)
• Filter: No CE Compliant Filter
• Phase: Three-Phase
• Operating Voltage: 240 Volts AC
• Relay Pre-Charge: Limits inrush current
• Dynamic Braking: Integral brake resistor
• Protection: 6000V transient protection
• Motor Overload Protection: Yes
• Ground Fault Protection: Yes

Ordering Information

• Part Number: 22D-B012N104
• Frame Size: B
• Amperage: 12A
• Input Voltage: 240V AC
• Horsepower: 3 HP
• Enclosure Type: Open NEMA Type (IP20)

Check official datasheet for more detailed information: PowerFlex 40P
