Product details

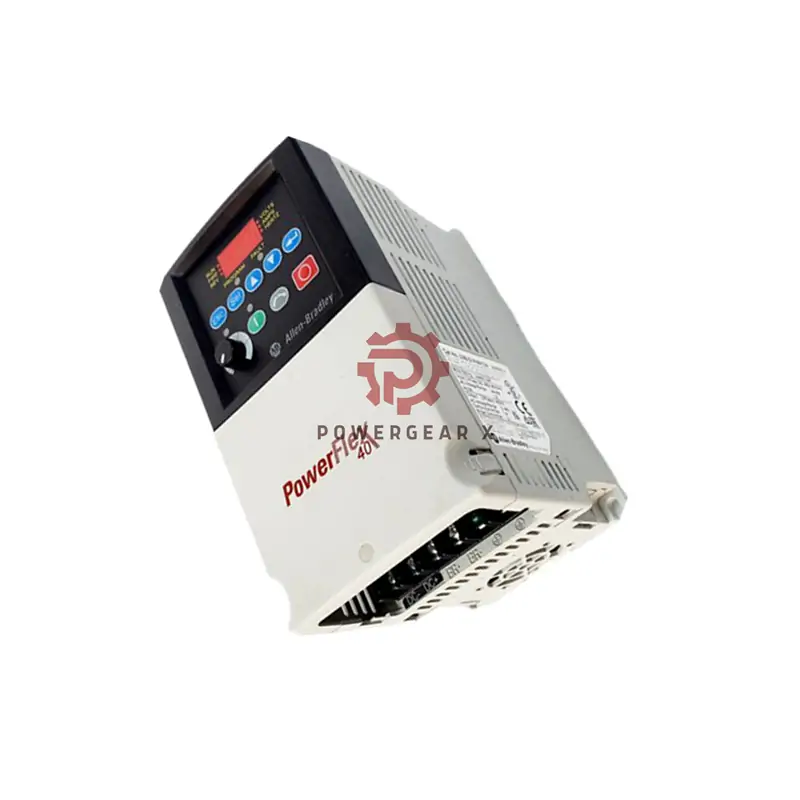

Allen-Bradley PowerFlex 40 22B-B5P0H204 Drive – Compact 1HP Motor Control
The Allen-Bradley 22B-B5P0H204 delivers precise speed control for your 1HP motors. With 240V 3-phase input and 5A output, this space-saving drive fits where others can’t. Its IP20 open chassis design makes it perfect for control panels.
Complete Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 22B-B5P0H204
- Power: 1HP (0.75kW) output
- Input: 200-240V AC, 3-phase, 50/60Hz
- Output: 5A continuous
- Enclosure: IP20 (Open plate drive)
- Dimensions: Compact plate-mounted design
- Temperature: Works from 32°F to 140°F (0°C to 60°C)
- Protocols: Supports EtherNet/IP, DeviceNet, ControlNet
- Shipping: FedEx, UPS, DHL available
- Warranty: 12 months protection
Professional FAQs
- Q: Can I mount this without a heatsink?
- A: Yes, it’s designed for plate mounting without additional cooling
- Q: Does it work with single-phase input?
- A: No, 3-phase power required
- Q: How do I connect to networks?
- A: Use RS-485 or add optional communication cards
- Q: What’s the minimum motor size?
- A: Works best with 0.5HP motors and up
- Q: Can I use it for a fan application?
- A: Yes, perfect for small fans and pumps
Get Your Resources
Download the installation manual here for wiring diagrams and setup guides.
Compare Similar Drives
- 22D-D024N104 – 2HP, 480V version
- 22D-D1P4F104 – 1.5HP, enclosed design
