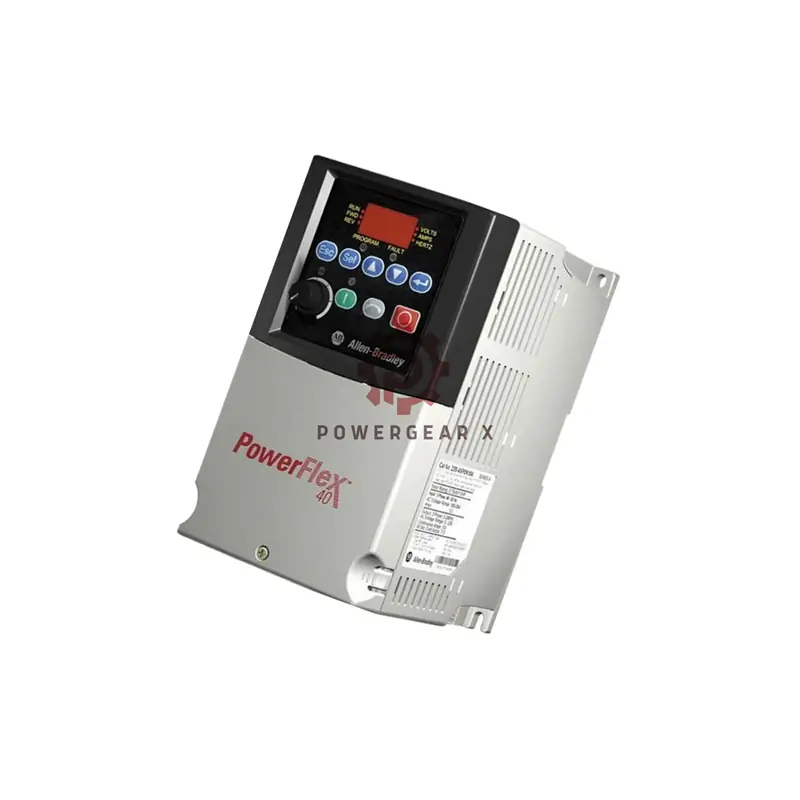

Allen-Bradley 22B-B012N104 PowerFlex 40 Drive

22B-B012N104 boosts industrial efficiency. This 3HP drive saves energy with smart torque control. Handles heavy loads smoothly.

Core Specifications

• Model: 22B-B012N104
• Power: 3 HP / 2.2 kW
• Voltage: 240V AC 3-phase
• Current: 12.0A output
• Efficiency: 97% operation

Heavy-Duty Performance

• Torque Master: High torque at low speeds
• Energy Saver: 30% less power consumption
• Cooling: 125W total power loss
• Frequency: 0-400 Hz range

Installation & Protection

• DIN rail or panel mounting
• Critical: Use 25A fuses (140M-C2E-C16)
• IP20 enclosure rating
• Temp range: -10°C to 50°C

Support & Delivery

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL
• UPC: 820919078491

Industrial FAQs

• Q: Can it lift heavy loads?
  A: Yes – high torque at low speeds
• Q: Energy saving features?
  A: Smart ramp control cuts usage 30%
• Q: Communication options?
  A: RS485 + optional Ethernet/IP
• Q: Humidity limits?
  A: 0-95% non-condensing
• Q: Carrier frequency range?
  A: 2-16 kHz adjustable
