Allen-Bradley Drive 25B-D037N114 25HP 480V AC Drive

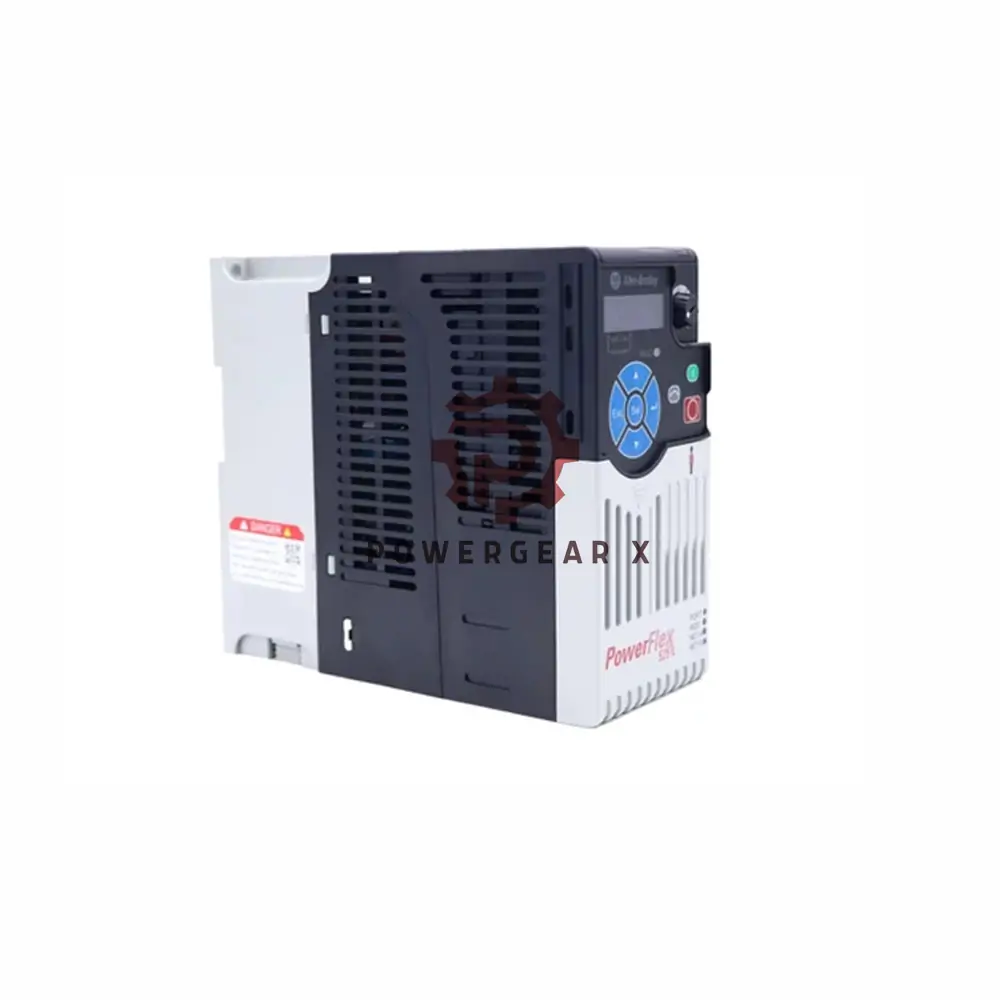

Allen-Bradley PowerFlex 525: Advanced 25HP AC Drive (25B-D037N114)

Download product manual: Get Installation Guide Here

Technical Specifications

• Brand: Allen-Bradley
• Model: 25B-D037N114
• Input: 480V AC, 3-phase
• Output: 37A, 0-460V AC
• Power: 25HP (18.5kW) normal / 20HP (15kW) heavy-duty
• Frequency Response: 0.1-500 Hz
• Resolution: 0.01 Hz
• Temp Range: -10°C to 50°C
• Enclosure: IP20/NEMA Open (dust protected)
• Anti-Interference: EMC filtered

Installation

• Panel mount or DIN rail
• Zero stacking with 50mm airflow gap
• Weight: 2.3kg

Control & Monitoring

• 7 digital inputs + 2 analog inputs
• Relay outputs + analog output
• LCD keypad for one-touch configuration
• Fault history logging

Compatibility

• 3-phase induction motors
• Rockwell Logix PAC systems
• Ethernet/IP, DeviceNet, Profibus

Certifications

• UL/cUL listed
• CE, RoHS compliant
• Safe Torque-Off (PLd/SIL2 Cat 3)

Package & Shipping

• Drive unit + terminal labels
• 12-month warranty
• FedEx/UPS/DHL shipping
• Free global shipping on orders >$500

Diagnostics

• Live voltage/current monitoring
• Thermal overload protection
• 5-error history buffer

FAQ

• Q: Is brake resistor supported?
  A: Yes, with integral brake IGBT
• Q: Can I network multiple drives?
  A: Yes via RS485 daisy-chaining
• Q: Keypad programmable?
  A: Full parameter control
