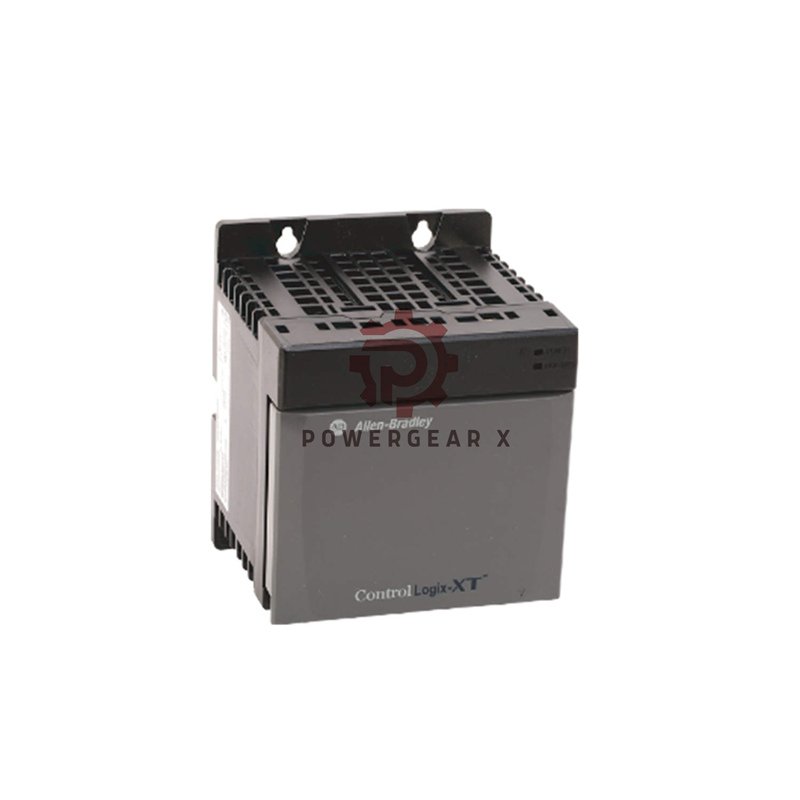

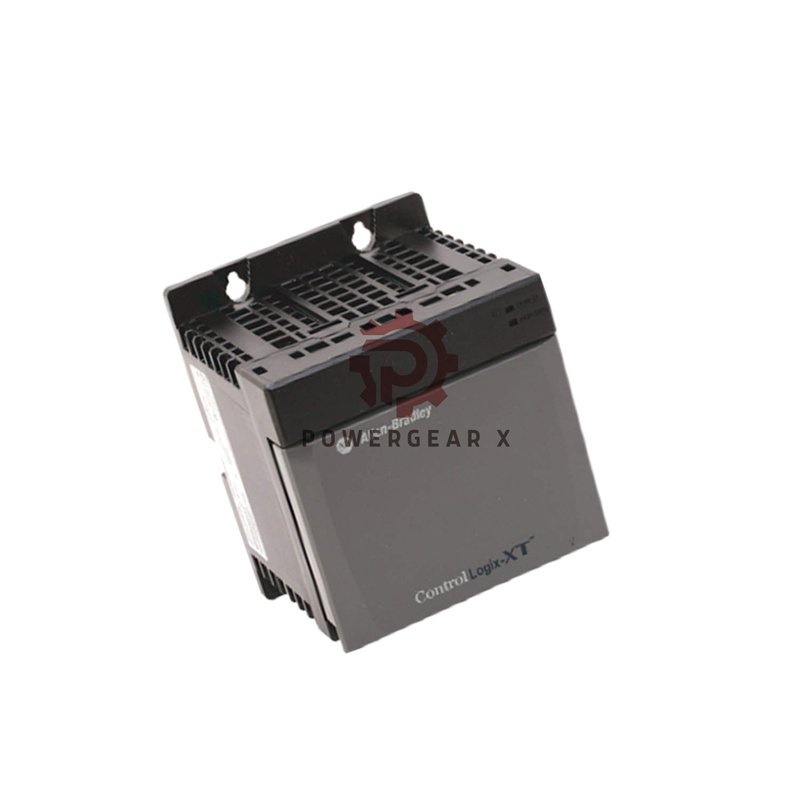

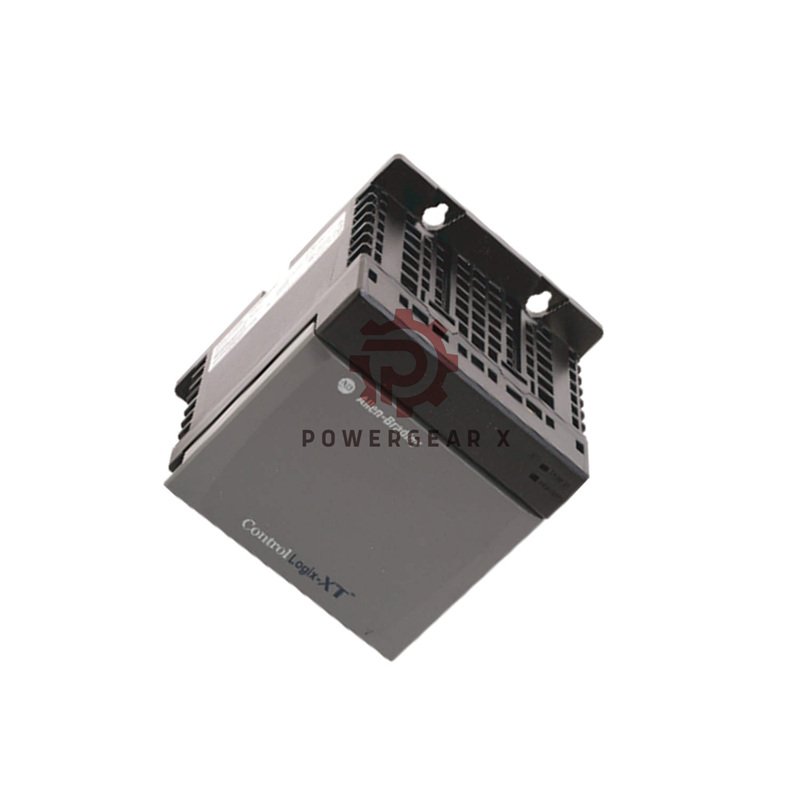

Allen-Bradley ControlLogix 1756-PAXTR AC Power Supply Module

Allen-Bradley 1756-PAXTR Redundant AC Power Supply | ControlLogix-XT Series

Technical Data

• Brand: Allen-Bradley
• Series: ControlLogix-XT
• Input Voltage: 120-240V AC
• Voltage Range: 85-265V AC
• Input Frequency: 47-63 Hz
• Input Power: 65 Watts (75 VA)
• Isolation Voltage: 250V continuous
• Operating Temperature: -25 to 70 °C (-13 to 158 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Relative Humidity: 5-95% non-condensing
• Altitude: Up to 2000 m (6560 ft)
• Immunity: High surge transient and conducted RF immunity
• Pollution Degree: 2
• Enclosure Rating: Minimum IP54 for Zone 2
• Weight: 3.2 lbs (1.45 kg)
• Dimensions: 6.9 x 5.7 x 5.4 in

Installation Guide

• Mount this module in any slot of a 1756 chassis.
• Use copper wire, 0.25–2.5 mm² (22-14 AWG).
• Torque terminal screws to 0.79 N-m (7 lb-in).
• Always disconnect power before servicing.
• Compatible with other Allen-Bradley ControlLogix power supplies.

Certifications and Packaging

• UL certified.
• ATEX / IECEx Zone 2 compliant.
• Package includes one power supply module.
• This product comes with a 12-month warranty.

Shipping Information

• We ship worldwide using FedEx, UPS, and DHL.
• Fast and reliable delivery is guaranteed.

Diagnostics and FAQ

• Q: Can this power supply operate alone?
• A: No, it is designed for redundant systems. You need two modules.
• Q: What is the operating temperature?
• A: It operates from -25°C to 70°C (-13°F to 158°F).
• Q: Is it safe for hazardous locations?
• A: Yes, when installed in a certified Zone 2 enclosure (min. IP54).
• Status indicators provide quick system health diagnostics.
