Allen-Bradley | Brand New AC Drive PowerFlex 40P 22D-D6P0F104

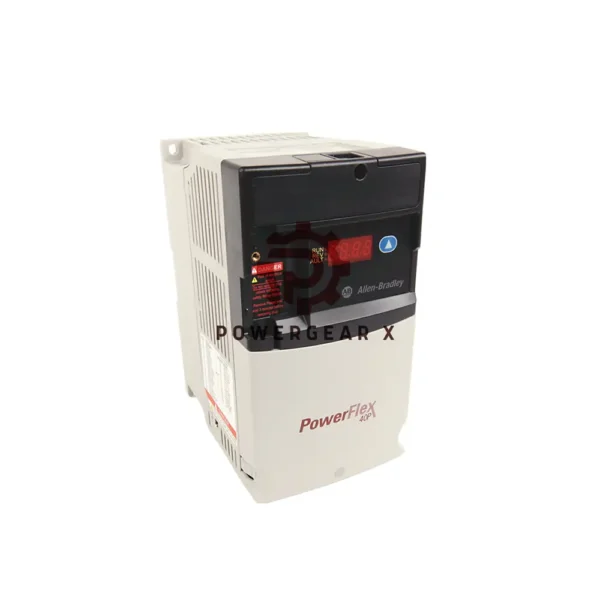

Allen-Bradley 22D-D6P0F104: Precision Power for Smart Machines

Compact Muscle for Motors

Master motor control with the 22D-D6P0F104. This 3 HP drive packs big features in Frame B. Perfect for tight spaces needing heavy-duty performance.

Power Specs

Brand: Allen-Bradley
Model: 22D-D6P0F104

Electrical:
– Input: 480V AC 3-phase (342-528V range)
– Output: 3 HP (2.2 kW), 6A
– Frequency: 0-500 Hz adjustable

Intelligent Control:
– 4 programmable acceleration/deceleration curves
– Position control with encoder feedback
– Motor thermal protection

Physical:
– Mount: Flange (saves 40% space)
– Enclosure: IP20 (no dust protection)
– Dimensions: 180 x 130 x 150mm

Plug & Play Setup

• ⚡ Ready in 10 minutes with quick-flange mount
• ⚡ 4-digit display shows setup instructions
• ⚡ One-touch reset after faults

Warranty & Shipping

12-month hassle-free warranty. Ships worldwide:

• FedEx (2-3 days)
• UPS (3-5 days)
• DHL (1-4 days)

Self-Diagnosis Pro

• Monitors voltage spikes (shuts off at 810V DC)
• Tracks motor vibration patterns
• Stores last 5 error codes

Expert Answers

Q: Does it work with single-phase power?
A: No – requires 3-phase 480V input.

Q: Can I add wireless control?
A: Yes! Use DSI Wireless Module (sold separately).

Q: Operating temperature limits?
A: -10°C to 50°C (14°F to 122°F).

Q: Encoder feedback supported?
A: Yes – for precise position control.

Q: CE certified without filters?
A: Yes – compliant out of box.
